19
2. Installation and Connections

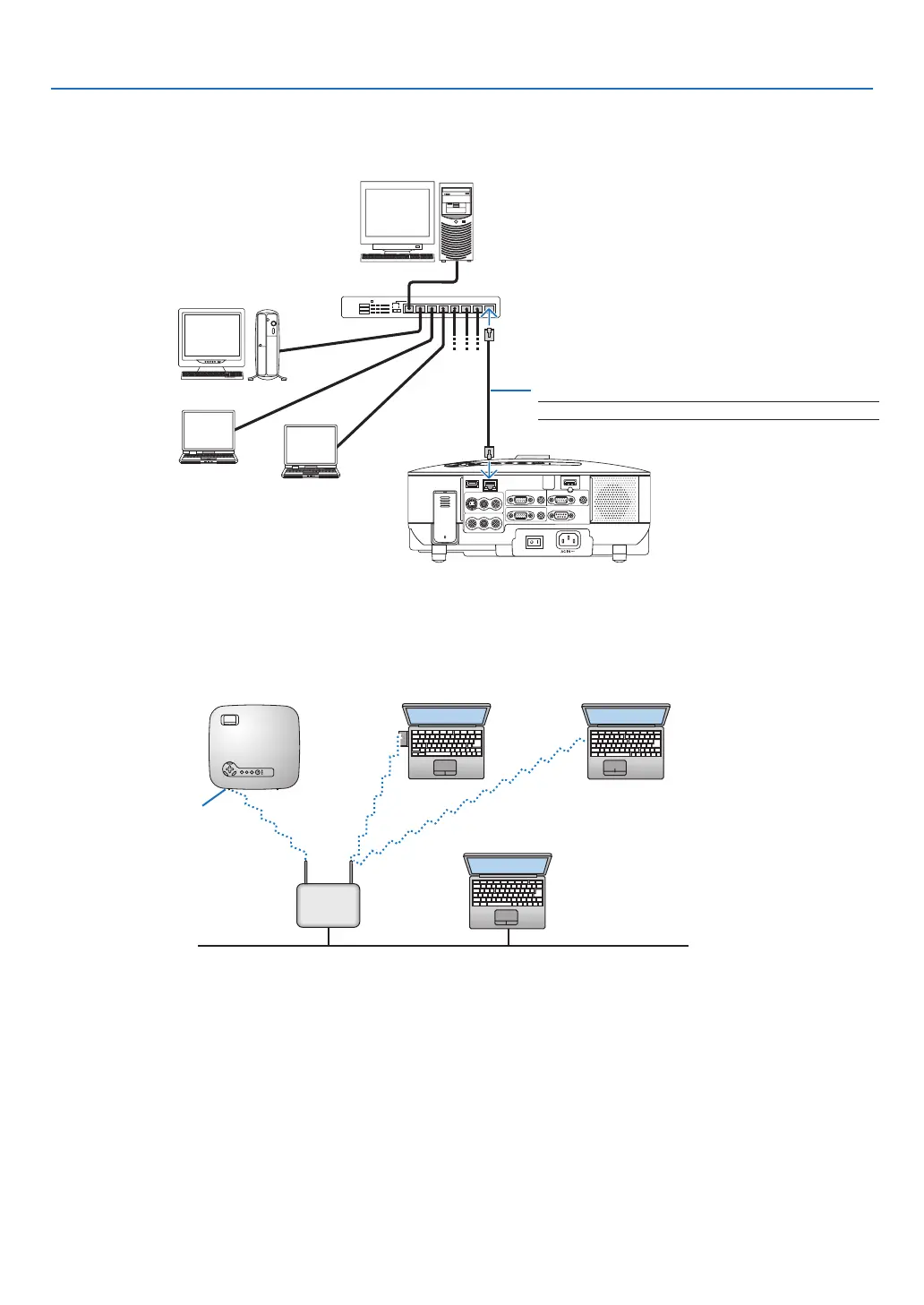

Example of LAN connection
(A) Example of wired LAN connection
LAN
WIREL ESS
WIREL ESS
USB
(
LAN
)
VIDEO IN
AUDIO IN
USB
LAN
AUDIO IN
HDMI IN
AUDIO IN
COMPUTER /
COMPONENT 2 IN
COMPUTER /
COMPONENT 1 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN
AUDIO IN
L/MONO
L/MONO
R
R
Server
Hub
(B) Example of wireless LAN connection
(Network Type
→
Infrastructure)
PC with wireless
LAN card inserted
PC with built-in wireless
LAN function
Wireless LAN
Wireless access point
USB Wireless LAN Unit
LAN cable (not supplied)
NOTE: Use a Category 5 or higher LAN cable.
To make connection with wireless LAN via a wireless access point, you need to select the Infrastructure mode.
From the menu, select [SETUP]
→
[INSTALLATION(2)]
→
[NETWORK SETTINGS]
→
[WIRELESS]
→
[AD-
VANCED]
→
[CONNECTION]
→
[NETWORK TYPE]
→
[INFRASTRUCTURE].
To Next Page
