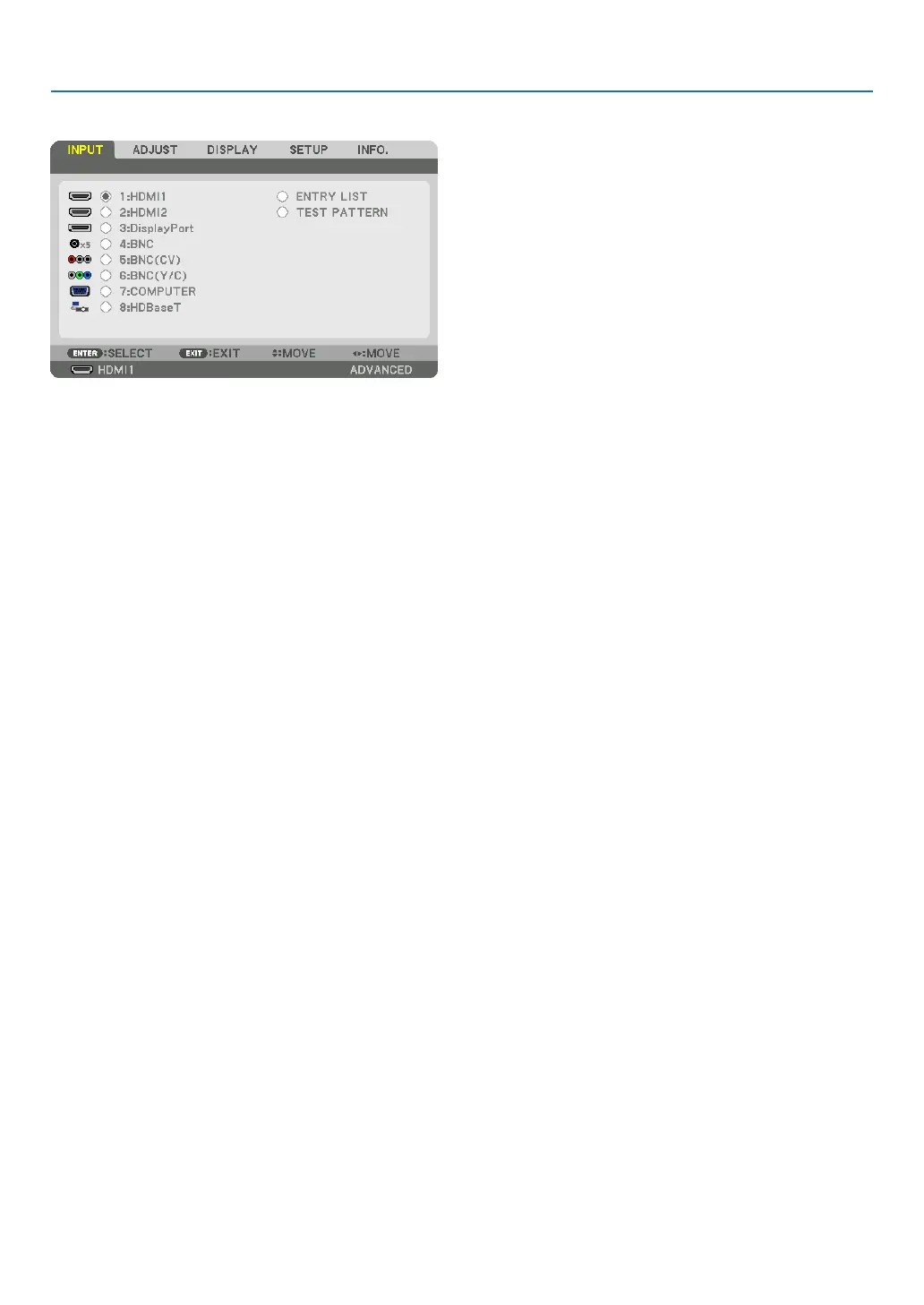

❹ Menu Descriptions & Functions [INPUT]

* ThisscreenbelongstoaHDBaseTmodel.

1:HDMI1

ThisprojectsthevideoofthedeviceconnectedtotheHDMI1INterminal.

2:HDMI2

ThisprojectsthevideoofthedeviceconnectedtotheHDMI2INterminal.

3:DisplayPort

ThisprojectsthevideoofthedeviceconnectedtotheDisplayPortinputterminal.

4:BNC

Thisprojectsthevideoofthedeviceconnectedtothevideoinputterminal.

(ThisprojectstheanalogRGBsignalorcomponentsignal.)

5:BNC(CV)

ThisprojectsthevideoofthedeviceconnectedtotheBNC(CV)videoinputterminal.

(Thisprojectsthecompositevideosignal.)

6:BNC(Y/C)

ThisprojectsthevideoofthedeviceconnectedtotheBNC(Y/C)videoinputterminal.

(ThisprojectstheS-videosignal.)

7:COMPUTER

Thisprojectsthevideoofthedeviceconnectedtothecomputervideoinputterminal.

(ThisprojectstheanalogRGBsignalorcomponentsignal.)

8:HDBaseT*

ProjectingtheHDBaseTorWIREDLANsignal.

8:ETHERNET*

Switchtothedatadisplaythatissentfromthenetwork.

9:USB-A*

Switchtothedatadisplay(viewerdisplay)oftheUSBmemorythathasbeensetupintheprojector.(→page225)

ENTRY LIST

Displaysalistofsignals.Seethefollowingpages.

TEST PATTERN

Closesthemenuandswitchestothetestpatternscreen.

*1 OnlyHDBaseTmodelswillbedisplayed.

*2 OnlyMMmodelswillbedisplayed.
