NEC PC-8201A - Page 194

APX B

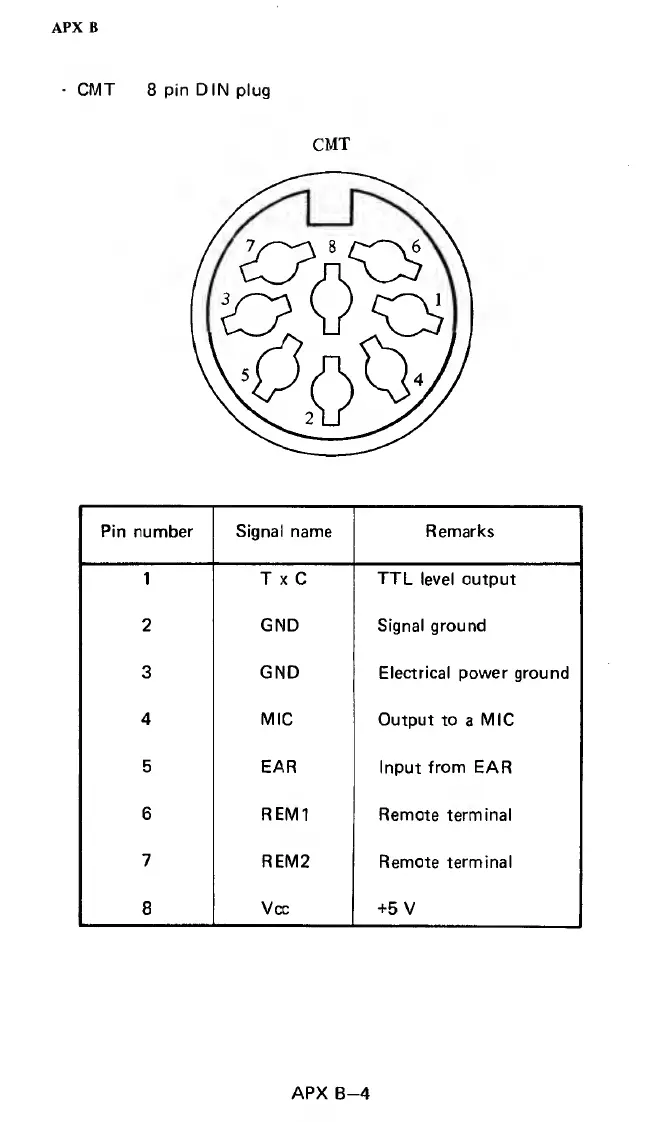

■ CMT 8 pin DIN plug
CMT
Pin number Signal name
Remarks
1
T x C TTL level output
2
GND
Signal ground
3 GND
Electrical power ground
4
MIC Output to a MIC
5 EAR
Input from EAR
6
REM1
Remote terminal
7
REM2 Remote terminal
8
Vcc
+5 V
APX B—4
