NEC PC-8201A - Reset Switch

Chapter 2
Reset Switch

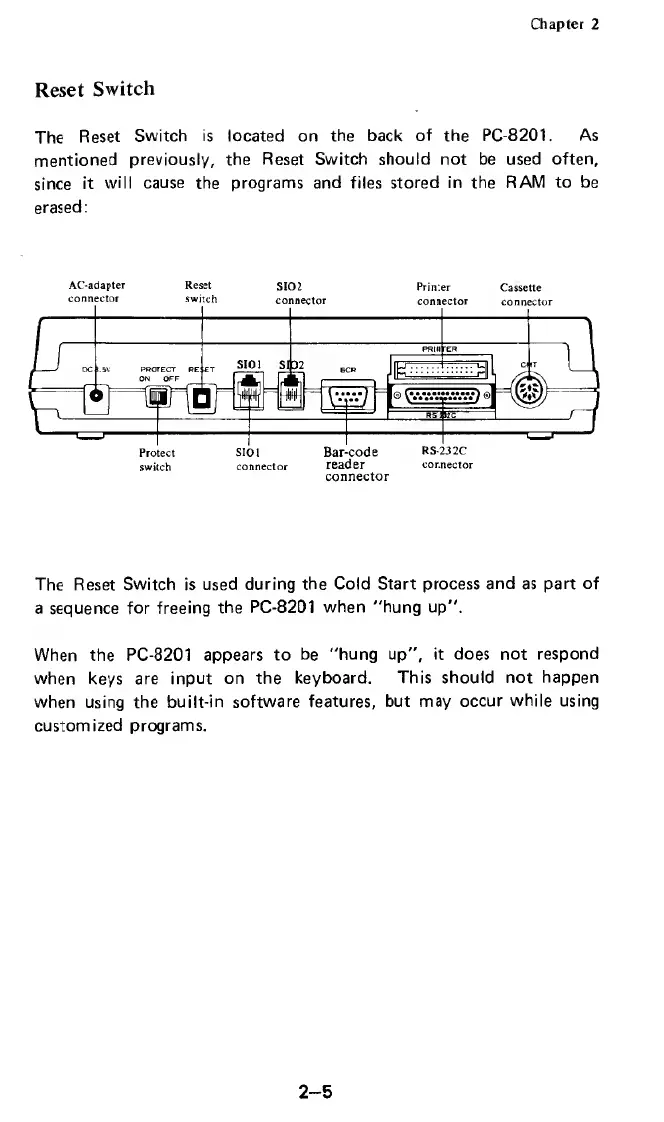

The Reset Switch is located on the back of the PC-8201. As
mentioned previously, the Reset Switch should not be used often,
since it will cause the programs and files stored in the RAM to be
erased:
AC-adapter Reset SI02 Prin:er Cassette
connector switch connector connector connector
connector
The Reset Switch is used during the Cold Start process and as part of
a sequence for freeing the PC-8201 when "hung up".
When the PC-8201 appears to be "hung up", it does not respond
when keys are input on the keyboard. This should not happen
when using the built-in software features, but may occur while using
customized programs.
2-5
