Nedap SmartFlow / Installation manual
Version 01.001 / 2021 / EN
18
Dairy Farming
c.

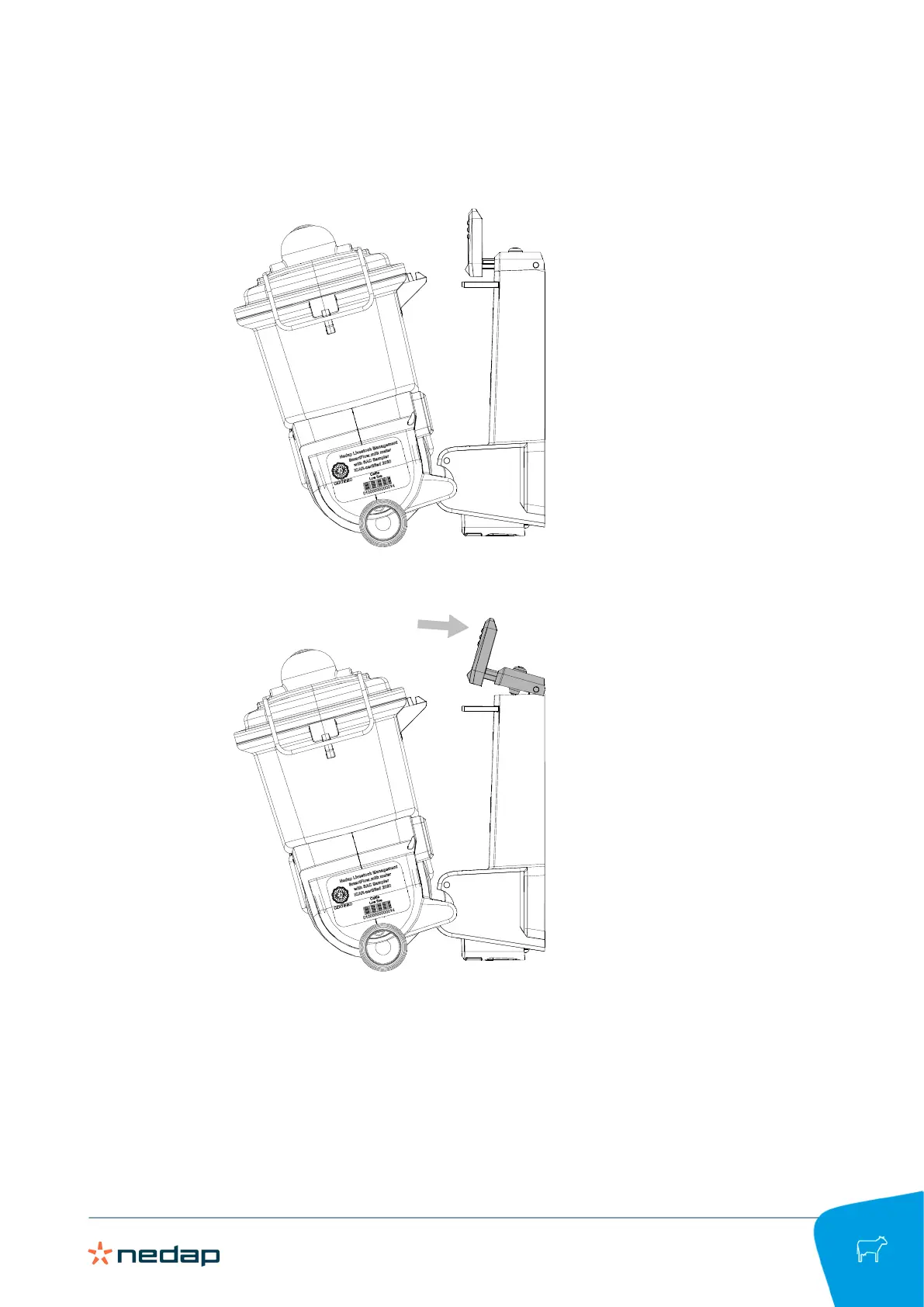

The hinges are closed and the lower part of the SmartFlow is now fixed in the brack
et.
d.
Press the lever at the top of the bracket and slide the ridg
e of the SmartFlow under the lever
.
19
21
Table of Contents
Default Chapter
4
Table of Contents
4
1 Safety
6
2 Smartflow Overview
8
Smartflow Introduction
8
Components
9
Smartflow and MPCU in the Milking Parlor
11
3 Installation
12
Requirements for Installation
12
Electrical Requirements
12
Network Requirements
13
Electromagnetic Requirements
13
Additional Documentation
14
Installation Overview
14
Unpack the Smartflow Components
15
Place the Smartflow Components
15
Mount the Components
15
Mount the VP8002 VPU and VP2001 Power Supply
16
Mount the VP4102 Reader and Antenna
16
Mount the Smartflow
16
Prepare the Float
23
Mount the Cleaning Installation
27
4 Configuration
29
Configure the VP8002 VPU and VP4102 Reader
29
Configure the Velos Software
30
Zero Point Test
30
Calibrate the Smartflow
32
Auto Calibration
32
Milk Test
33
5 Commissioning
35
Before Startup
35
Inform the End User
35
6 Routine Checks
36
Check Status Auto Calibration
36
Check the Zero Point Test
37
7 Cleaning
40
Clean the Smartflow
40
Cleaning Requirements
40
Cleaning Agents
41
Water Temperature and Flow Rate
41
Mechanical Aspects
41
Cleaning Cycle
42
Water Usage
42
Cleaning Program Settings
42
8 Maintenance
43
Maintenance Scheme
43
Replace the Smartflow Float
43
9 Troubleshooting
47
Malfunctions
47
10 Handling Instructions
48
11 Glossary
49
12 Technical Specifications
50
13 Compliance
51
