8.3 Accessories
Chucks
Part Number
Stud Diameter,
Ø
Chuck Size
Part Number
Stud
Diameter, Ø
Chuck Size
500-001-374
0.095
13 Ga.
500-001-366
0.190
#10 Thd./3/16”
500-001-363
0.109
12 Ga.
500-001-358
0.197
5 mm
500-001-355
0.112/0.118
#4 Thd./3 mm
500-001-362
0.236
6 mm
500-001-390
0.125
#5 Thd./1/8”
500-001-359
0.250
1/4"
500-001-356
0.134/0.138
10 Ga./#6 Thd.
500-001-360
0.312/0.315
5/16”/8 mm
500-001-361
0.157
4 mm
500-001-369
0.375
3/8”
500-001-357
0.164
#8 Thd.
500-001-506
0.394
10 mm
500-001-372
0.172
3/16 Annular Ring
(Navy Pin)
Stud Stop Pin Assembly
Tools
Part Number
Stud Length
Part Number
Description
500-017-017
1/4" - 5/8”
525-001-200
TOOL,NCD+ UNIVERSAL SET-UP
500-017-018
3/4” - 1-1/8”
508-001-035
HEX KEY SET, METRIC
500-017-019
1-1/4” - 1-5/8”
500-017-020
1-3/4” - 2-1/8”

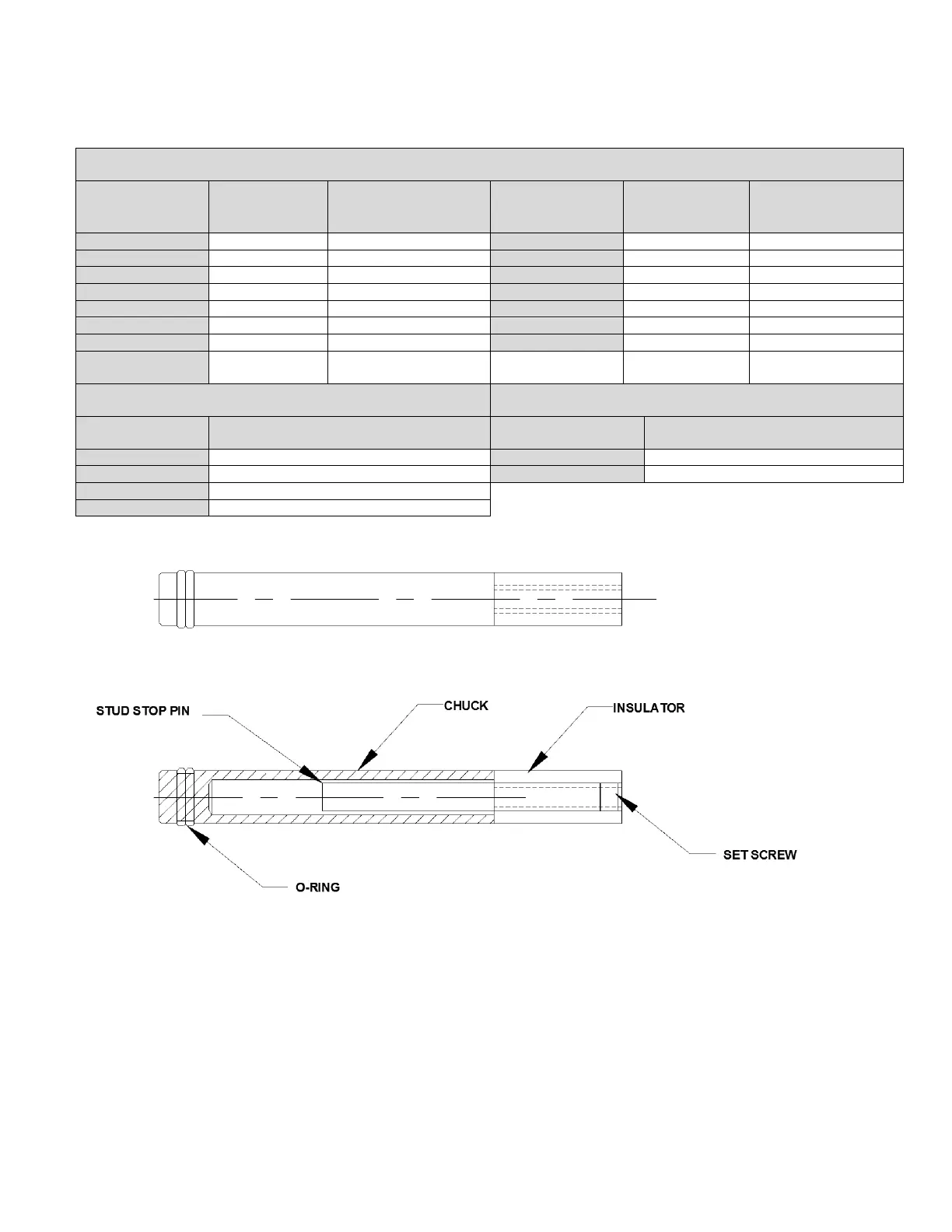

Figure 8.1 Stud Stop Pin Assembly
