Controls
To reset and open the valve, rotate the Control Rod Stem down (see figure 5).
The Latching Spool will release from the Latching Pawl and the spring should
slide the Control Rod Forward. Caution: There should not be any water
pressure to the RainTrain2
®
when the valve is turned on. These
diagrams show water pressure for educational purposes only.
Pressurized water from a sprinkler can inflict serious
injury to the operator or bystanders.
10

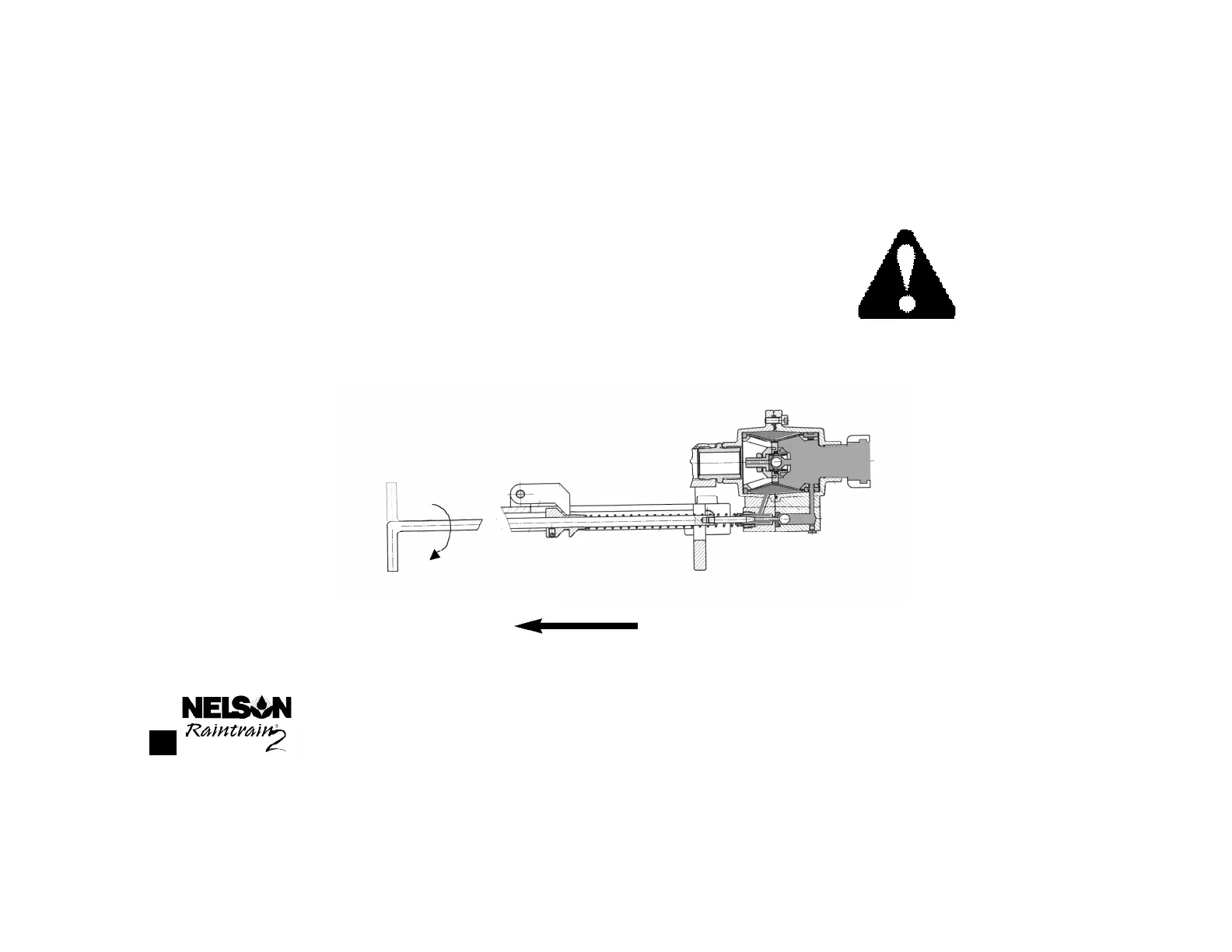

Figure 5. The Control Rod Stem is Turned Down (For illustration purposes,
the rod is still back and valve is still off. Also see figures 6 and 7).
