Nelson RainTrain2 User Manual

Sprinkler Adjustment
The ZE 30W Sprinkler.
See "Specification" section for sprinkler performance information.
The part circle stops are spring clips and they can be rotated to provide any desired arc of operation (see figure 12).
No tools are required to move the clips. Do not attempt to remove the spring clips from the sprinkler base. Removing
the clips by stretching them over the sprinkler base will destroy the spring tension and they cannot be re-used.
The part circle pin can be removed so it will not make contact with the part circle stops (see figure 13). When in this
configuration, the sprinkler will operate "full circle". To remove the part circle pin, squeeze the two wires together and
slip them out of the housing. Store pin in a safe place.

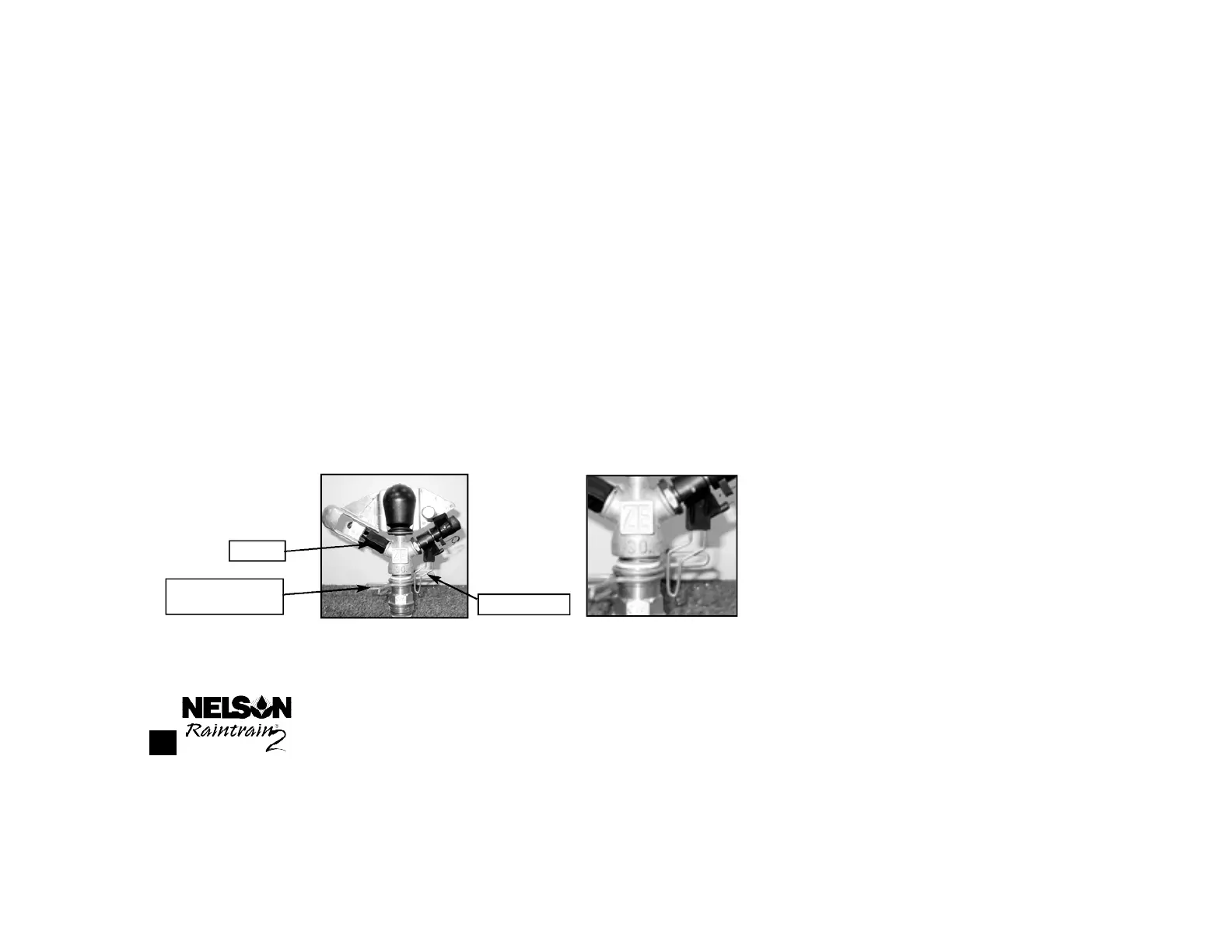

Figure 12. ZE 30W Sprinkler. Figure 13. Removal of the Part Circle Pin.
18
Nozzle
Part Circle
Stops/Spring Clips
Part Circle Pin
