Nelson RainTrain2 User Manual

Disassembly and Assembly
Caution: Make sure there is no water pressure to the RainTrain2
®
during any
Disassembly and Assembly procedures.
Wheels
Carefully remove the Hub Cab with a flat-bladed screwdriver.
Remove the shoulder bolt using a 7/8” or M22 socket (see figure 14).

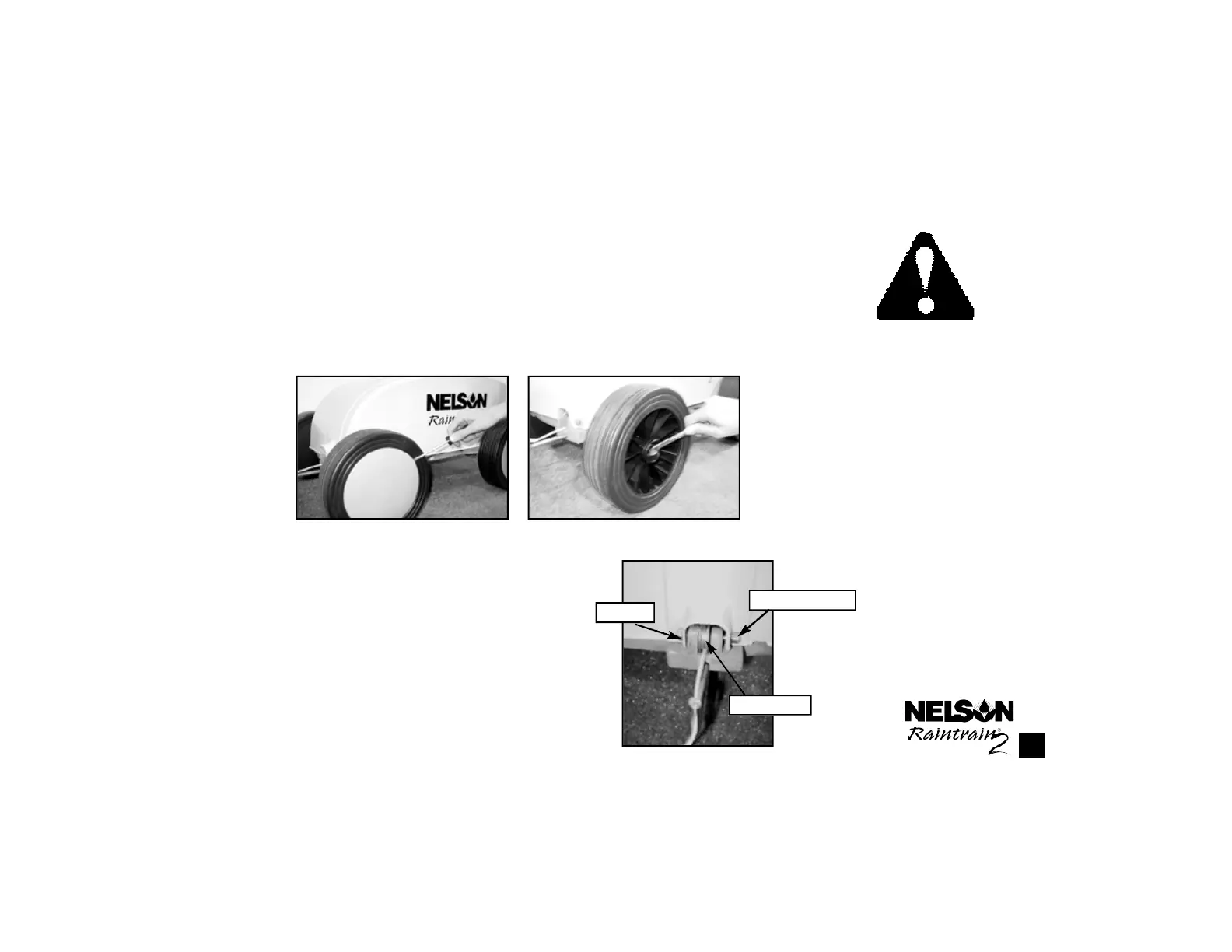

Figure 14. Removal of the Hubcap, Shoulder bolt and Wheel
19
Cover/Cable Pulley
To remove the cover and cable pulley, remove the front
bolt and lock nut using a 1/2" wrench and a 6mm hex
wrench (see figure 15). When replacing the pulley, the
cable goes on the bottom of the pulley. Leave the lock nut
loose enough during assembly so the cover can easily
pivot about the bolt.
Figure 15. Front of the RainTrain2
®
.
Socket Head Bolt
Cable Pulley
Lock Nut
