Disassembly and Assembly
Latching Spool Adjustment
The Latching Spool is adjusted from the factory. However, if it is necessary to adjust the spool, it can be adjusted using a 3mm hex
wrench. See the Controls Section of this manual for details on the operation of the Latching Spool.

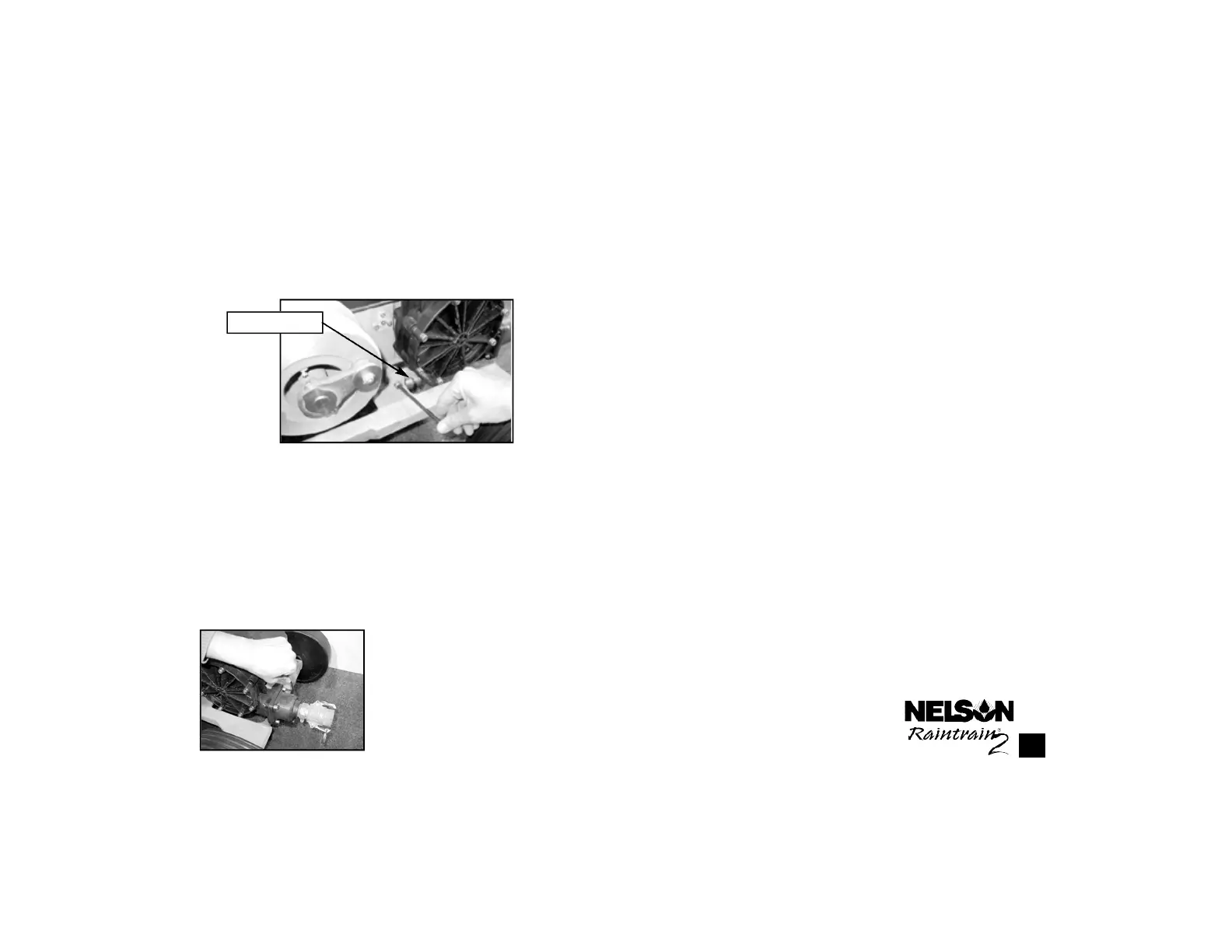

Figure 18. Adjusting the Latching Spool.
On/Off Valve
The On/Off Valve is maintenance free. However, you may wish to periodically remove the valve cartridge to remove any debris
that has passed through the water line. Remove the four bolts using a 5mm hex wrench. Use a screwdriver to carefully open the
housing. Take care not to puncture the valve bladder. Remove the cartridge from the other half of the housing. Note: The cartridge
must only be reinstalled in the correct orientation to assure proper function of the valve. The nut on the inside of the bladder goes
towards the front of the machine.
Figure 19. Removal of the
On/Off Valve Cartridge.
21
Latching Spool
