Nemaxx 330 - SCOPE OF DELIVERY; ASSEMBLY AND DISASSEMBLY; ASSEMBLY OF BASE PLATES

[
EN ● 10
]
Version: 1.2
KEN002ZB 02.02.2020
●SCOPE OF DELIVERY
● Floating body
● Aluminium floors
● Side profiles (side joiner)
● Repair kit
● Instruction manual
● Transport bag
● Benches
● Paddles
● Foot pump with manometer
ASSEMBLY AND DISASSEMBLY
●ASSEMBLY OF BASE PLATES
NOTE: Theoorplatesmustbeinstalledintheboatbeforetheboatisinated.
1. Clear a level surface that is clean and free of sharp objects.
2. Unfold the boat and lay it flat.
3. Fasten the valves in place. Check that the cap gasket is properly seated and attach the valve holder to each
valve.
4. Slide the front bottom plate (no. 1) into the bow. Position the opening above the keel air chamber valve. Join
the base plate (no. 2) with the front base plate.
5. Slide the rear base plate under the mirror holder (no. 4).

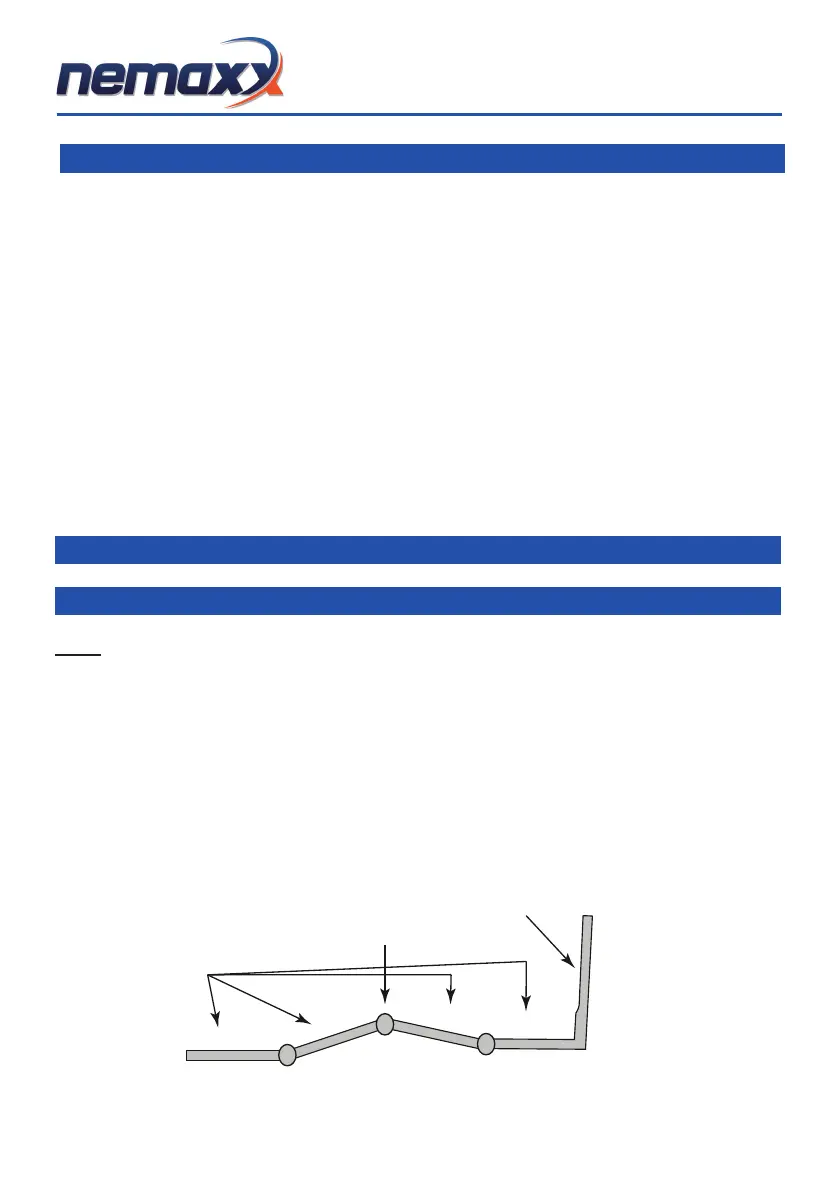

6. Assemble the remaining base plates. Position the middle base plates so that they form an inverted V-shape.
Align the side edges of the base plates straight and then press on the V-profile to level the base plates.
NOTE: The floor panels are reinforced by the side profiles installed on the panels. Position these side profiles
so that they are inserted between the rubber stops on the side air chambers.
1
2
3
4
installation
sequence
press down
stern
