Neolt Neofold HS 920 - Installation Guide; Stand Assembly Procedure

Chapter
INSTALLATION
NEOFOLD HS
VERSION: NF.HS-07-03/2015-GB 5-3
Installation 5.3

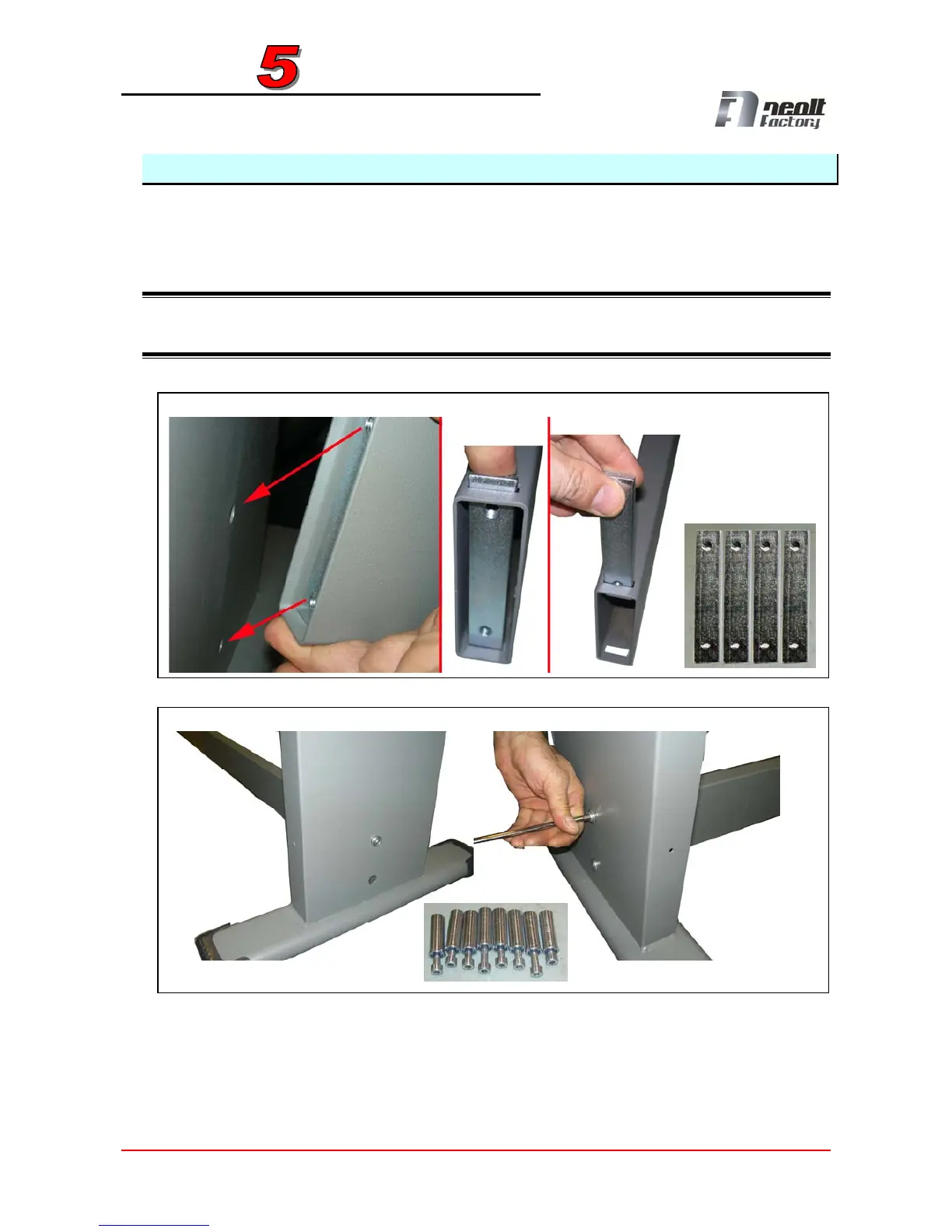

 Open the box and remove the right shoulder of the stand (
C), remove one of the two
cross bars (
E), fix the lower cross bar (fig. 5.2) to the shoulder using the screws, the
plate for the cross bar and the bushes supplied (fig. 5.3).
 Caution the shoulder has holes of different sizes, the side with the larger holes must
face outwards.
 Remove the left shoulder from the box (
D) and fix it to the cross bar fixed to the right
shoulder.
Fig. 5.3
Fig. 5.2
