1.3 Brake adjustment:
Allen key 5 mm
Screwdriver

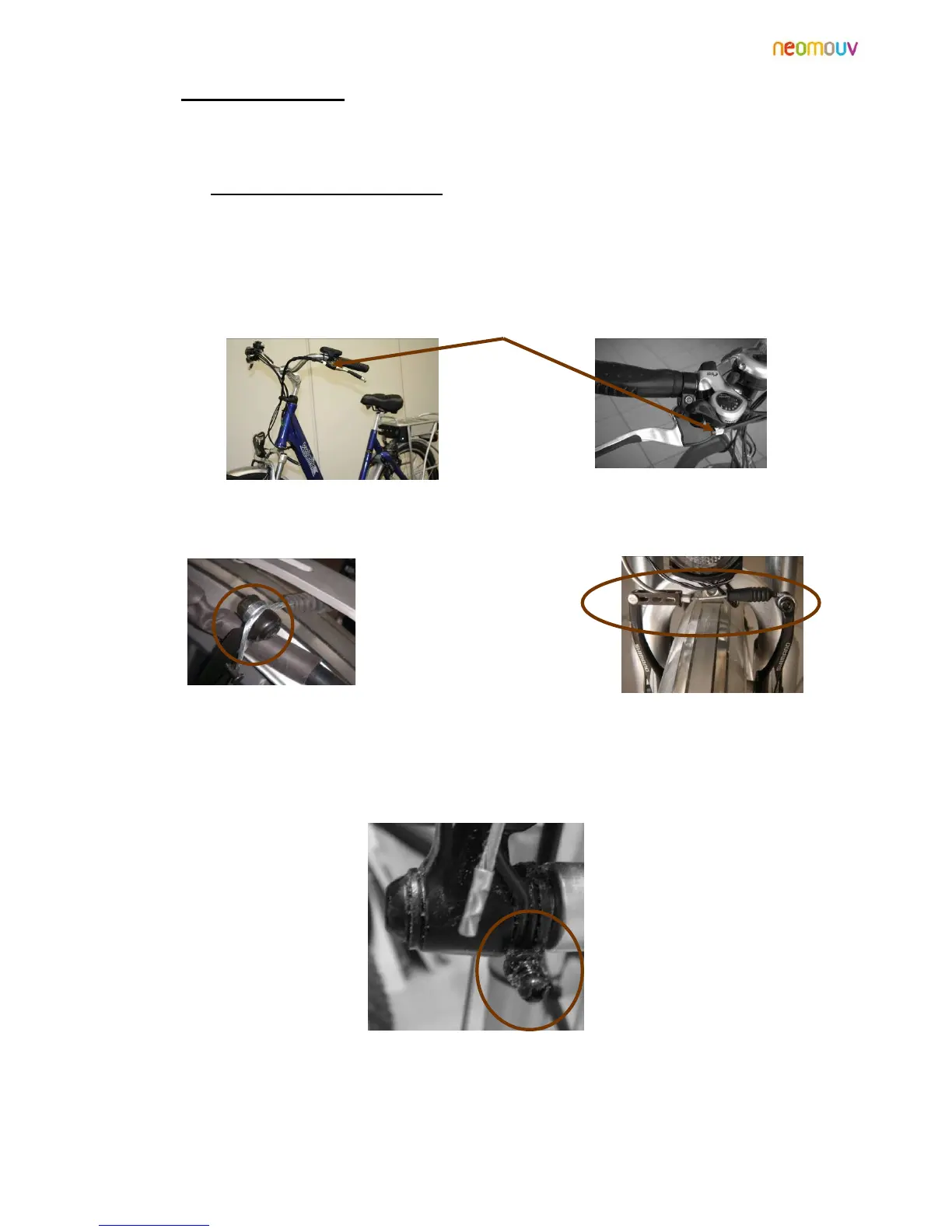

1.3.1 Front brake Type V-Brake:
The front brake is maneuvered by the left brake lever on the handlebar.
Fully tighten the nut on the brake lever, this feature allows you to compensate later the natural release of the
brake cable.
Loosen the cable clamp and pull the cable until the brake pads touch the rim. Tighten the cable clamp (special
attention is to be made at each end of the sheath which is to enter without forcing into the housing of each
rigid tip, brake lever and V-Brake).
The pads are properly adjusted when they are equidistant from the rim. The final adjustment is to tighten the
screws mounted on brake holders with a screwdriver (distance of approximately 0.1 to 0.5 mm from the rim).
Your setting is correct when the wheel freely rotates and stops smoothly.
Manual PLIMOA
7
