4

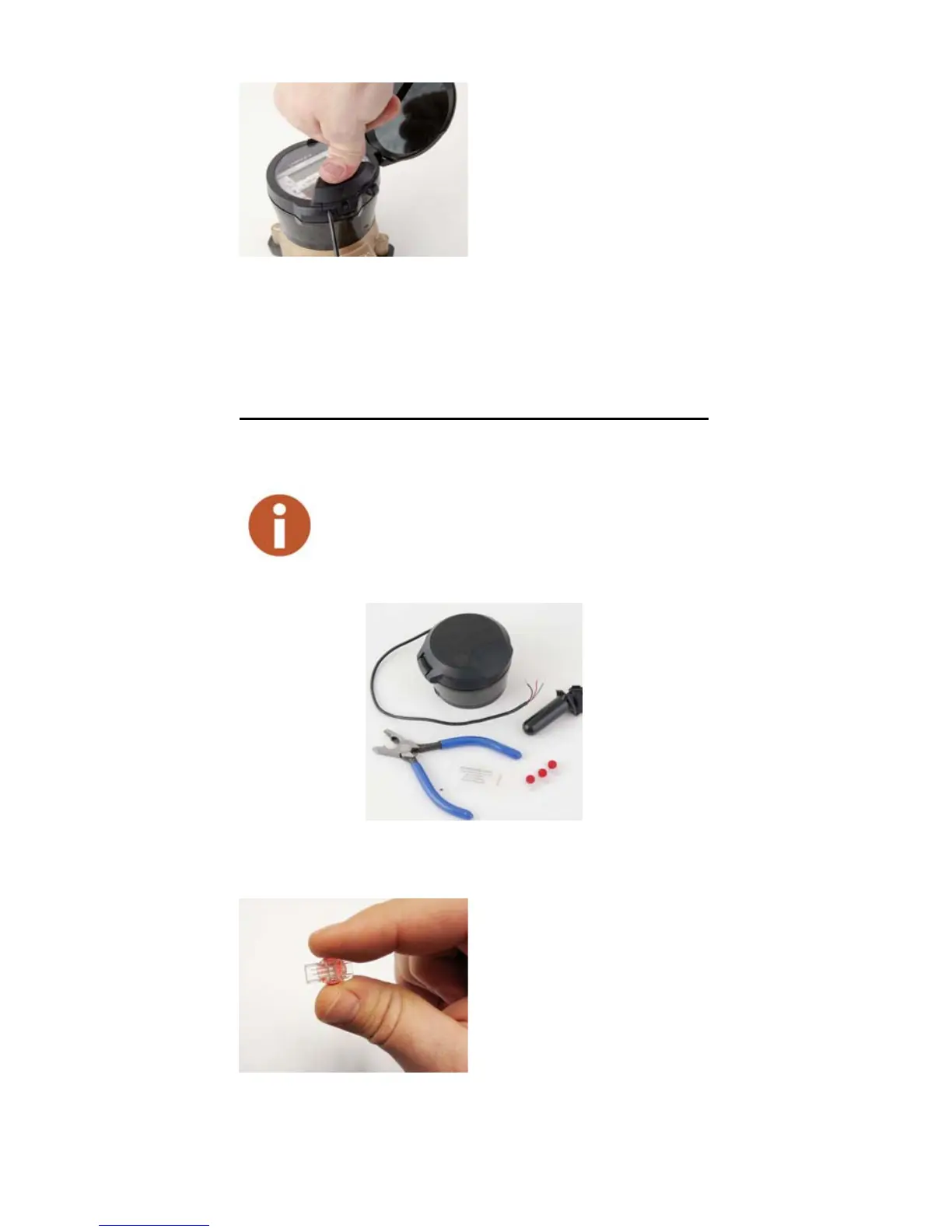

Figure 7 Snapping Cover in Place
9 Proceed to “How to Activate” on page 10.
4 Wiring the Pit Set Version
Complete the steps to wire the pit set version.
Figure 8 Installation Components
Figure 9 Scotchlok Connector
8 Snap the terminal cover in
place by pressing on the
molded arrow as shown in
Figure 7.
Figure 8 shows the components required for
installation.
1 Hold the Scotchlok
between the index finger
and thumb with the red cap
facing down. See Figure 9.
