I N S T A L L A T I O N

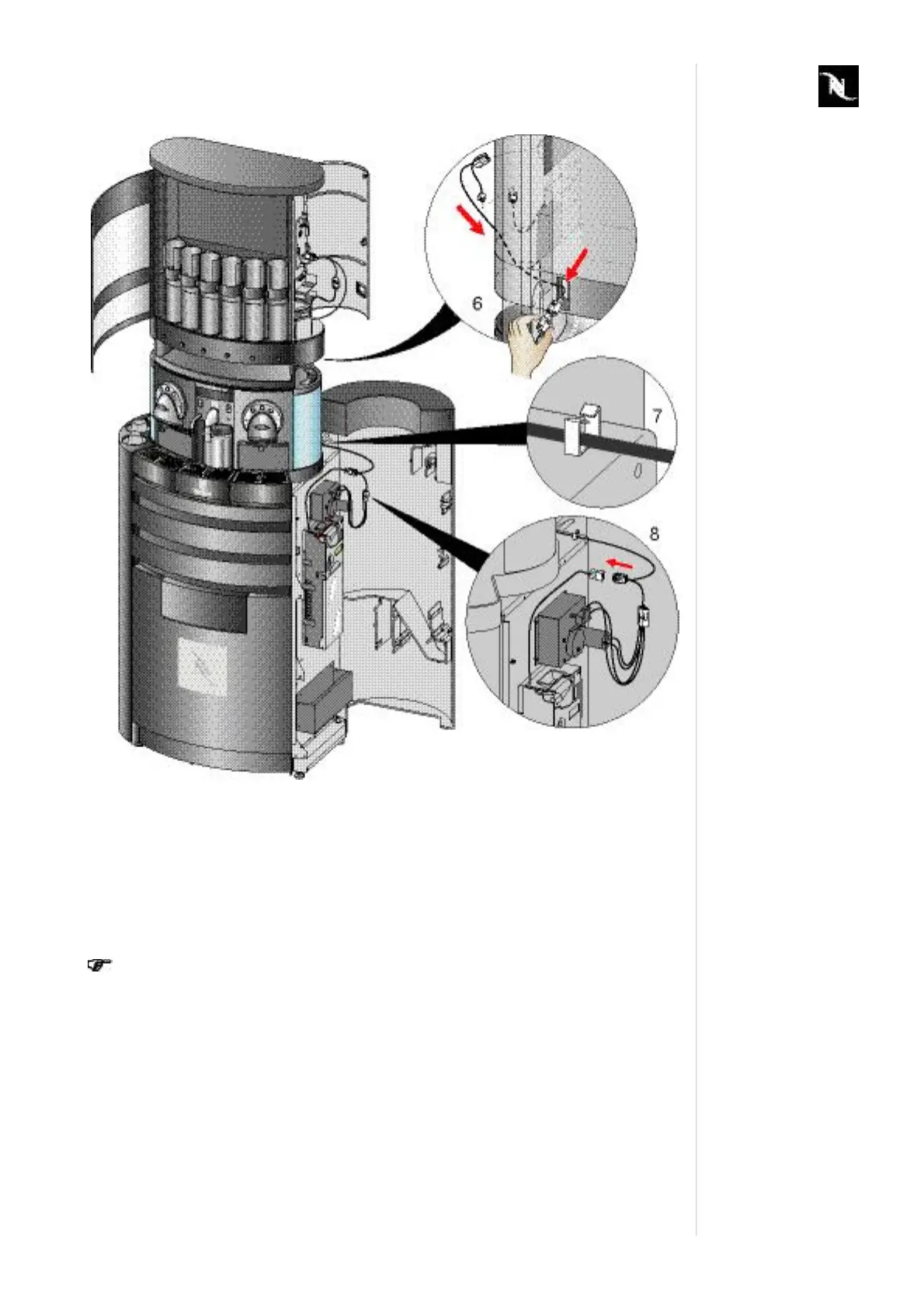

8. Leadfreeconnectorofsplittedcabelthroughopeningattherearsideoftheauto
maticcapsuledispenser(6).
9. Passsecondpartofsplittedcablethroughadjacentstrut(withpigtailside).
10. Connectsplittedcablesattherearsideoftheautomaticcapsuledispenser(6).
11. Fixdroopingcableendatundersideofstrutwithcableclamp(7).
12. Connectcoinerandactuatinggearforcoinreturnlever(8).
Forfillingthecoinerwithcoinsforthefirsttime,refertopage51.
Forprogrammingandtestingthecoiner,refertopage55.
