Nespresso Gemini CS220 - Automatic Capsule Dispenser

Towerservicemanual
8
S Y S T E M  C O M P O N E N T S

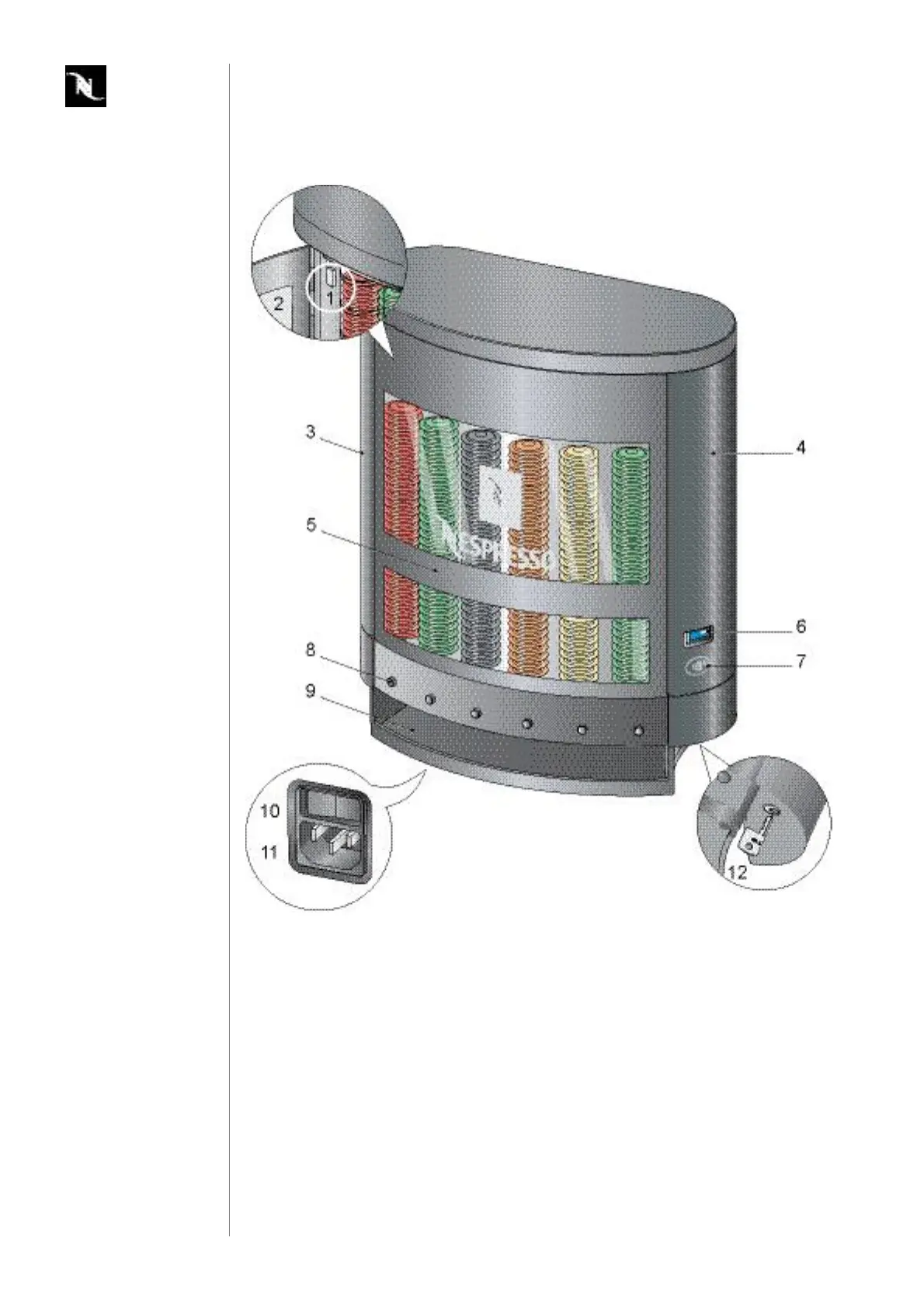

1.3 Automaticcapsuledispenser
1) Doorlatch
2) Typeplate
3) Leftsidedoor(accesstospare
capsuletubes)
4) Rightsidedoor(accesstoelectronics)
5) FrontdoorwithLEDlighting
6) Display(backlighted)
7) RFIDunit(paymentsystem)
8) Operating/programmingbuttons(6x)
9) Capsuletray
10) Mainsswitch
11) Mainsconnection
12) Keyswitch
