Nespresso Gemini CS220 - Automatic Capsule Dispenser; Repairing; Replacing a Dispenser Modul

Towerservicemanual
86
R E P A I R I N G
8.4 Automaticcapsuledispenser
8.4.1 Repairing/replacingadispensermodul

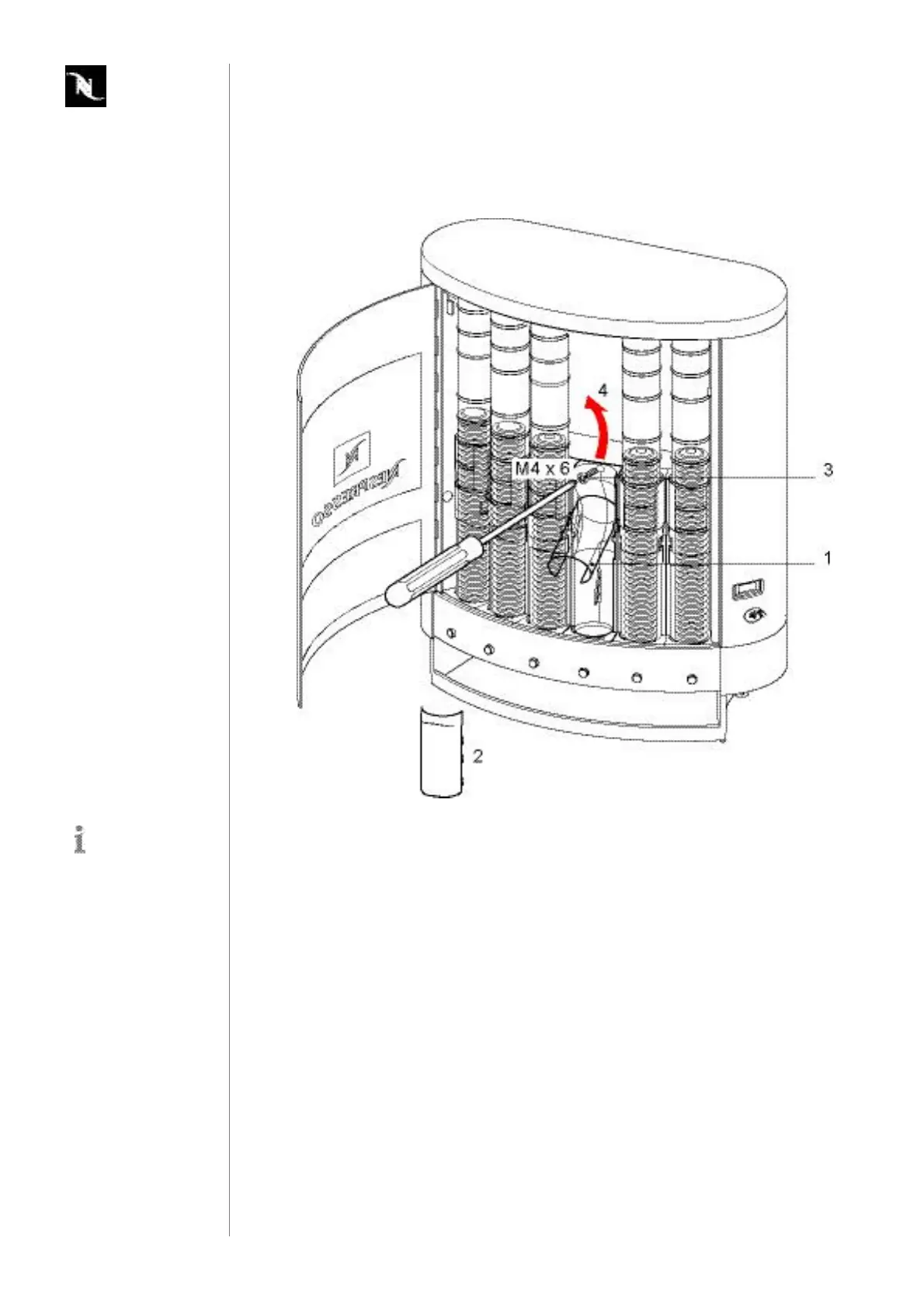

1. Turnkeyswitchandopenfrontdoor.
2. Rotatetubeconnector(1)downfullyandremovecapsuletube.
3. Removecoverglass(2):
Liftcoverglassandsqueezeittogethercarefullytillalllockinghooksarereleased.
4. Removeallcoffeecapsulesfromdefectdispensermodule.
5. Loosenscrew(3).
6. Pulloutdispensermoduleupwards(4).
Steps14are
describedindetailin
"Deblockinga
jammedcoffeecapsule"on
page76.
