Nespresso Gemini CS220 - Coiner Wiring

Towerservicemanual
40
I N S T A L L A T I O N
3.3.2 Coinerwiring
Thecoinerisconnectedwiththetwopiececabletotheelectronicmainboardinthe
automaticcapusuledispenser.

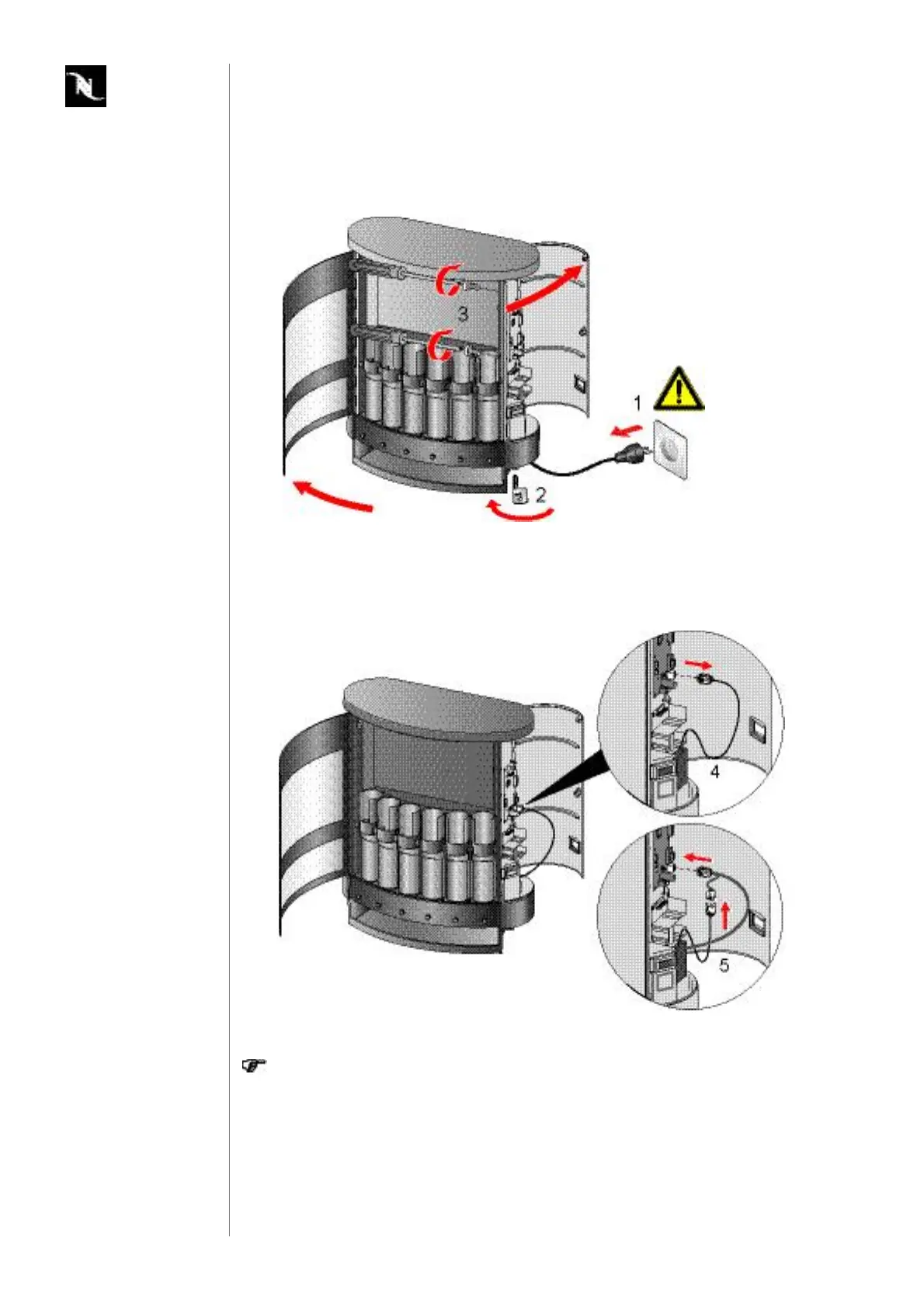

1. Verifythatpowercordisunplugged(1).
2. Openfrontdoorwithkeyswitch(2).
3. Loosen2screws(3)andopenrightsidedoor.
4. Splitthetwopiececonnectioncablethatisdeliveredwiththebasecabinet.
Thepartwiththesixpinconnectoronthepigtailbelongstotheautomatic
capsuledispenser.
5. Unplugcableconnectorofcardreaderfromelectronicmainboard(4).
6. Pluginconnectorofsplittedcableinsamesocketonelectronicmainboard(5).
7. Connectcardreadercabletopigtailofsplittedcable(5).
