4.4.3 Screens Details
4.4.3.1 Sites Screen

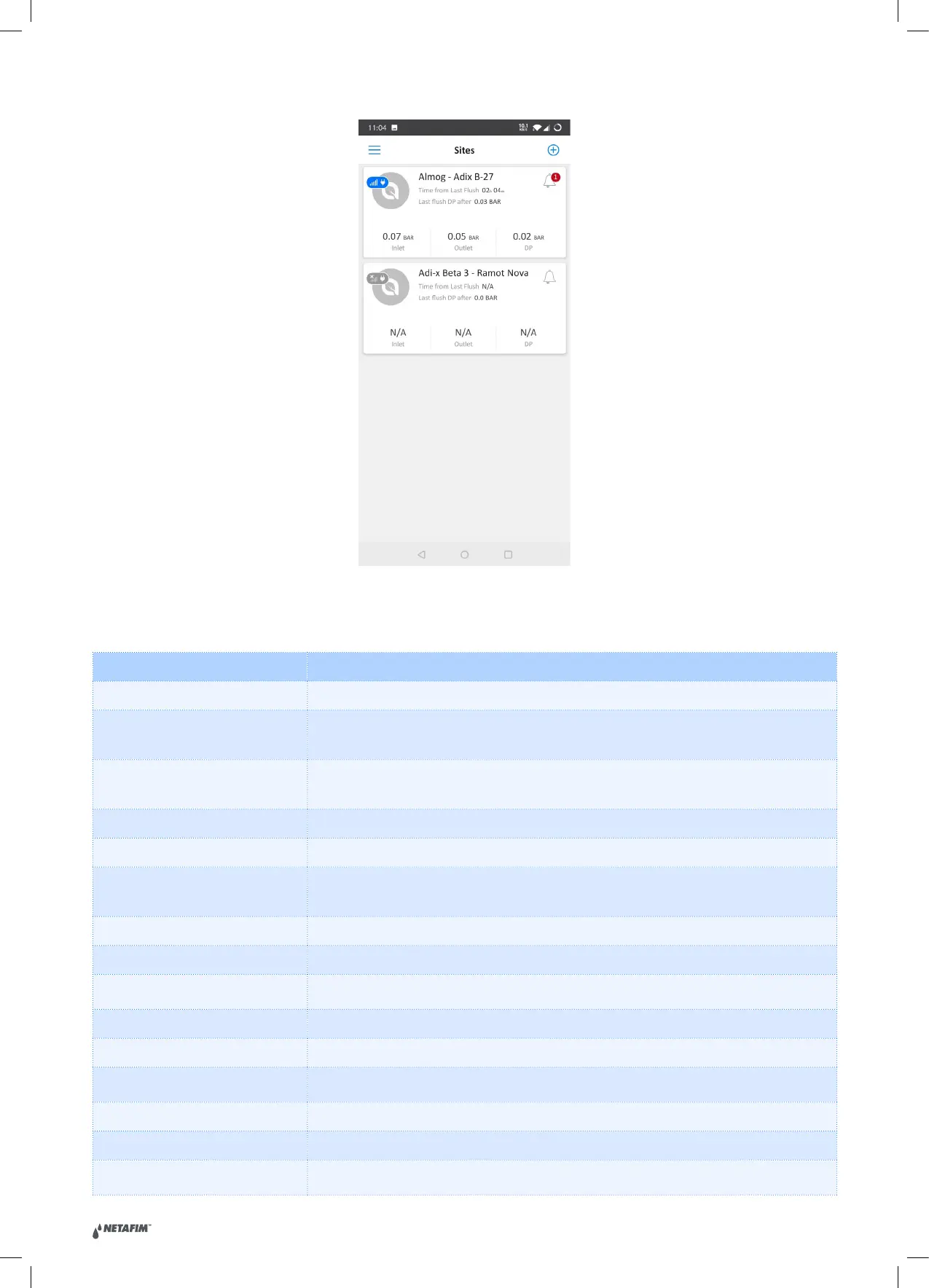

Sites screen contains all owned and linked Sites List. The Add Site button is located in the upper right corner.
Each list element contains the following information:
ELEMENT DESCRIPTION
SITE PICTURE SITE PICTURE UPLOADED BY SITE OWNER TO RECOGNIZE THE SITE.
COMMUNICATION STATUS
SMALL ICON ON THE SITE PICTURE REPRESENTS THE COMMUNICATION STATUS:
BLUE ICON – THE CONTROLLER IS CONNECTED.
GREY ICON – THE CONTROLLER IS DISCONNECTED.
POWER MODE
SMALL ICON ON THE SITE PICTURE REPRESENTS THE POWER MODE:
PLUG – THE CONTROLLER IS ON AC POWER.
BATTERY – THE CONTROLLER IS ON BATTERY POWER.
SITE NAME SITE NAME GIVEN BY SITE OWNER.
TIME FROM LAST FLUSH ONLY IN ONLINE MODE. THE TIME SINCE THE END OF THE LAST FLUSH CYCLE.
LAST FLUSH DP AFTER
ONLY IN ONLINE MODE. THE DP MEASURED AFTER FLUSHING. INTERVAL BETWEEN END OF
FLUSHING AND DP MEASURING IS DETERMINED BY "IGNORE DP" PARAMETER (SEE APPENDIX
A. ALPHADISC™ CLD CONTROLLER SETTINGS).
LAST RECEIVED INLET ONLY IN OFFLINE MODE. LAST INLET PRESSURE RECEIVED WHEN CONNECTED.
LAST RECEIVED DP ONLY IN OFFLINE MODE. LAST DP RECEIVED WHEN CONNECTED.
ALERTS ICON
THE NUMBER ON ALERTS ICON REPRESENTS THE NUMBER OF ACTIVE ALERTS FOR THE
SPECIFIC CONTROLLER. CLICK THE ALERTS ICON TO OPEN ALERTS TAB OF THE SITE.
INLET ONLY IN ONLINE MODE. THE CURRENT READING OF THE FILTER'S INLET PRESSURE.
OUTLET ONLY IN ONLINE MODE. THE CURRENT READING OF THE FILTER'S OUTLET PRESSURE.
DP
ONLY IN ONLINE MODE. THE PRESSURE DIFFERENTIAL ACROSS THE FILTER; CALCULATED BY
SUBTRACTING THE OUTLET PRESSURE FROM THE INLET PRESSURE.
LAST CONNECTION ONLY IN OFFLINE MODE. THE LAST TIME THE CONTROLLER WAS CONNECTED.
NEXT CONNECTION ONLY IN OFFLINE MODE. THE TIME OF NEXT ATTEMPT TO CONNECT TO THE CONTROLLER.
CONF. PARAMS
ONLY IN OFFLINE MODE. INDICATES IF CONTROLLER CONFIGURATION IS UP TO DATE (LAST
CHANGES SYNCHRONIZED WITH CONTROLLER) – SYNCED / NOT SYNCED
