| AlphaDisc CLD user guide V2.0
72

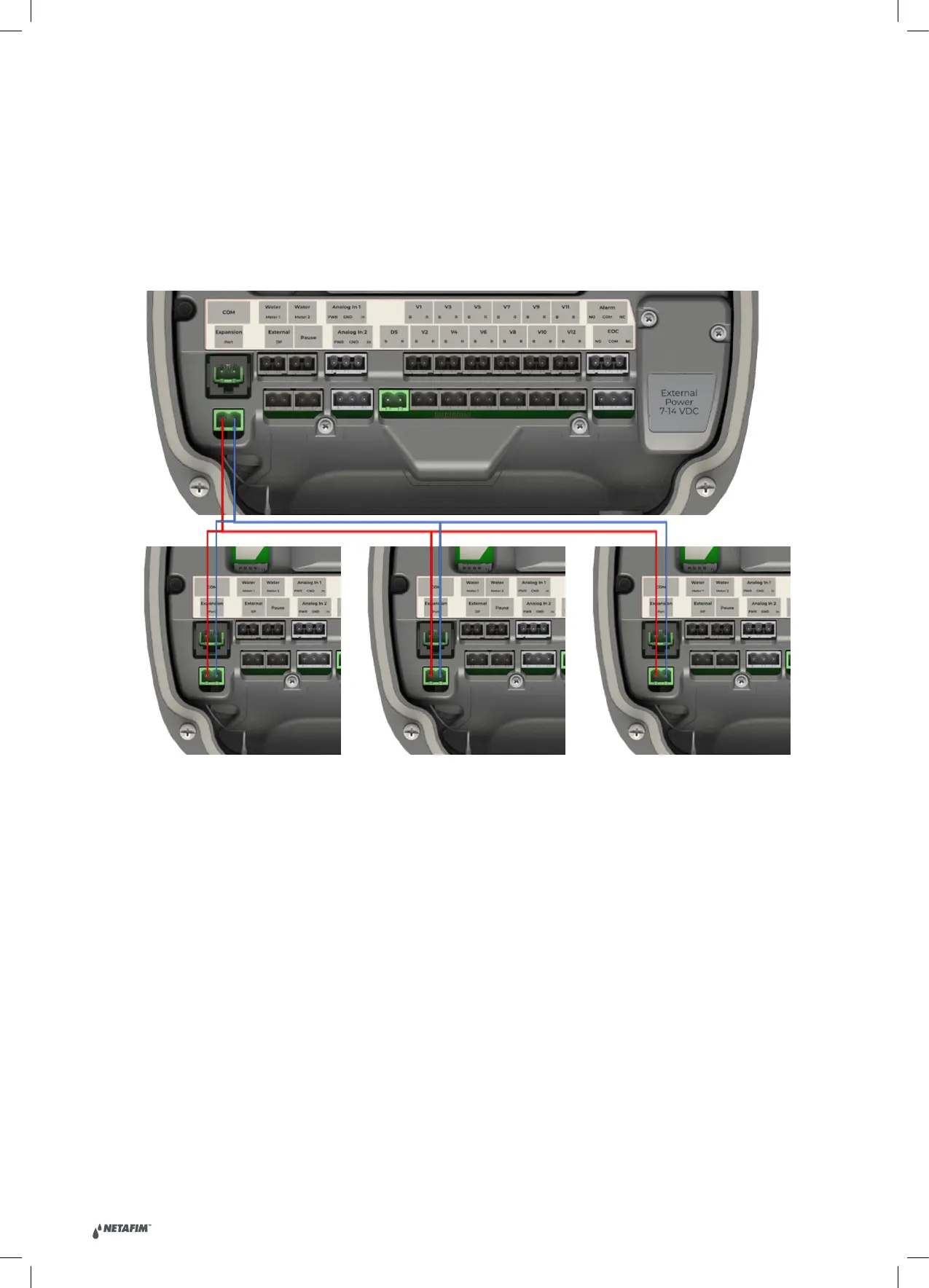

5.8 CHAINING ALPHADISC™ CLD CONTROLLERS
AlphaDisc™ CLD controller can be set as primary controller that controls up to 3 secondary AlphaDisc™ CLD
controllers. Primary controller flushing trigger is performed by the secondary controllers. All flush settings are set on
each secondary controller separately
To chain controllers:
1. Connect each secondary controller to the primary controller using Ext A and B contacts.
2. Set the primary controller Operation mode to Primary and select the number of the secondary controllers (for
primary controller settings - see 5.3).
3. Set the secondary controllers Operation mode to Secondary (see 5.3).
Primary
Secondary 1 Secondary 2 Secondary 3
