5.4.9 Configuring Local Analog Inputs

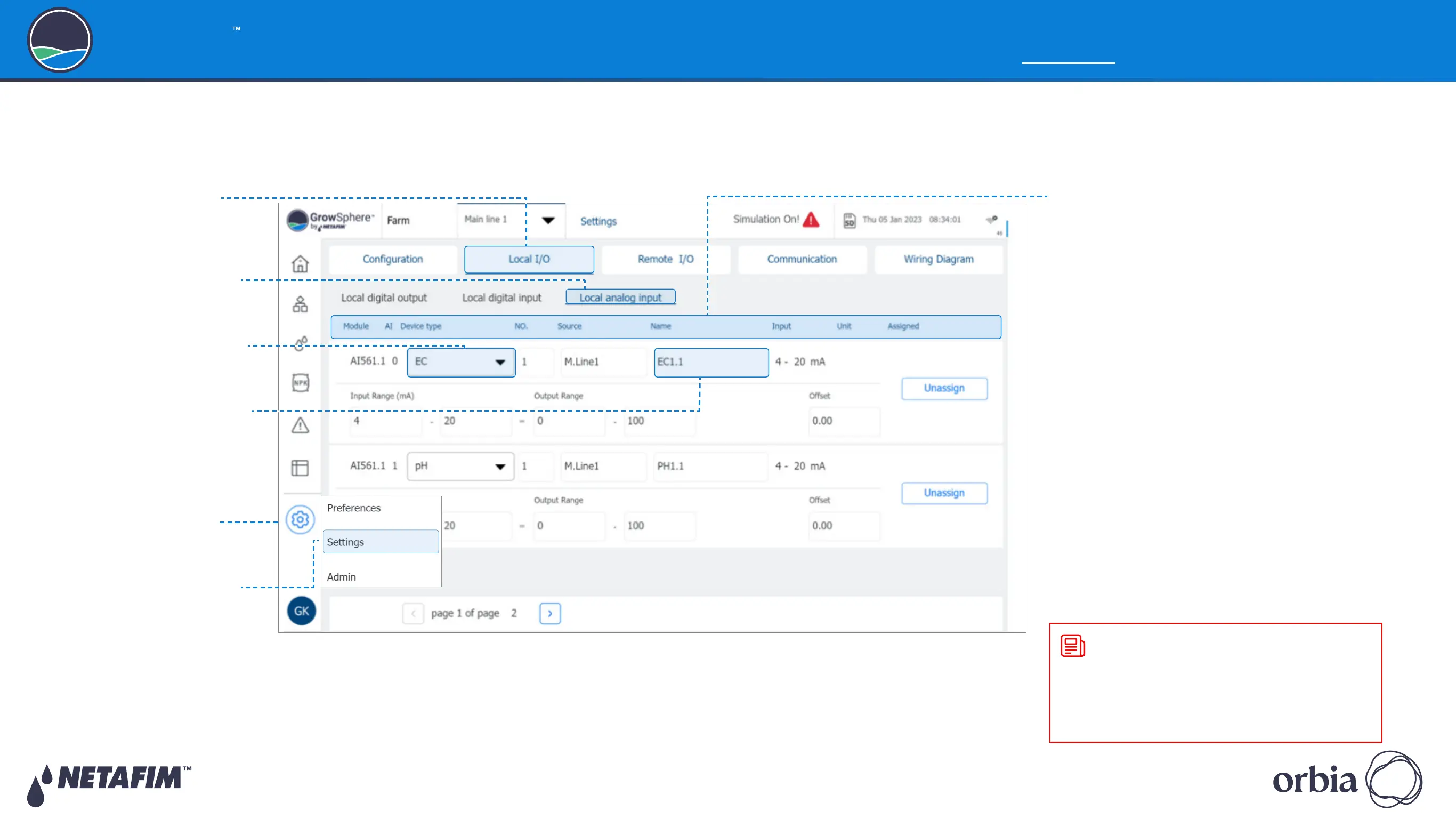

Perform the following steps to configure all local analog inputs (i.e., sensors):
z
Module: The controller module to which the
sensor is connected.
z
AI (Analog Input) #: The module's analog input
port number to which the sensor is connected.
z
Device Type: Options include a variety of
sensors (e.g., EC sensor, pH, sensor, etc.).
z
NO.: Sensor number.
z
Source: Irrigation line to which the sensor is
connected.
z
Name: The system set a default name. It is
suggested to type here a descriptive name of
the device.
z
Input: Automatically defined according to the
sensor type.
z
Unit: The sensor's measurement unit.
z
Assigned: Indicates if the device was assigned
to a Controller module.
If the device is disabled the device line appears
gray.
7. Define the analog input settings:
4. Tap the Analog input tab
3. Tap the Local I/O tab
NOTE
The module name includes also the slot number
where the mudule is installed. This is helpful
when more than one module of the same type
are installed in the controller.
6. Select the relevant device
name
The system suggest the next
device of the selected type
that was not assigned yet.
1. Tap the Configuration
button
2. Select Settings and type
your credentials
5. Select the relevant device
type
