Interfaces

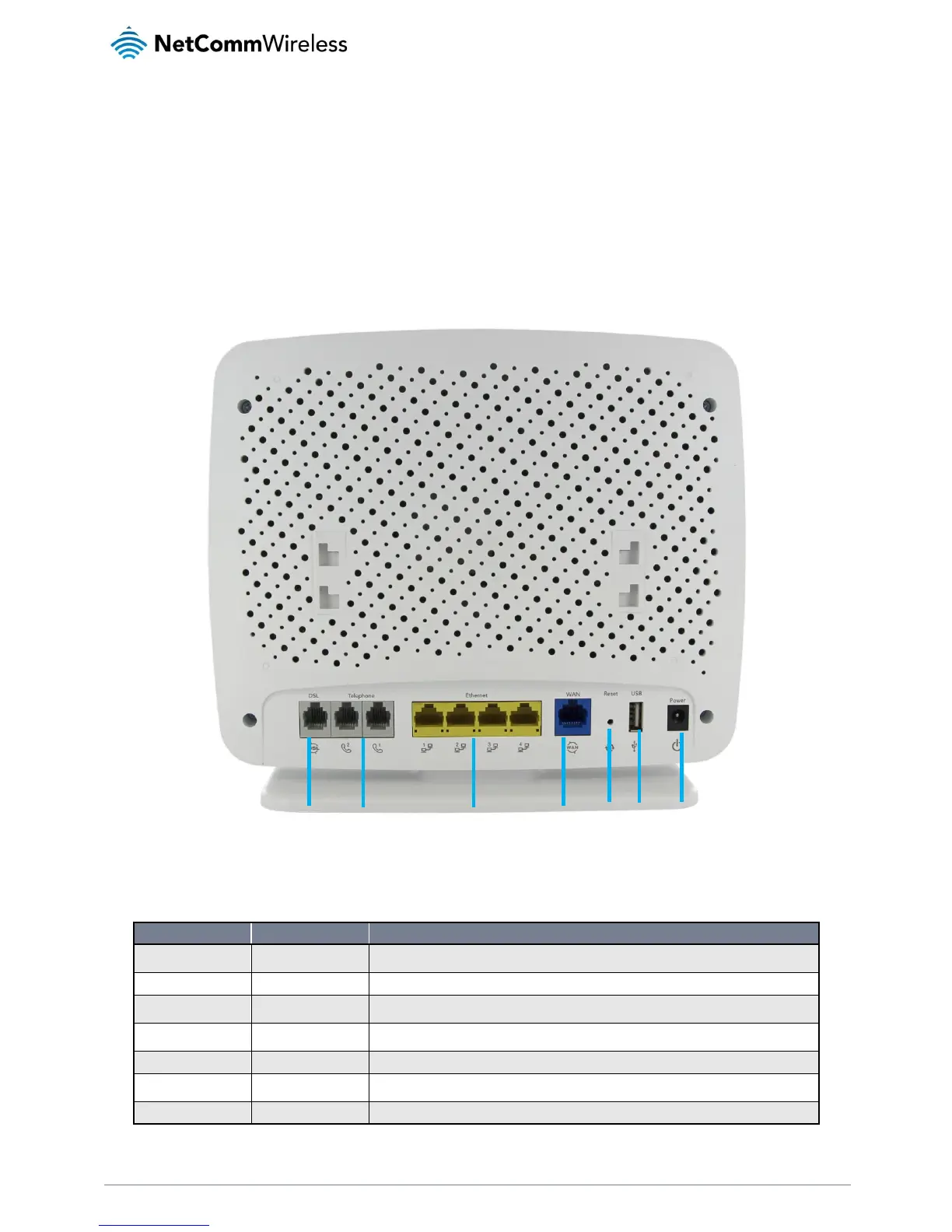

Rear
The following interfaces are available on the NF17ACV:
NUMBER
INTERFACE
DESCRIPTION
1
DSL
Use the provided RJ-11 cable to connect the router to the telephone line operating your xDSL
service.
2
Telephone 1 and 2
Connect a regular telephone handset here for use with a VoIP account.
3
Ethernet 1 - 4
Gigabit Ethernet LAN ports. Connect your Ethernet based devices to one of these ports for high-
speed internet access.
4
WAN
Gigabit capable WAN port for connection to a WAN network. Connect to your Network
Termination Device (NTD) for high-speed internet access.
5
Reset button
Reset unit to Default by holding the Reset button down for 3 seconds when unit is powered on.
6
USB 1
Connect an external USB hard drive here to use the Network Attached Storage (NAS) feature of
the NF17ACV.
7
Power supply jack
Connection point for the included power adapter. Connect the power supply here.
7
6
5
4
3
2
1
