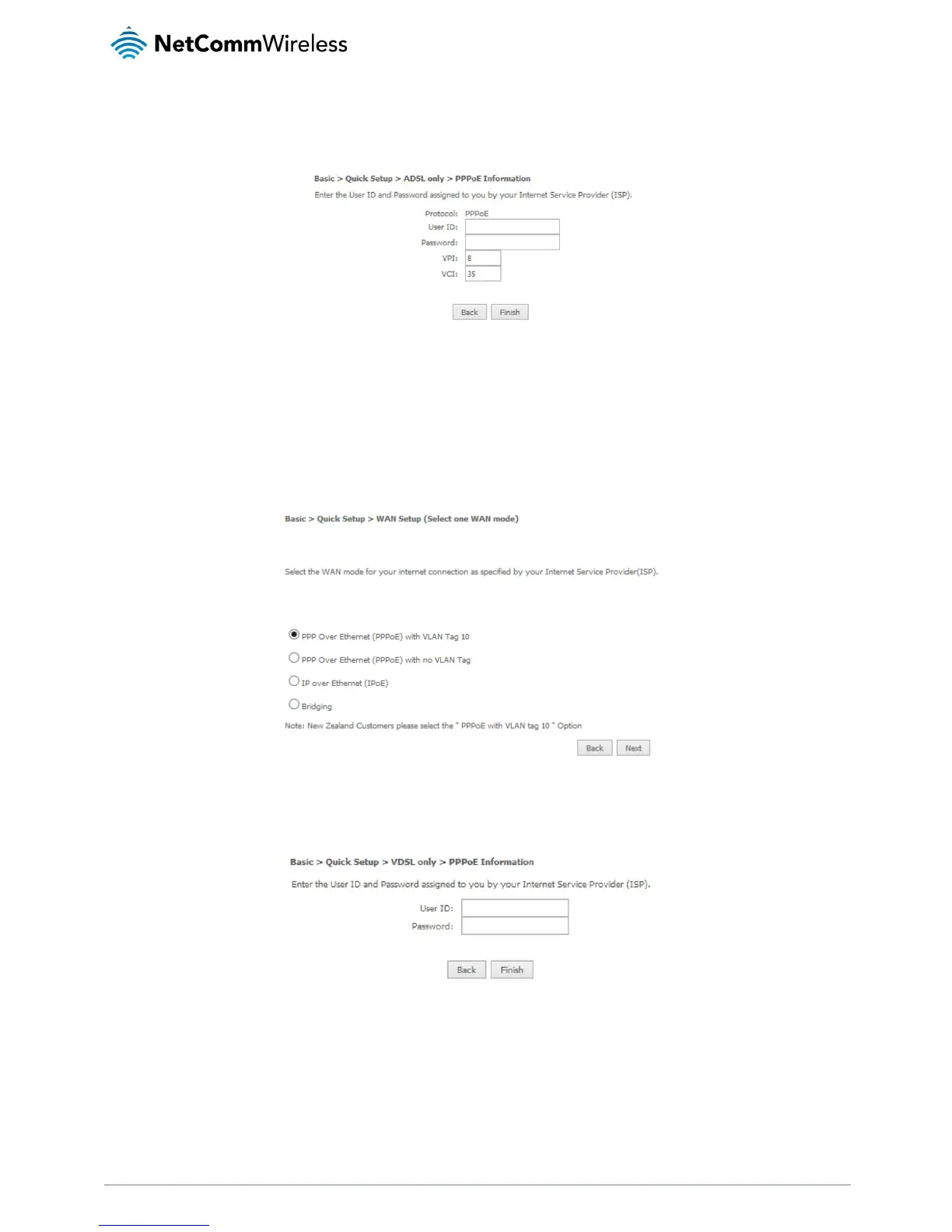

c) In the User ID and Password fields, enter the PPPoE authentication username and password assigned to you by your
Internet Service Provider (ISP). Click the Finish button.
The account settings are saved and the NF17ACV connects to the internet.
VDSL
a) Select VDSL and click the Next button.
b) Select the WAN mode for your internet connection as specified by your Internet Service Provider (ISP). Click the Next
button.
For New Zealand customers, the requirement for VDSL is VLAN tag 10, if you are not sure of the tagging requirement for your
connection, please contact your ISP.
In the User ID and Password fields, enter the PPPoE authentication username and password assigned to you by your Internet
Service Provider (ISP).
Click the Finish button when you have entered the required details.
Ethernet WAN
a) Connect an RJ45 Ethernet cable to the WAN port on the NF17ACV. Connect the other end of the cable to your WAN
service.
b) Select Ethernet WAN then click the Next button.
