If you Choose “Static IP”, the Static IP settings page will appear, shown in figure 4-8:

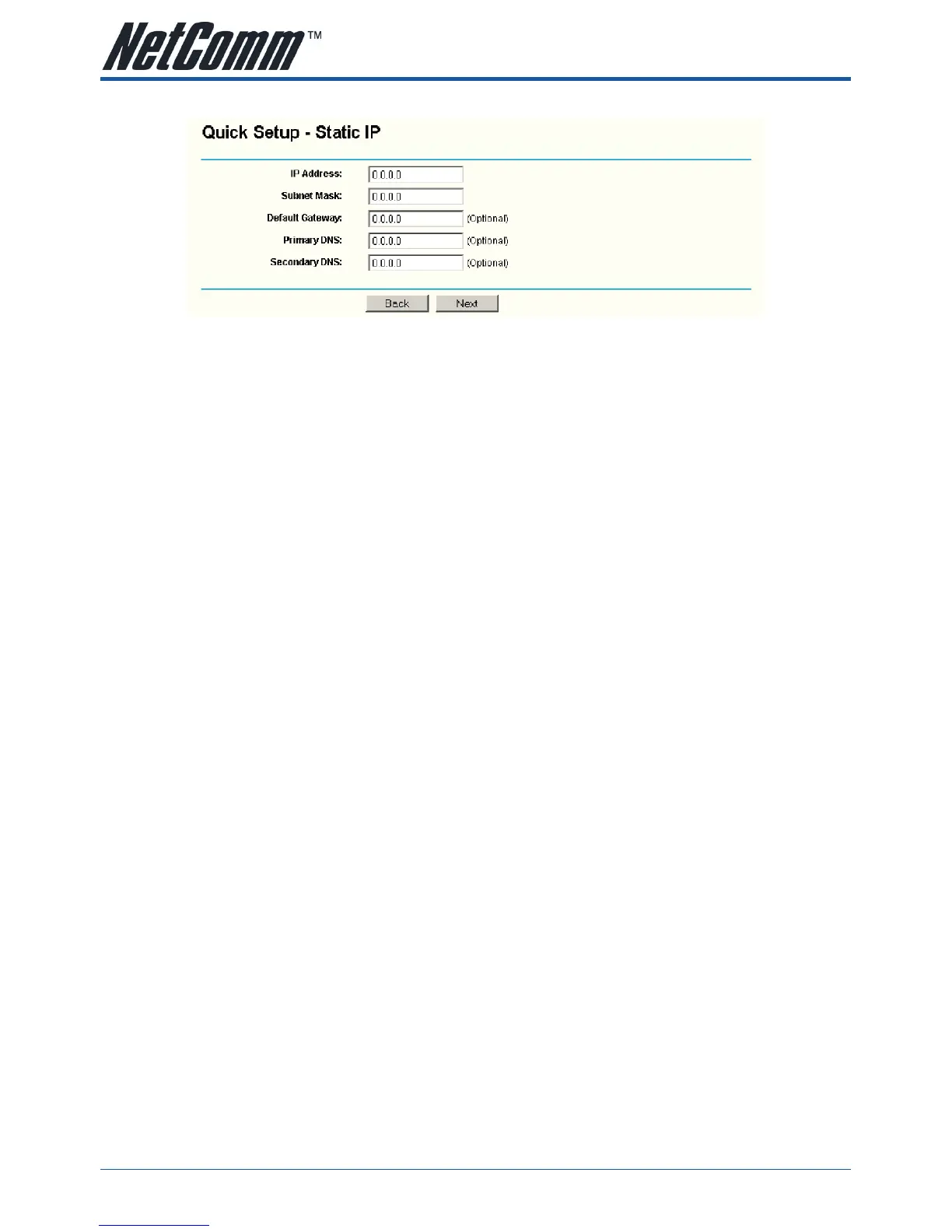

Figure 4-8 Quick Setup - Static IP
Note - The IP parameters should have been provided by your ISP.
• IP Address - This is the WAN IP address as seen by external users on the Internet (including your ISP).
Enter the IP address into the field.
• Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually 255.255.255.0
• Default Gateway - Enter the gateway IP address into the box if required.
• Primary DNS - Enter the DNS Server IP address into the boxes if required.
• Secondary DNS - If your ISP provides another DNS server, enter it into this field.
Note - For other connection types please refer to section 5.4.2
