YML864 Rev1 NB504 User GuideNB504 User Guide
www.netcomm.com.au 49
5.7.2 Port Triggering
Some applications require multiple connections, like Internet games, video conferencing, Internet calling
and so on. These applications cannot work with a pure NAT router. Port Triggering is used for some of these
applications that can work with an NAT router. You can set up Port Triggering on this page shown in figure
5-27:

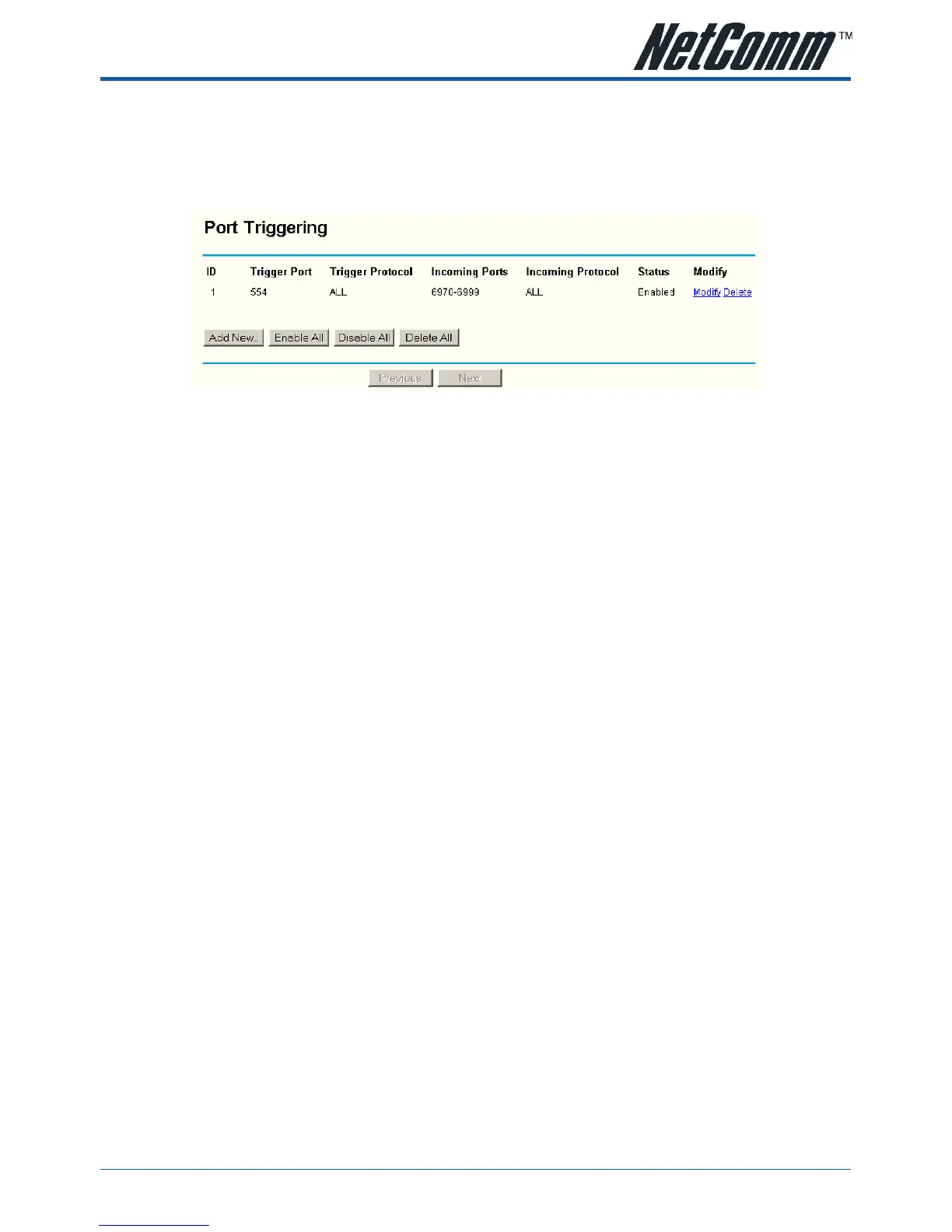

Figure 5-27 Port Triggering
Once configured, operation is as follows:
1. A local host makes an outgoing connection using a destination port number defined in the Trigger Port
field.
2. The router records this connection, opens the incoming port or ports associated with this entry in the
Port Triggering table, and associates them with the local host.
3. When necessary the external host will be able to connect to the local host using one of the ports defined
in the Incoming Ports field.
• Trigger Port - The port for outgoing traffic. An outgoing connection using this port will “Trigger” this rule.
• Trigger Protocol - The protocol used for Trigger Ports, either TCP, UDP, or All (all protocols supported by
the router).
• Incoming Ports Range - The port or port range used by the remote system when it responds to the
outgoing request. A response using one of these ports will be forwarded to the PC that triggered this rule.
You can input at most 5 groups of ports (or port section). Every group of ports must be set apart with “,”.
For example, 2000-2038, 2050-2051, 2085, 3010-3030.
• Incoming Protocol - The protocol used for Incoming Ports Range, either TCP or UDP, or ALL (all protocols
supported by the router).
• Status - The status of this entry either Enabled or Disabled.
