To Reserve IP addresses:
1. Click the Add New button. (Pop-up figure 5-23)
2. Enter the MAC address (The format for the MAC Address is XX-XX-XX-XX-XX-XX.) and IP address in
dotted-decimal notation of the computer you wish to add.
3. Click the Save button when finished.

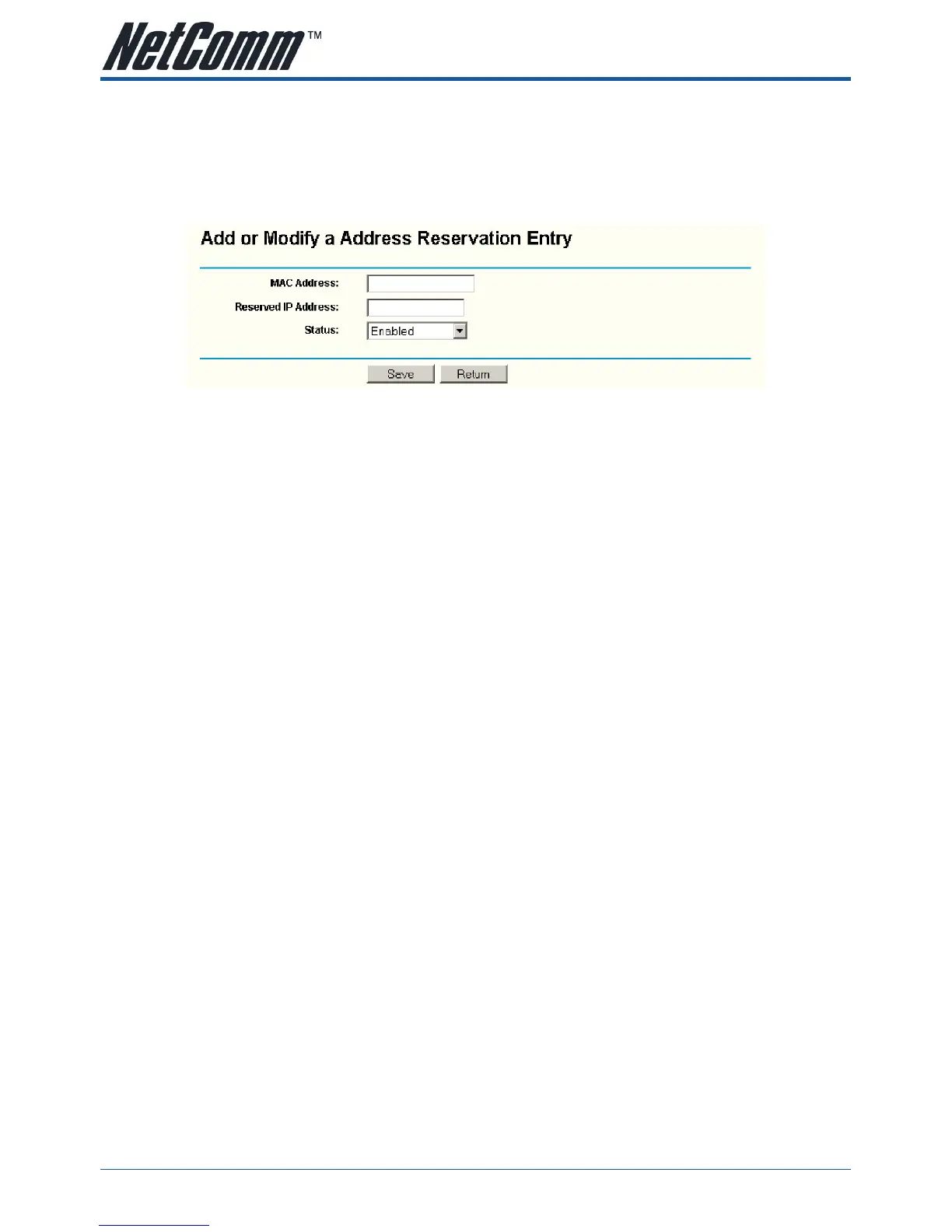

Figure 5-23 Add or Modify a Address Reservation Entry
To modify or delete an existing entry:
1. Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete.
2. Modify the information.
3. Click the Save button.
Click the Enable All button to make all entries enabled
Click the Disabled All button to make all entries disabled.
Click the Delete All button to delete all entries
Click the Next button to go to the next page and Click the Previous button to return the previous page.
Note: The function won’t take effect until the router reboots.
