CHAPTER
FOUR
INPUT AND OUTPUT PORTS
4.1 Rear Side

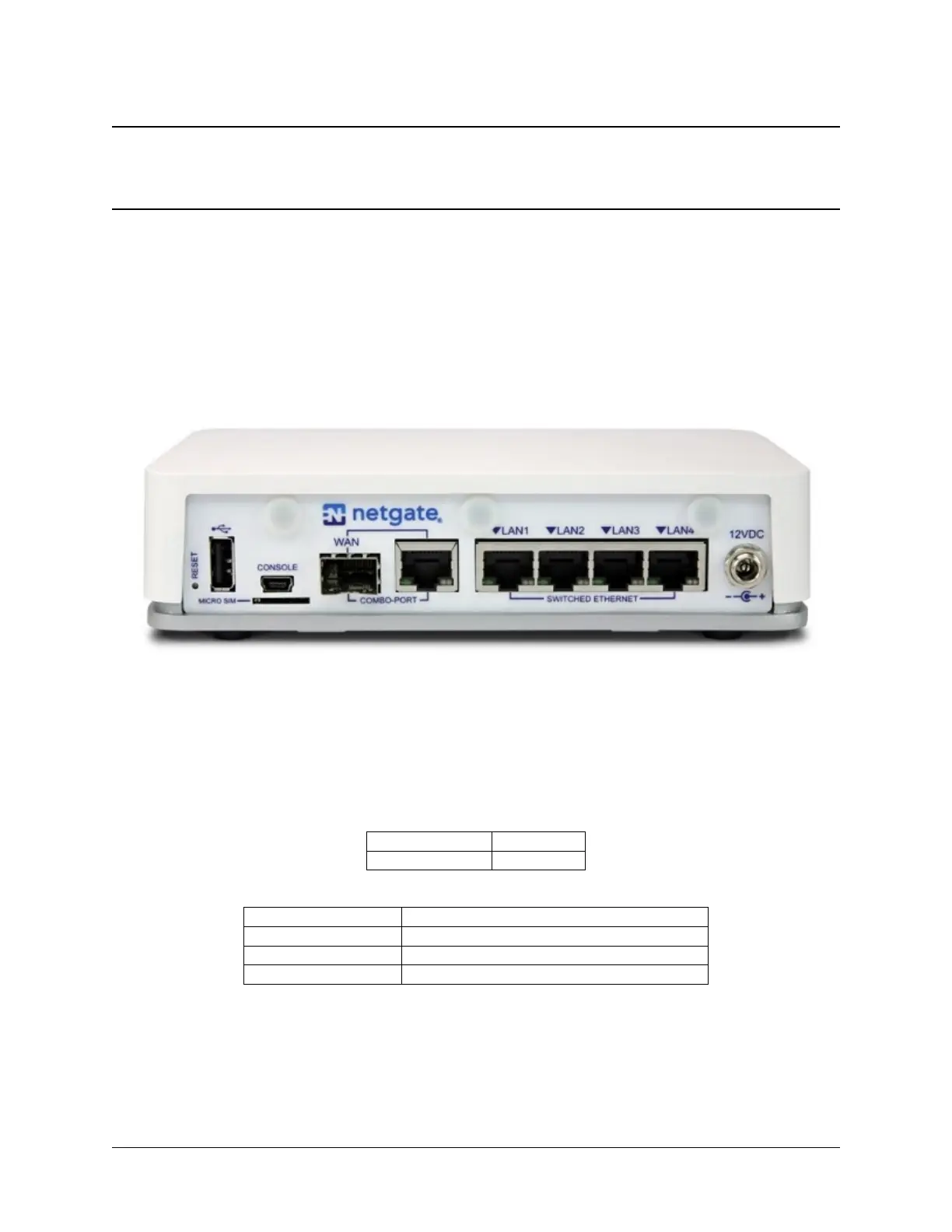

Fig. 1: Rear view of the Netgate 2100 Firewall Appliance
The items in this image are described by entries in Routed Ethernet, Switched Ethernet, and Other Ports.
4.1.1 Routed Ethernet
The WAN Combo-Port is shared between an RJ-45 port and an SFP port. Only one port can be used.
Interface Name Port Name
WAN mvneta0
LED Pattern Description
Left LED only green Flashes with 1Gb traffic, solid with link.
Both LEDs green Both flash with 100Mb traffic, solid with link.
Right LED only green Flashes with 10Mb traffic, solid with link.
13
