Security Gateway Manual SG-2100

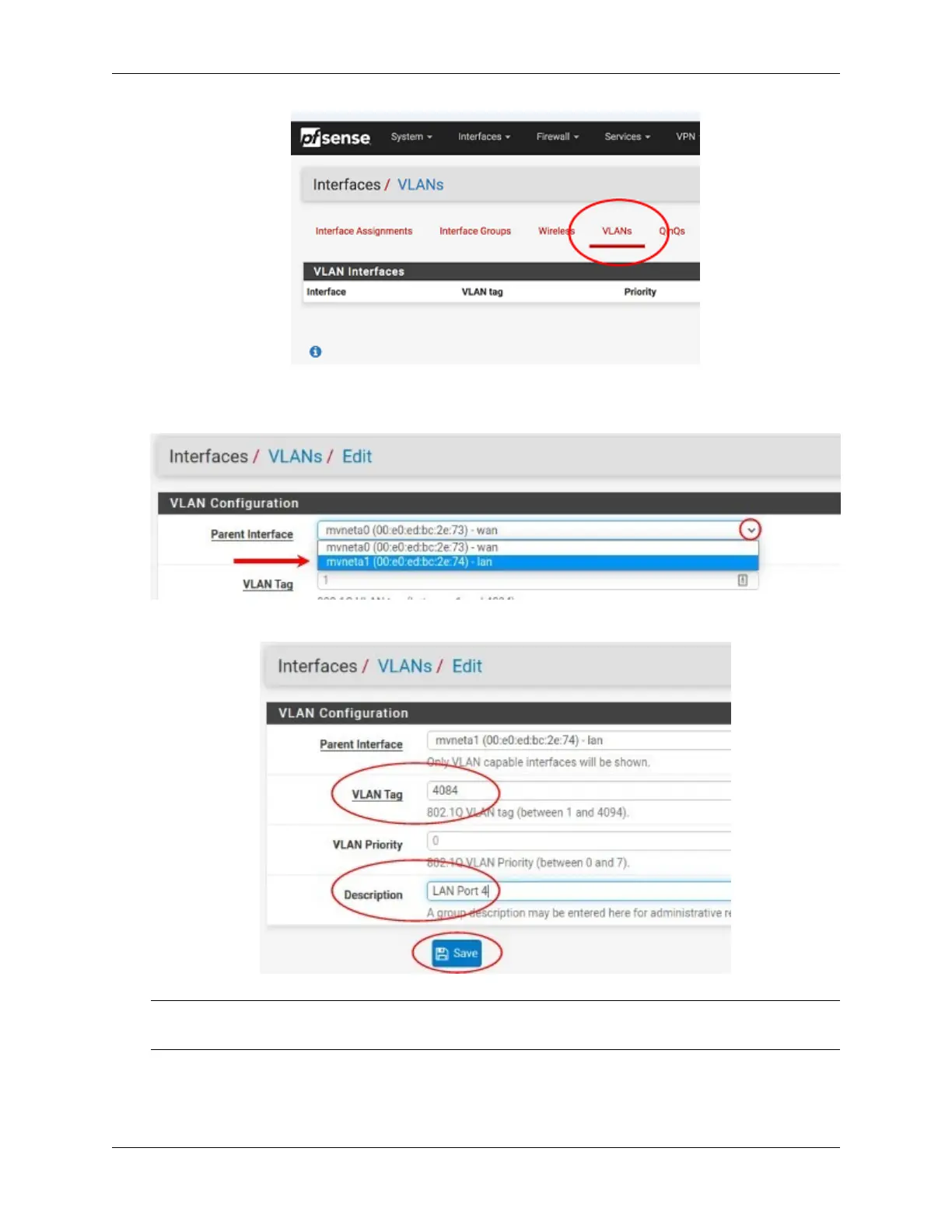

4. In the lower right-hand corner of the screen, click + Add.
5. Choose mvneta1 (MAC Address) - lan from the Parent Interface drop-down menu.
6. Set the VLAN Tag to 4084. Type Lan port 4 as the Description. Click Save.
Note: This guide uses 4084 as an example. The value for the tags must be unique for each VLAN and must
be between 1 and 4094. Avoid using values that are already in use. Best practice is not to use 1.
7. Go to the Interface Assignments tab.
8. Ensure Available network ports: is correct. It is VLAN 4084 on mvneta1 - lan (Lan port 4) in this example.
© Copyright 2022 Rubicon Communications LLC 45
