NETGEAR C3700 User Manual

Manage Your Network
71
N600 WiFi Cable Modem Router Model C3700
View Logs of Modem Router Activity
The log is a detailed record of the websites you have accessed or attempted to access. Up to
256 entries are stored in the log. Log entries display only when keyword blocking is enabled.
No log entries are made for the trusted LAN client.
 To view logs:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Administration > Logs.

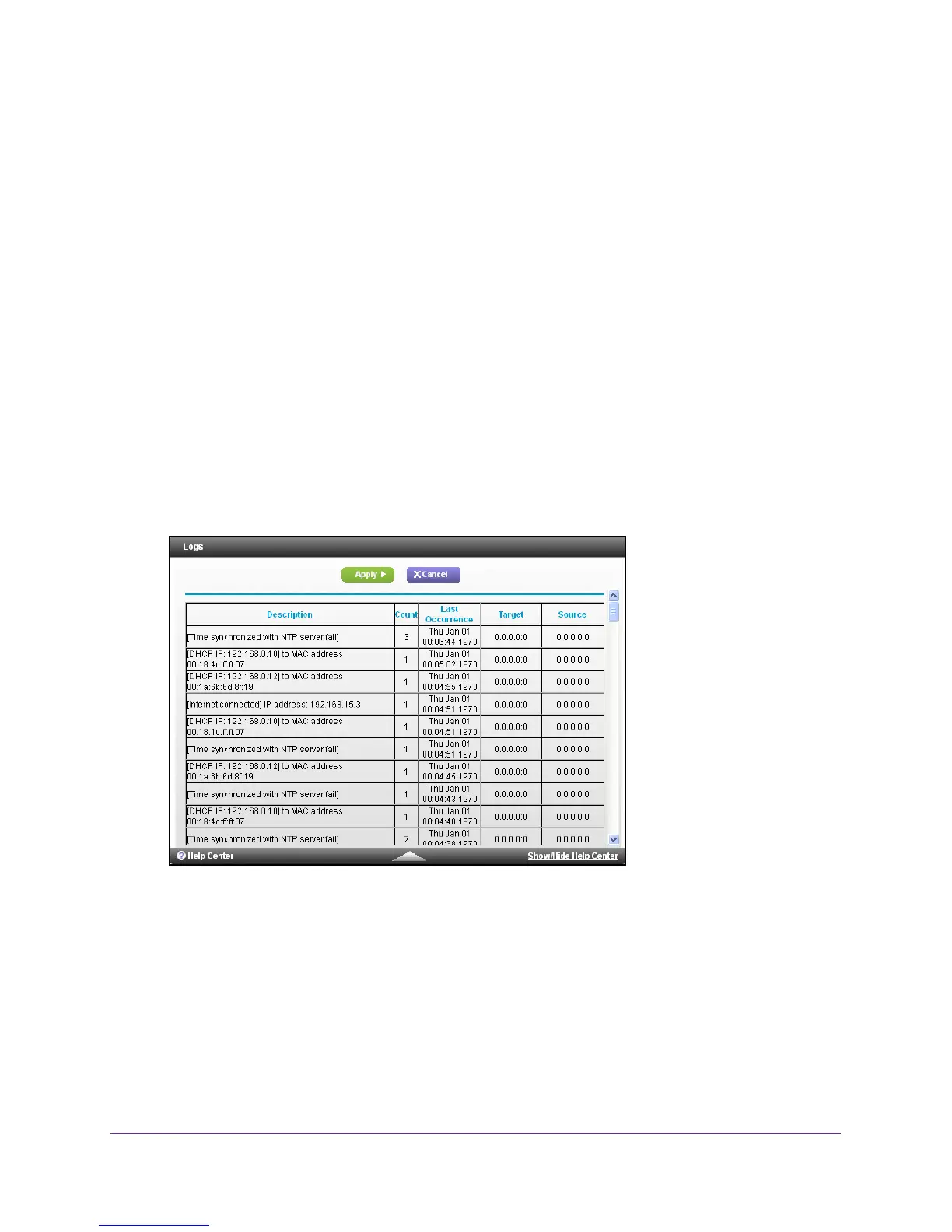

The log screen shows the following information:
• Description.
The action that occured.
• Count.
The number of occurences.
• Last Occurrence.
The date and time the log entry was recorded.
• T
arget. The name or IP address of the website or news group visited or to which
access was attempted.
• Source.
The source IP address of the initiating device for this log entry.

NETGEAR C3700 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Memory card slot(s)	No
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Product type	Tabletop router
Product color	Black
Power source type	DC
Security algorithms	WPA, WPA2-PSK
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	41 mm
Width	113 mm
Height	193 mm
Weight	352 g
