Specify Internet Port Settings
85
N600 WiFi Cable Modem Router Model C3700
If the service that you want to add is not in the list, create a custom service. See Add a
Custom Port Forwarding Service on page 85.
9. In the Server IP Address field, enter the IP address of the computer that will provide the
service.
10. Click the Add button.
The service displays in the list.

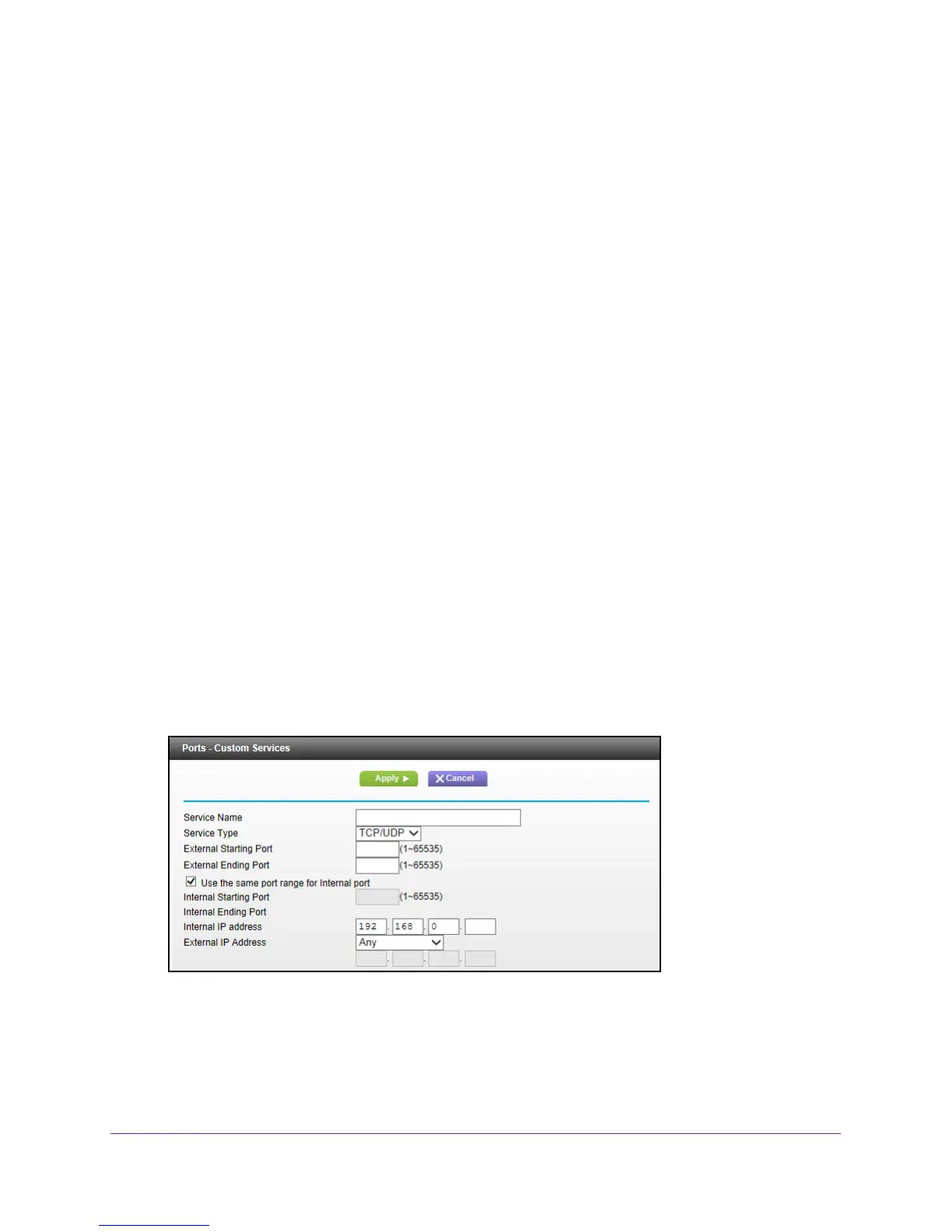

Add a Custom Port Forwarding Service
To add a custom service:
1. Find out which port number or range of numbers the application uses.
You can usually find this information by contacting the publisher of the application or user
groups or news groups.
2. Launch a web browser from a computer or wireless device that is connected to the network.
3. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
4. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
5. Select ADV
ANCED > Advanced Setup > Port Forwarding/Port Triggering.
6. Leave the Port Forwarding radio button selected as the service type.
7. Click the Add Custom Service button.
8. In the Service Name field, enter a descriptive name.
9. In the Service T
ype field, select the protocol. If you are unsure, select TCP/UDP.
10. In the External Starting Port field, enter the beginning port number
.
If the application uses a single port, enter the same port number in the Ending Port field.

Table of Contents

Other manuals for NETGEAR C3700

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR C3700 and is the answer not in the manual?

NETGEAR C3700 Specifications

General IconGeneral
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, 802.11b, 802.11g
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)600 Mbit/s
WLAN data transfer rate (first band)300 Mbit/s
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Memory card slot(s)No
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Product typeTabletop router
Product colorBlack
Power source typeDC
Security algorithmsWPA, WPA2-PSK
Cables includedLAN (RJ-45)
Weight and Dimensions IconWeight and Dimensions
Depth41 mm
Width113 mm
Height193 mm
Weight352 g
