NETGEAR C3700 User Manual

Manage Your Network
73
N600 WiFi Cable Modem Router Model C3700
Manage the Modem Router Configuration File
The configuration settings of the modem router are stored within the modem router in a
configuration file. You can back up (save) this file to your computer, restore it, or reset it to the
factory default settings.

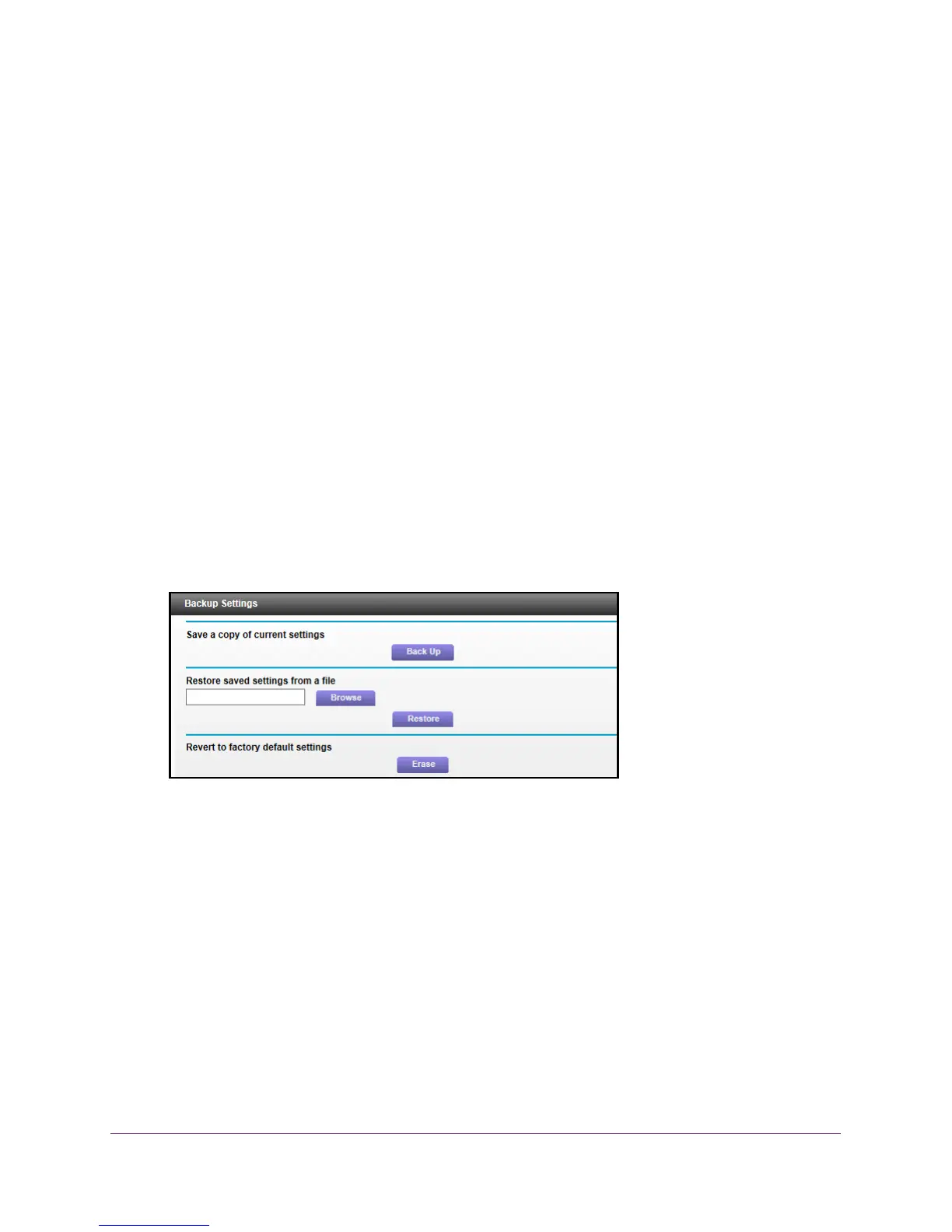

Back Up Settings
 To back up the modem router’s configuration settings:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Administration > Backup Settings.
5. Click the Back Up button.
6. When prompted, specify a
location on your network.
A copy of the current settings is saved in the location you specified.
Restore Configuration Settings
 To restore configuration settings that you backed up:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.

NETGEAR C3700 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Memory card slot(s)	No
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Product type	Tabletop router
Product color	Black
Power source type	DC
Security algorithms	WPA, WPA2-PSK
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	41 mm
Width	113 mm
Height	193 mm
Weight	352 g
