Table 1. LED descriptions (Continued)
• Green. A powered-on device is connected to the Ethernet
port at 1000 Mbps.
• Amber. A powered-on device is connected to the Ethernet
port at 10 Mbps or 100 Mbps.
• Off. No device is connected to the Ethernet port.
• Blinking green or amber.The Ethernet port is processing
traffic.
Ethernet
• Solid green.The Tel 1 or 2 port is online.
• Blinking green.The Tel 1 or 2 port is processing a call or
the phone is off-hook.
• Off.The Tel 1 or 2 port is not in use.
Tel 1 and 2
Rear Panel
The connections and button on the rear panel are shown in the following figure.

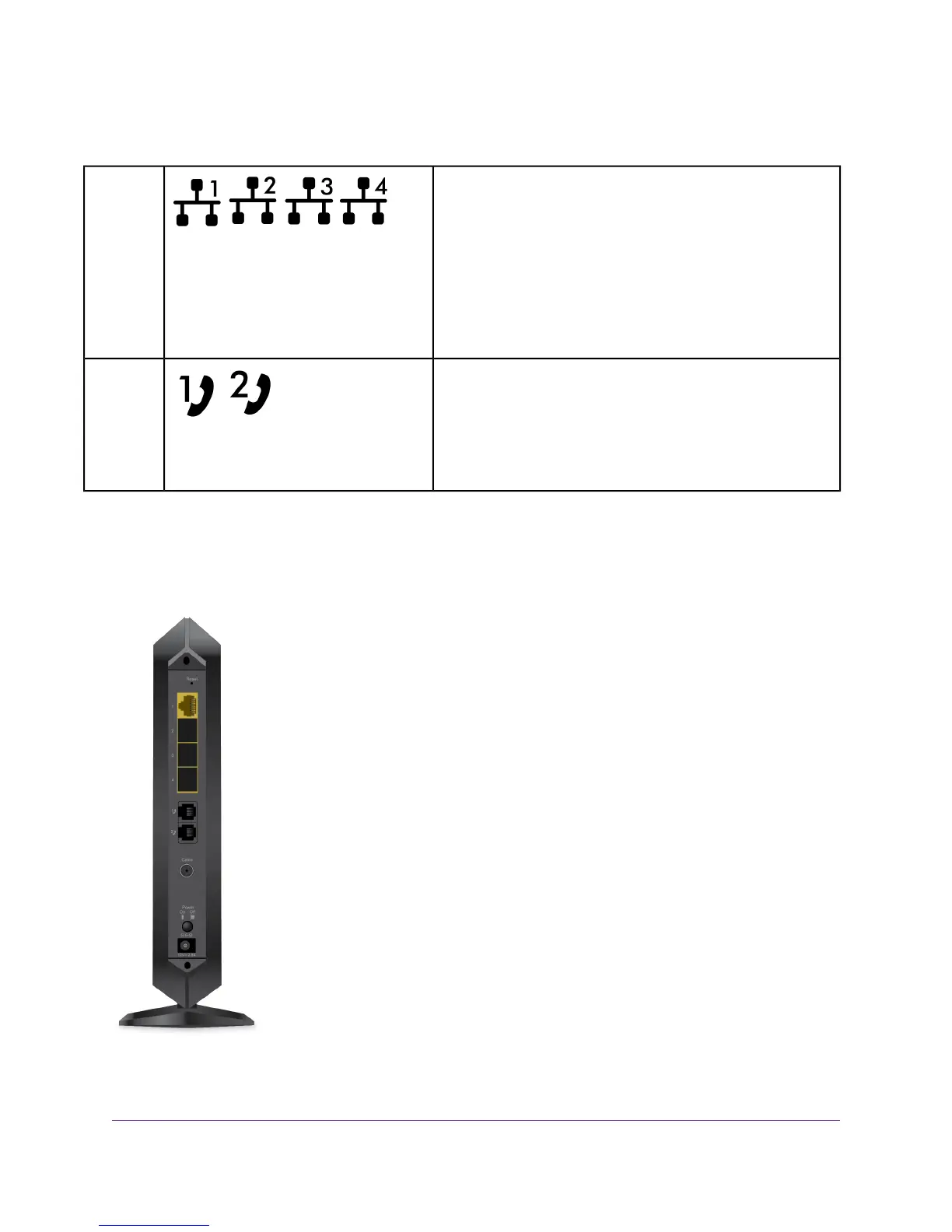

Figure 3. Rear panel
Hardware Setup
8
Voice Cable Modem
