Reference Manual for the ADSL Modem Wireless Router DG834G
3-6 Configuring Your Internet Connection
v1.3, March 2007
2. Connect the modem router to the ADSL filter.
a. Using the included phone cable with RJ-11 jacks, connect the ADSL port (B) of the
modem router to the ADSL port (C) of the two-line filter.

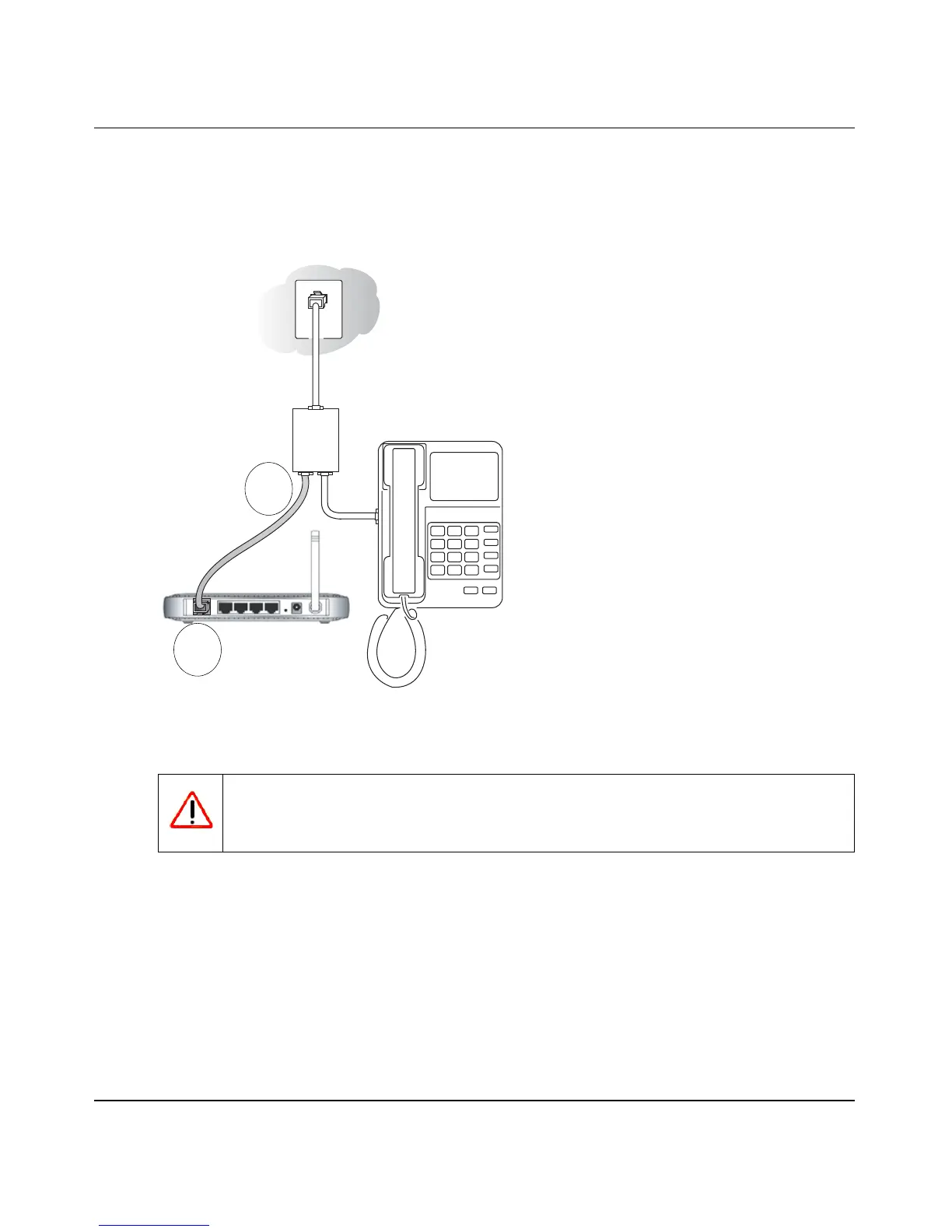

Figure 3-7
Warning: Improperly connecting a filter to your modem router will block your
ADSL connection.
Phone
DSL
Line
C
B
