NETGEAR FS728TP-100NAS

FS728TP Smart Switch FS728TP Smart Switch Software Administration Manual
Configuring Switching Settings 4-31
v1.0, December 2007
2. Select the VLAN ID entry in the Interface Settings table.
3. Select the Status from the list in the provided field in the first row.
4. Click Apply to update the device.
Advanced
The Multicast Advanced menu contains the following options:
• “IGMP Snooping Configuration”
• “Multicast Group Configuration”
• “Multicast Group Membership”
• “Multicast Forward All”
IGMP Snooping Configuration
To configure Advanced IGMP Snooping:
1. Click Switching > Multicast > Advanced > IGMP Snooping Configuration.

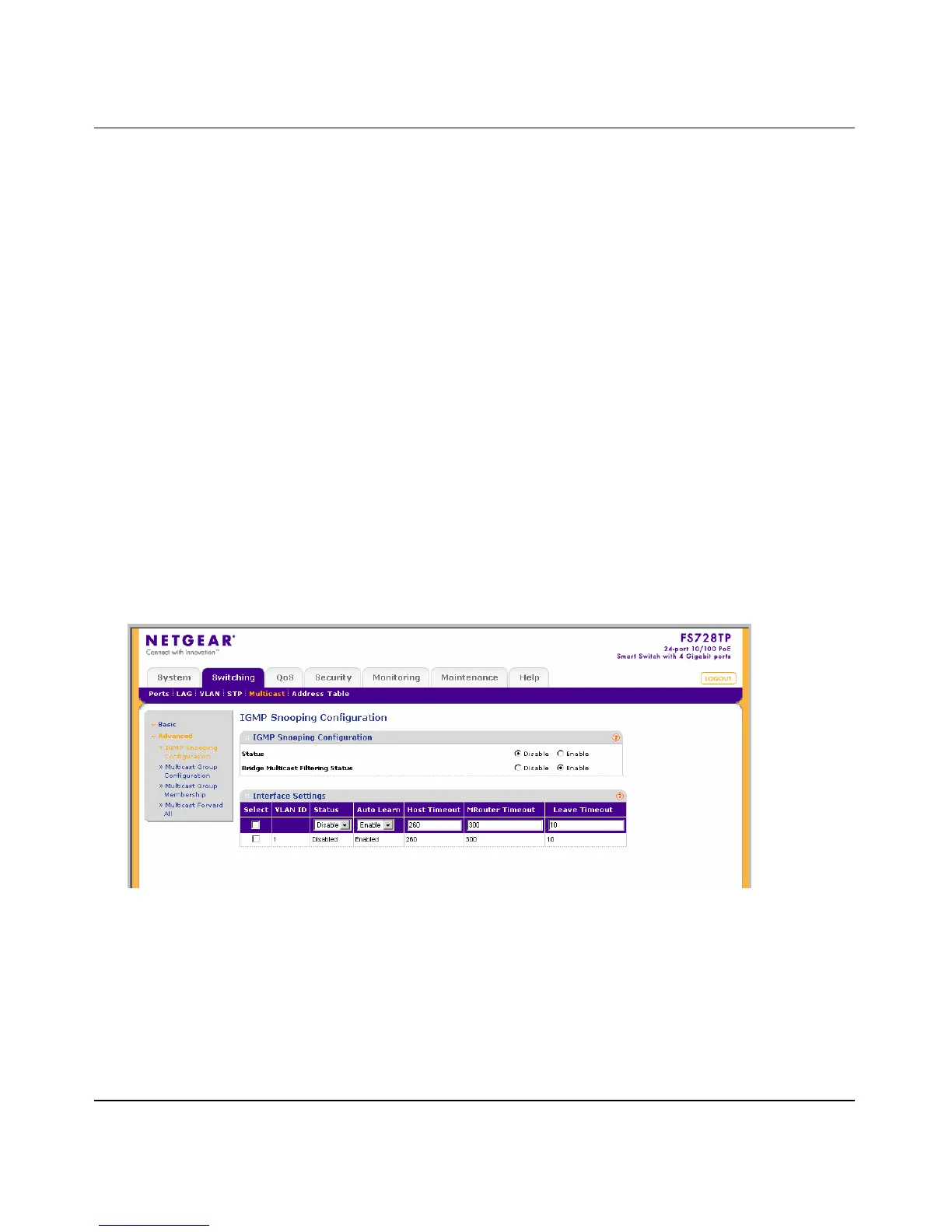

The Advanced
IGMP Snooping Configuration screen displays:
The IGMP Snooping Configuration screen contains the following fields:
IGMP Snooping Configuration
• Status – Select the IGMP Snooping status on the device. IGMP Snooping is operational if
both the Status and Bridge Multicast Filtering fields are enabled. The possible field values
are:
Figure 4-21
