NETGEAR FS728TP-100NAS

FS728TP Smart Switch FS728TP Smart Switch Software Administration Manual
4-16 Configuring Switching Settings
v1.0, December 2007
2. Select the VLAN entry.
3. Click Delete to remove the entry.
Advanced
The VLAN Advanced menu contains the following options:
• “VLAN Configuration”
• “VLAN Membership”
• “Port PVID Configuration”
VLAN Configuration
The Advanced VLAN Configuration screen provides information and global parameters for
configuring and working with VLANs.
To define VLAN properties:

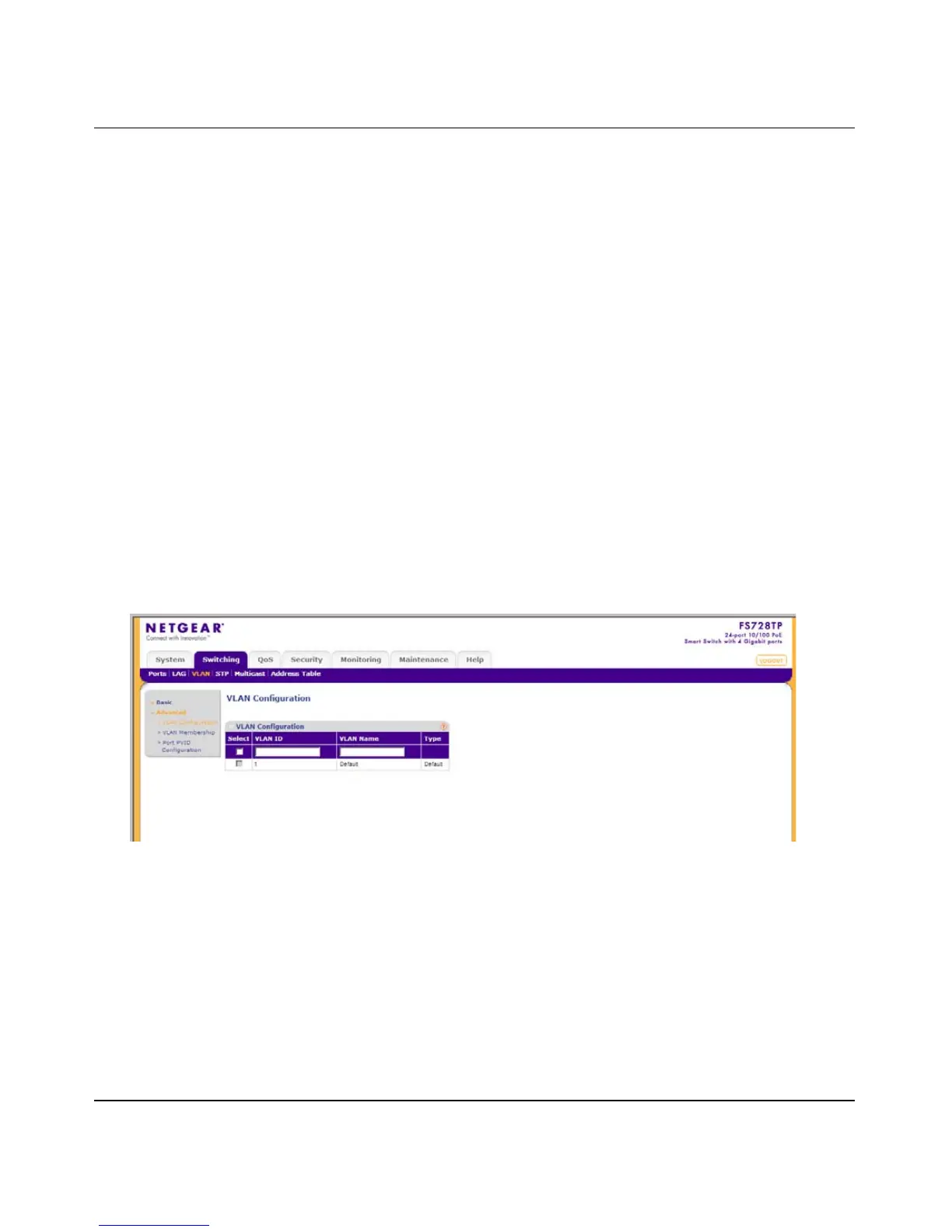

1. Click Switching > VLAN > Advanced > VLAN Configuration. The Advanced VLAN
Configuration screen displays:
The Advanced VLAN Configuration screen contains the following fields:
• VLAN ID – Enter the VLAN ID. The field range is 1-4093.
• VLAN Name – Enter the user-defined VLAN name.
• Type – Displays the VLAN type. The possible field values are:
– Static – The VLAN is user-defined.
Figure 4-11
