FS728TP Smart Switch FS728TP Smart Switch Software Administration Manual
5-6 Configuring QoS
v1.0, December 2007
To define bandwidth settings:

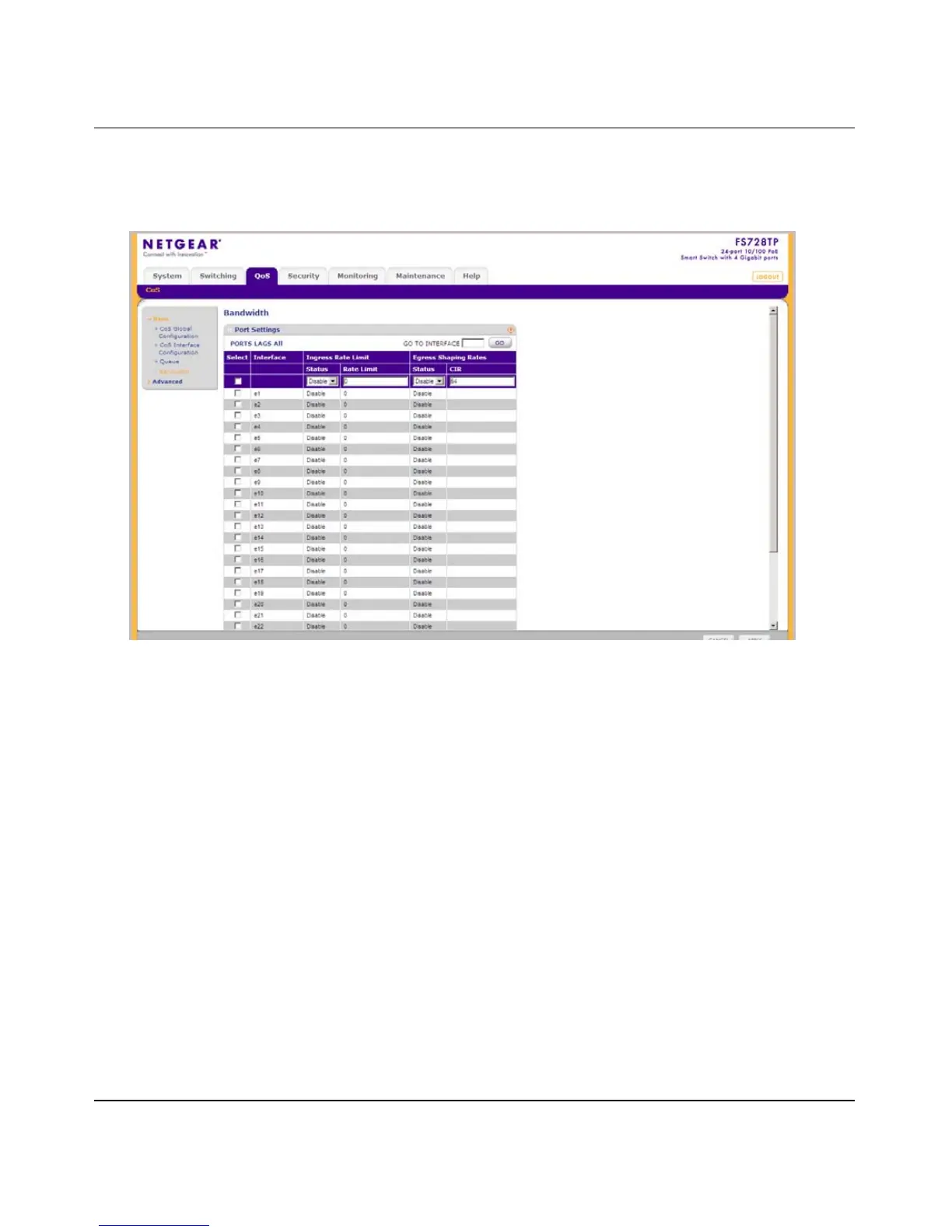

1. Click QoS > CoS > Basic > Bandwidth. The Bandwidth screen displays:
The Bandwidth screen contains the following fields:
• Interface – Displays the ports for which the bandwidth settings are displayed.
• Ingress Rate Limit Status – Select whether rate limiting is defined on the interface. The
possible field values are:
– Enable – Enable ingress rate limiting on the interface.
– Disable – Disable ingress rate limiting on the interface.
• Ingress Rate Limit – Enter the rate limit in kilobits per second. The possible field range is
70 to the maximum port speed. FE ports have a maximum speed of 100000 kilobits per
second and GE ports have a maximum speed of 1000000 kilobits per second. The default
value is 70 kilobits per second.
• Egress Shaping Rates Status – Select whether egress shaping is defined on the interface.
The possible field values are:
– Enable – Enable egress shaping rate on the interface.
Figure 5-4
