FS728TP Smart Switch FS728TP Smart Switch Software Administration Manual
Maintenance 8-7
v1.0, December 2007
To test cables:

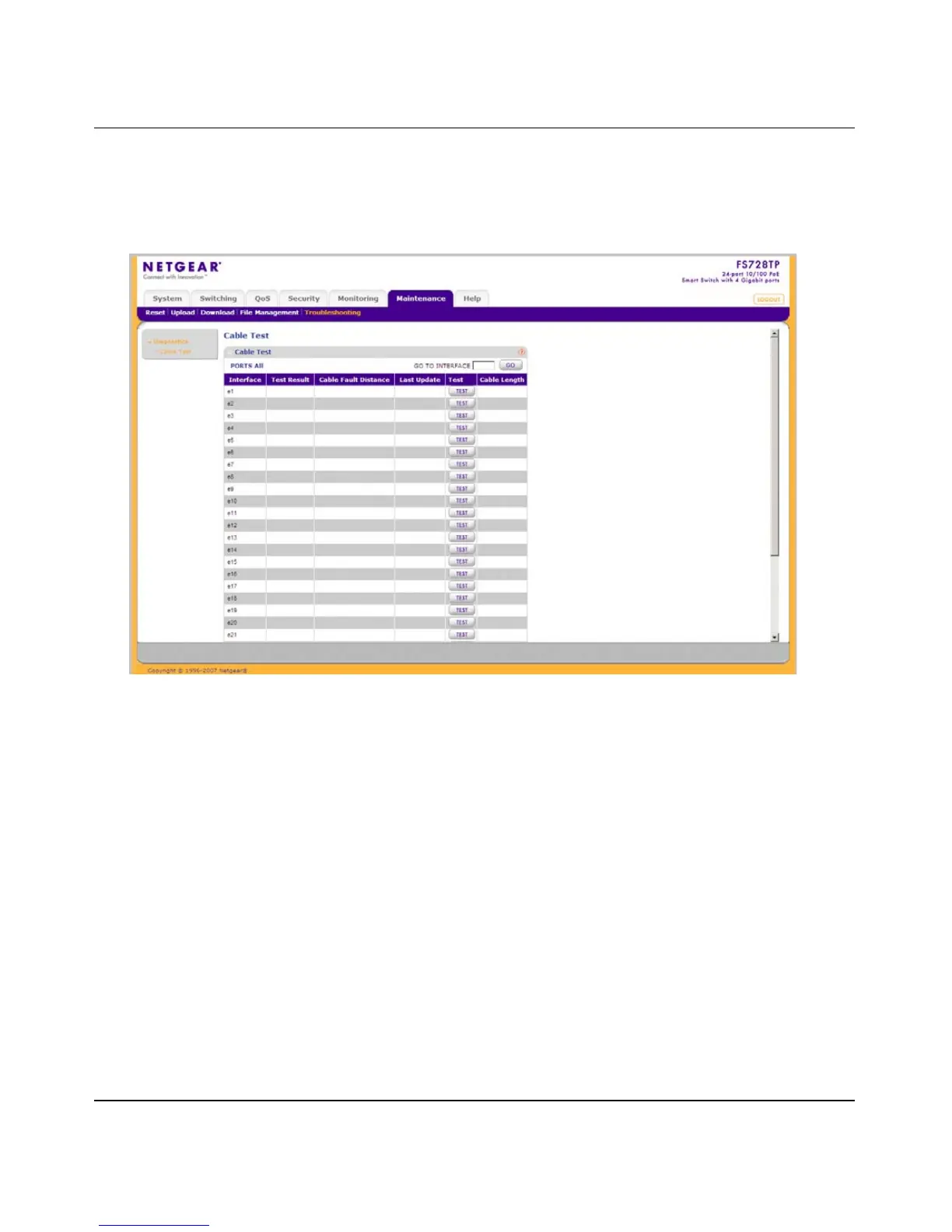

1. Click Maintenance > Troubleshooting > Diagnostics > Cable Test. The Cable Test screen
displays:
The Cable Test screen contains the following fields:
• Interface – Enter the port to which the cable is connected.
• Test Result – Displays the cable test results. Possible values are:
– No Cable – A cable is not connected to the port.
– Open Cable – A cable is connected on only one side.
– Short Cable – A short has occurred in the cable.
– OK – The cable passed the test.
• Cable Fault Distance – Displays the distance from the port where the cable error
occurred.
• Last Update – Displays the last time the port was tested.
• Test – The test results are displayed.
Figure 8-6
