Before configuring policies for classes whose match criteria are defined in a class map, a class
map must first be defined, or the name of the policy map to be created, added to, or modified must
first be specified. Class policies can be configured in a policy map only if the classes have defined
match criteria.
An aggregate policer can be applied to multiple classes in the same policy map, but an aggregate
policer cannot be used across different policy maps. Define an aggregate policer if the policer is
shared with multiple classes.
policers in one port cannot be shared with other policers in another device. Traffic from two
different ports can be aggregated for policing purposes.
To define policies:
1. Click QoS > CoS> Advanced > Policy Table. The Policy Table screen displays:
The Policy Table screen contains the following fields:
• Policy Name – Define the user-defined policy name.
• Class Map – Select a class map for the class.
• Action – Define the action assigned to incoming packets exceeding the CIR.
– Type – Set the packets’ DSCP, Queue, or CoS tag.

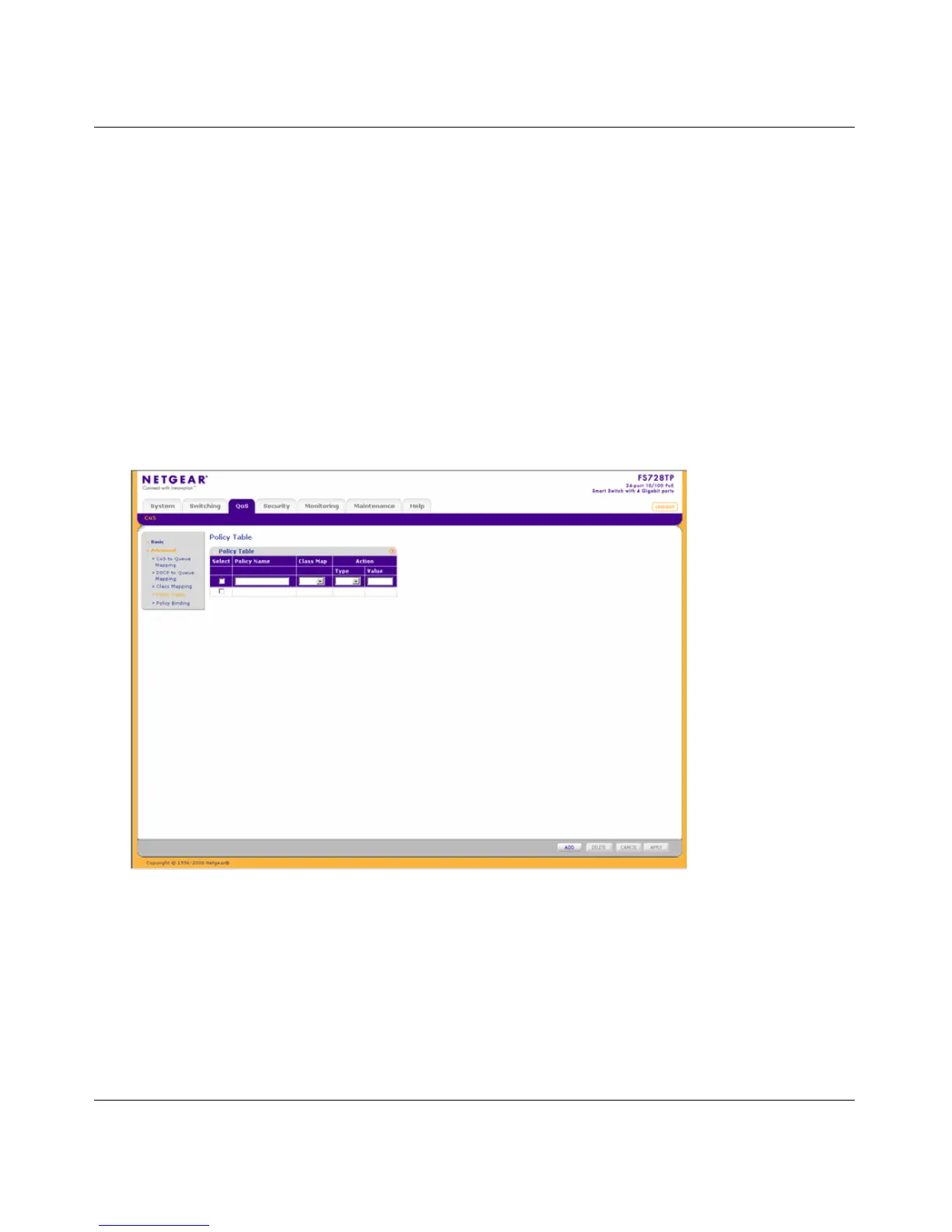

Figure 5-8
