User Manual for the NETGEAR 10/100/1000 Mbps CardBus Adapter GA511
2-6 Introduction
Hardware Description
As illustrated in the figure below, the GA511 Gigabit CardBus Adapter has an RJ-45 connector
port and two LEDs.

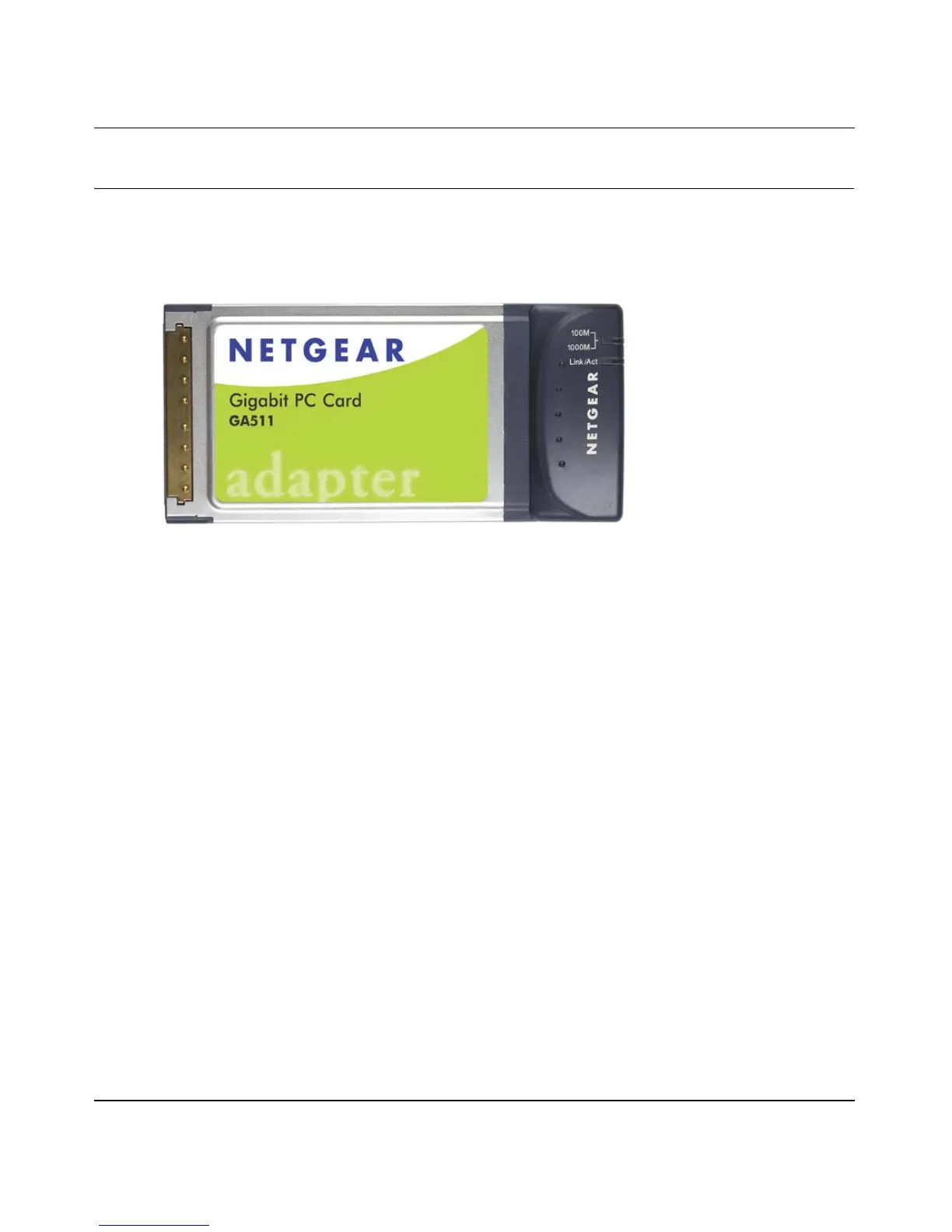

Figure 2-1: Front Panel of Model GA511 Gigabit Adapter
The front panel of the GA511 has two LEDs: one for the port speed option (100 Mbps and 1000
Mbps) and one LED for the data transfer status.
