Network Settings
26
ProSAFE 8-Port and 16-Port Gigabit Web Managed Click Switch

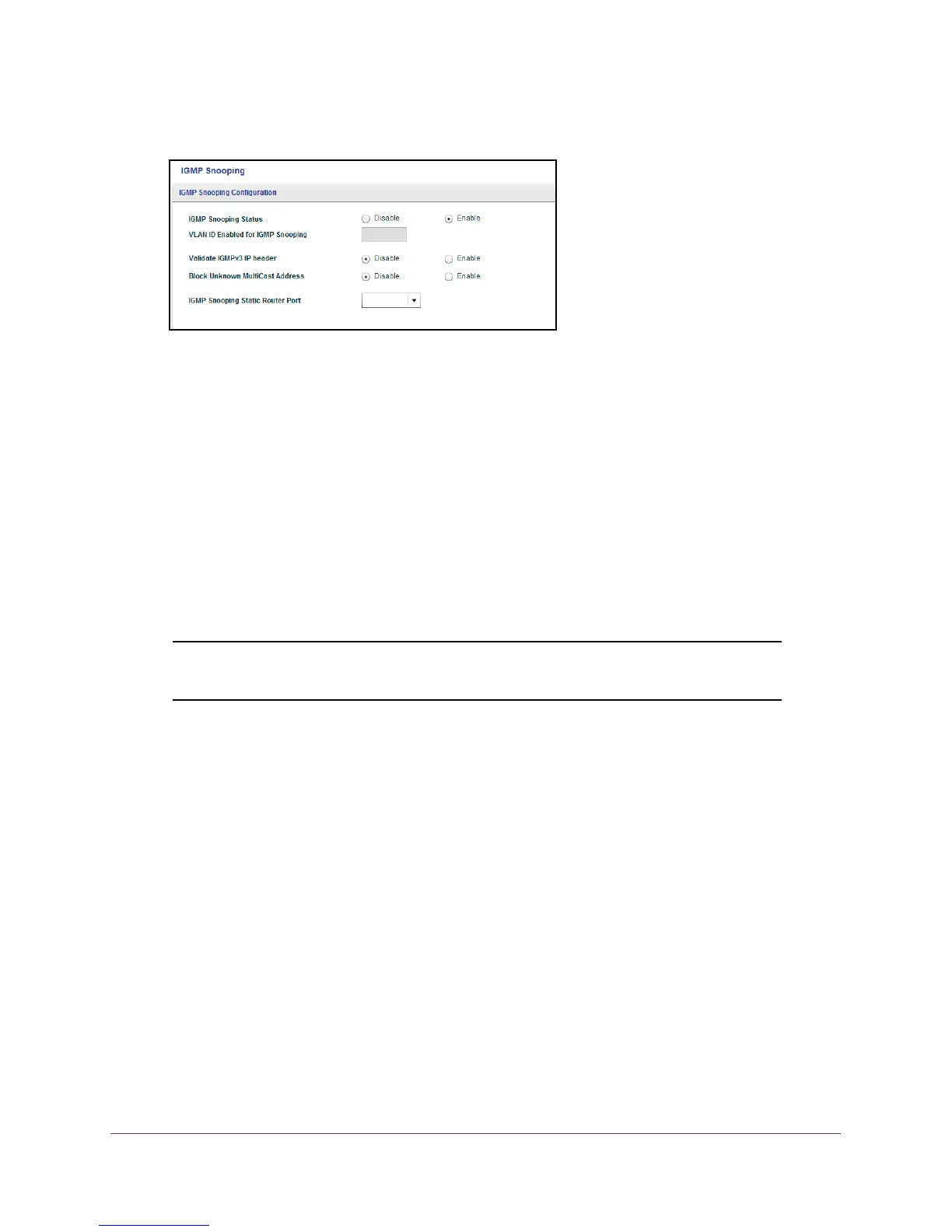

6. Select System > Multicast.
7. Make sure that the IGMP Snooping Status Enable radio button is selected.
8. In the VLAN ID Enabled for IGMP Snooping field, type the name of the VLAN.
9. Click the APPL
Y button.
Your settings are saved.
Set Up Link Aggregation Groups
Link aggregation groups (LAGs) allow you to combine multiple Ethernet links into a single
logical link. Network devices treat the aggregation as if it were a single link, which
increases fault tolerance and load sharing. Configure LAG membership before you
enable the LAG.
Note: LAGs are supported in switch model GSS116E, but they are not
supported in switch model GSS108E.
Use Browser-Based Access to Enable LAGs
To enable LAGs:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
of
f-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser
, enter the IP address of the switch.
If you do not know the IP address of the switch, see Access the Switch Using a Web
Browser on page 14.
The login window opens.
4. Enter the switch’
s password in the password field.
The switch’s default password is password.
