NETGEAR M4100 Series Hardware Installation Guide

7
NETGEAR Managed Switch

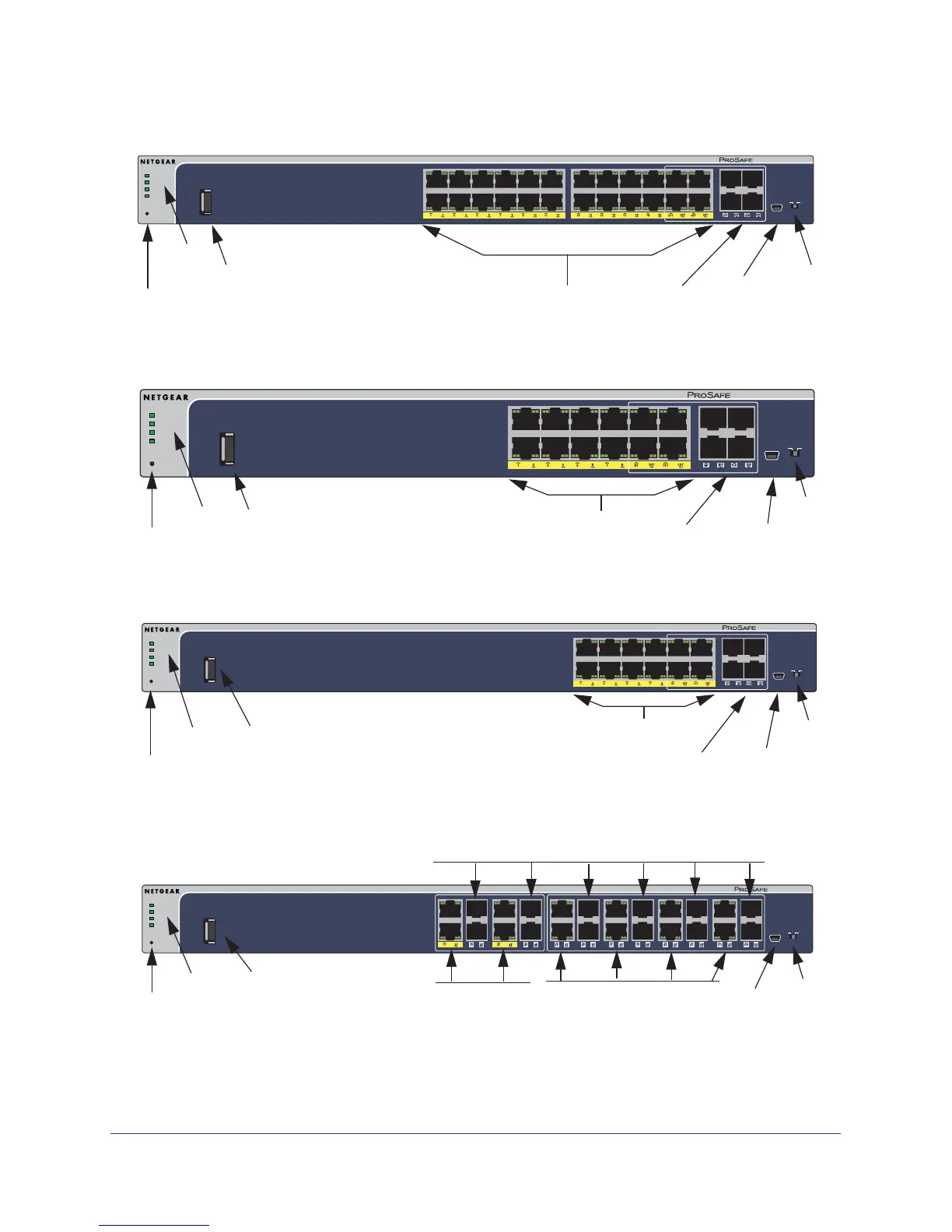

Figure 9. M4100-24G-POE+ front panel
Figure 10. M4100-D12G-POE+ front panel
Figure 11. M4100-12G-POE+ front panel
Figure 12. M4100-12GF front panel
Fan
PD
Reset
MaxPoE
Power
USB
M4100-24G-POE+
PoE (Max 30W per port):
Off = No PD
Green = PoE Powered
Yellow = PoE Fault
RJ45 SPD/Link/ACT mode:
Green = 1G
Yellow = 10/100M
Blink = ACT
SFP SPD/Link/ACT mode
Green = Link at 1G
Yellow = Link at 100M
Blink = ACT
Console(USB)
115200,N,8,1
USB DB9
PoE SPD/Link/ACT
SPD/Link/ACT
SFP ports
USB port
LEDs
Reset button
POE ports
Mini
USB port
Console
switch
Fan
PD
Reset
MaxPoE
Powe r
USB
PoE (Max 30W per port):
Off = No PD
Green = PoE Powered
Yellow = PoE Fault
PoE-PD (Port 1, 2):
Off = No PSE
Green = PSE 30w
Yellow = PSE 15.4w
RJ45 SPD/Link/ACT mode:
Green = 1G
Yellow = 10/100M
Blink = ACT
SFP SPD/Link/ACT mode
Green = Link at 1G
Yellow = Link at 100M
Blink = ACT
Console(USB)
115200,N,8,1
USB DB9
PoE SPD/Link/ACT
SPD/Link/ACT
M4100-D12G-POE+
SFP ports
USB port
LEDs
Reset button
POE ports
Mini
USB prt
Console
switch
Fan
PD
Reset
MaxPoE
Power
USB
M4100-12G-POE+
PoE (Max 30W per port):
Off = No PD
Green = PoE Powered
Yellow = PoE Fault
RJ45 SPD/Link/ACT mode:
Green = 1G
Yellow = 10/100M
Blink = ACT
SFP SPD/Link/ACT mode
Green = Link at 1G
Yellow = Link at 100M
Blink = ACT
Console(USB)
115200,N,8,1
USB DB9
PoE SPD/Link/ACT
SPD/Link/ACT
SFP ports
USB port
LEDs
Reset button
POE ports
Mini
USB prt
Console
switch
Fan
PD
Reset
MaxPoE
Power
USB
PoE (Max 30W per port):
OFF = No PD
Green = PoE Powered
Yellow = PoE Fault
Link/ACT mode:
Green = Link at 1G
Yellow = Link at 10/100M
Blink = ACT
SPF Link/Act mode:
Green = Link at 1G
Yellow = Link at 100M
Blink = ACT
Console(USB)
115200,N,8,1
USB DB9
PoE SPD/Link/ACT
SPD/Link/ACT
M4100-12GF
SPD Link/ACT
SPD/Link/ACT
SFP
Green = 1G
Yellow = 10/100M
Link/Act mode
OFF = No Link
Green = Link
Blinking = ACT
USB Port
LEDs
Reset button
POE ports
Mini
SFP ports
USB prt
RJ45 ports
Console
switch
