Hardware Setup
12
N600 Wireless Dual Band Router WNDR3400v3
USB
• Solid green. USB drive is properly mounted.
• Off. No
USB drive is detected. USB drive is missing or not mounted correctly.
LAN ports
1–4
• Solid green. The LAN port has detected a 100 Mbps link with an attached device.
• So
lid amber. The LAN port has detected a 10 Mbps link with an attached device.
• Off. No
link is detected on this port.
Internet
• Solid amber. The IP address was not acquired.
• So
lid green. An IP address was received; ready to transmit data.
• Off. No
Ethernet cable is connected between the router and the modem.
5 GHz
• Solid blue. The wireless radio is operating.
• Off. T
he wireless radio is off.
2.4 GHz
• Solid green. The wireless radio is operating.
• Off. T
he wireless radio is off.
Power/Test • Solid amber. The unit is starting up after being powered on.
• So
lid green. The power is on and the router is ready.
• Blinking amber. A firmware update is in progress.
• Blin
king green. The firmware is corrupt.
• Off. Po
wer is not supplied to the router.

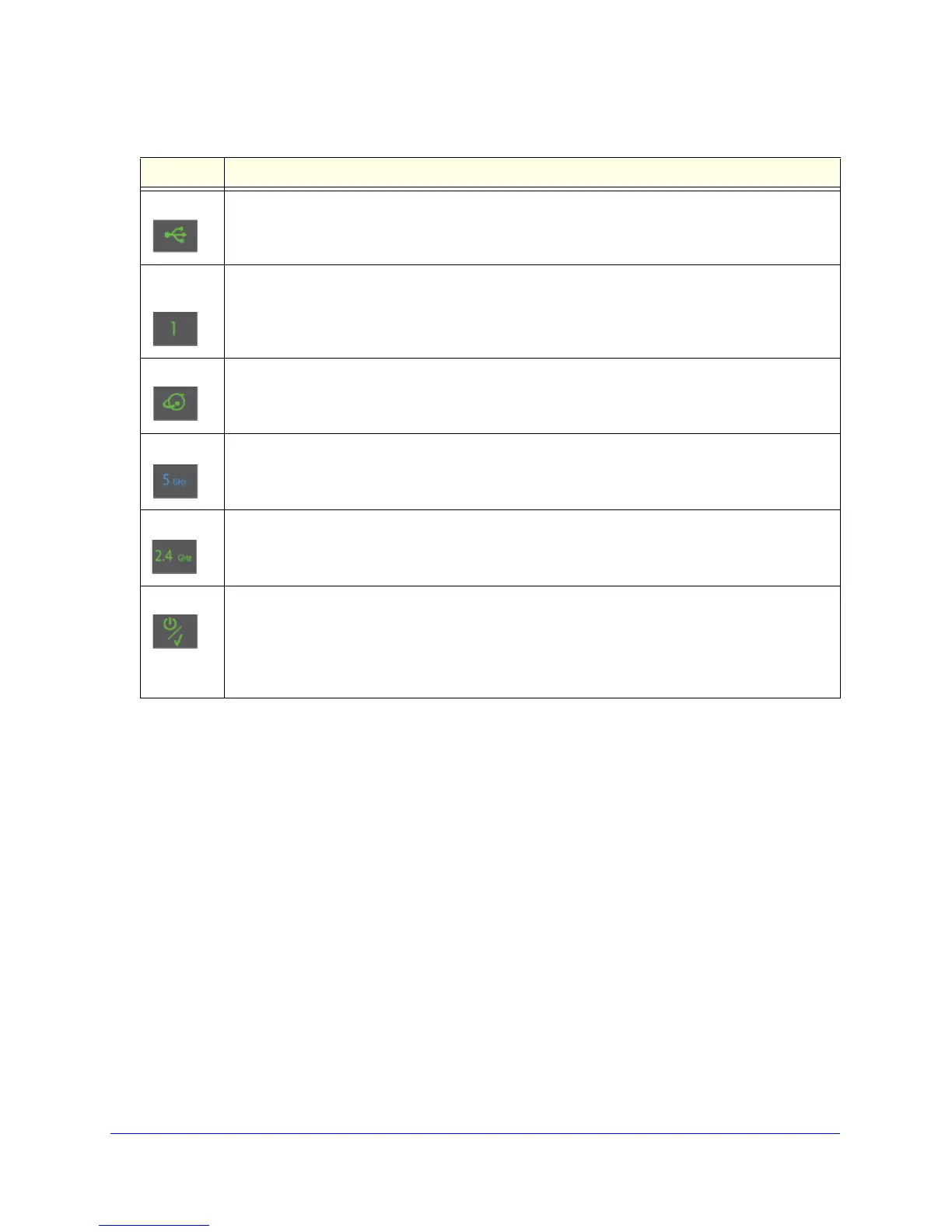

Table 1. Front panel LED descriptions (continued)
