NETGEAR NIGHTHAWK R7000 User Manual

Specify Network Settings
113
Nighthawk AC1900 Smart WiFi Router Model R7000

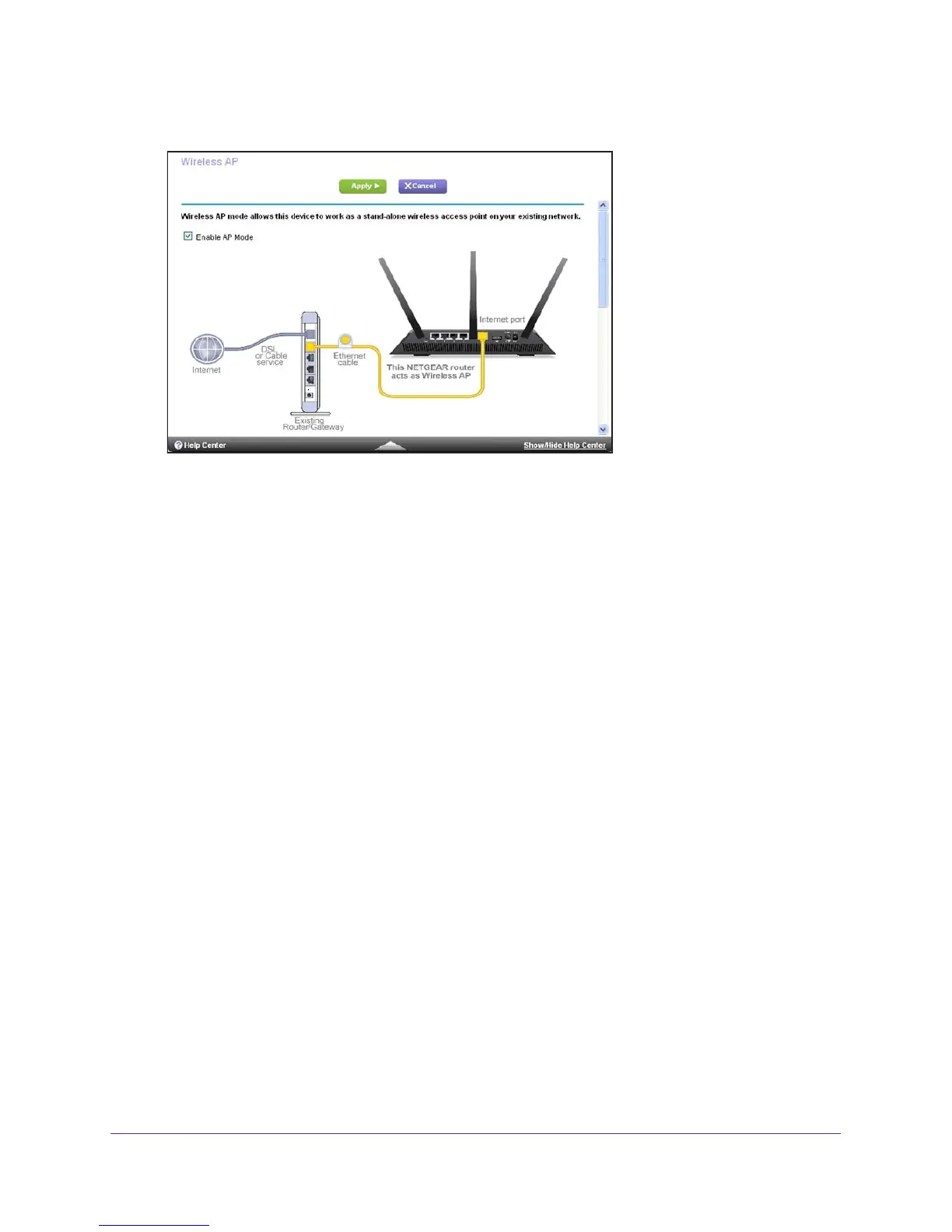

5. Select ADVANCED > Advanced Setup > Wireless AP.
6. Select the Enable AP Mode check box.
7. Scroll down and select the radio button for the IP address setting that you want to use:
• Get dynamically from existing router. The other router on the network assigns an
IP address to this router while this router is in AP mode.
• Enable fixed IP settings on this device (not recommended). Use this setting if you
want to manually assign a specific IP address to this router while it is in
AP mode.
Using this option effectively requires advanced network experience.
Note: To avoid interference with other routers or gateways in your network,
NETGEAR recommends that you use different wireless settings on each
router. You can also turn off the wireless radio on the other router or gateway
and use the R7000 only for wireless client access.
8. Click the Apply button.
The IP address of the router changes, and you are disconnected.
9. T
o reconnect, close and restart your browser and type http://wwwrouterlogin.net.

NETGEAR NIGHTHAWK R7000 Specifications

General

WiFi Technology	802.11ac
WiFi Performance	AC1900 (600 + 1300 Mbps)
WiFi Range	Very large homes
Processor	1GHz Dual Core
Antenna	3 external antennas
Beamforming	Yes
RAM	256MB
Flash Memory	128MB
Dimensions	11.22 x 7.26 x 1.97 in (285 x 184.5 x 50 mm)
Ethernet Ports	5 x 10/100/1000 Mbps Gigabit Ethernet ports (1 WAN & 4 LAN)
USB Ports	1 x USB 3.0, 1 x USB 2.0
Security	WPA2
Weight	1.65 lb (0.75 kg)
