NETGEAR NIGHTHAWK R7000 User Manual

Manage Your Network
125
Nighthawk AC1900 Smart WiFi Router Model R7000
4. Click the ADVANCED tab.
5. For information about the displayed settings, click the Show/Hide Help Center link at the
bottom of the screen.
Display Internet Port Statistics
 To display Internet port statistics:
1. Launch an Internet browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.

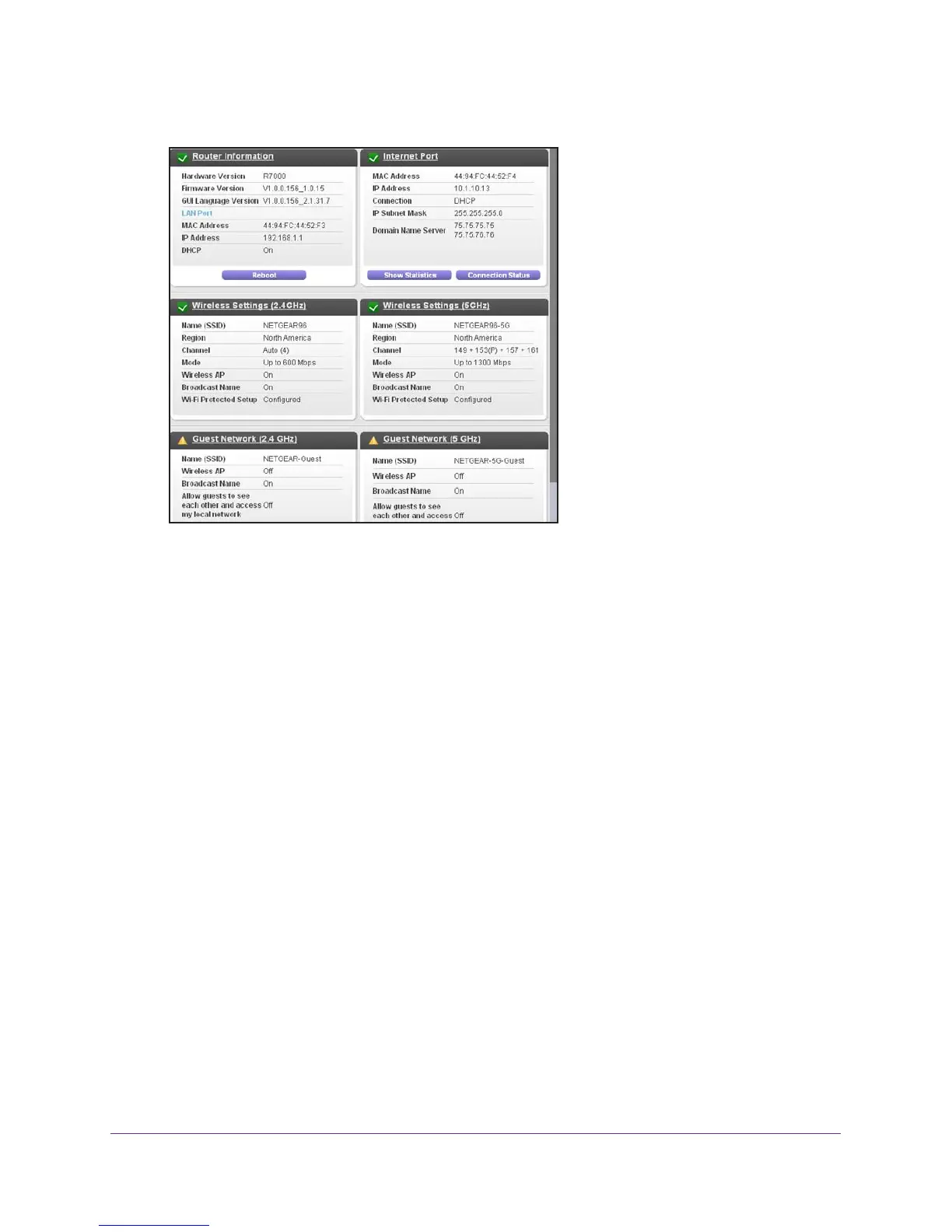

4. The BASIC Home screen displays
5. Click the ADV
ANCED tab.

NETGEAR NIGHTHAWK R7000 Specifications

General

WiFi Technology	802.11ac
WiFi Performance	AC1900 (600 + 1300 Mbps)
WiFi Range	Very large homes
Processor	1GHz Dual Core
Antenna	3 external antennas
Beamforming	Yes
RAM	256MB
Flash Memory	128MB
Dimensions	11.22 x 7.26 x 1.97 in (285 x 184.5 x 50 mm)
Ethernet Ports	5 x 10/100/1000 Mbps Gigabit Ethernet ports (1 WAN & 4 LAN)
USB Ports	1 x USB 3.0, 1 x USB 2.0
Security	WPA2
Weight	1.65 lb (0.75 kg)
