Manage Your Network
127
Nighthawk AC1900 Smart WiFi Router Model R7000
The BASIC Home screen displays.
4. Click the ADV
ANCED tab.

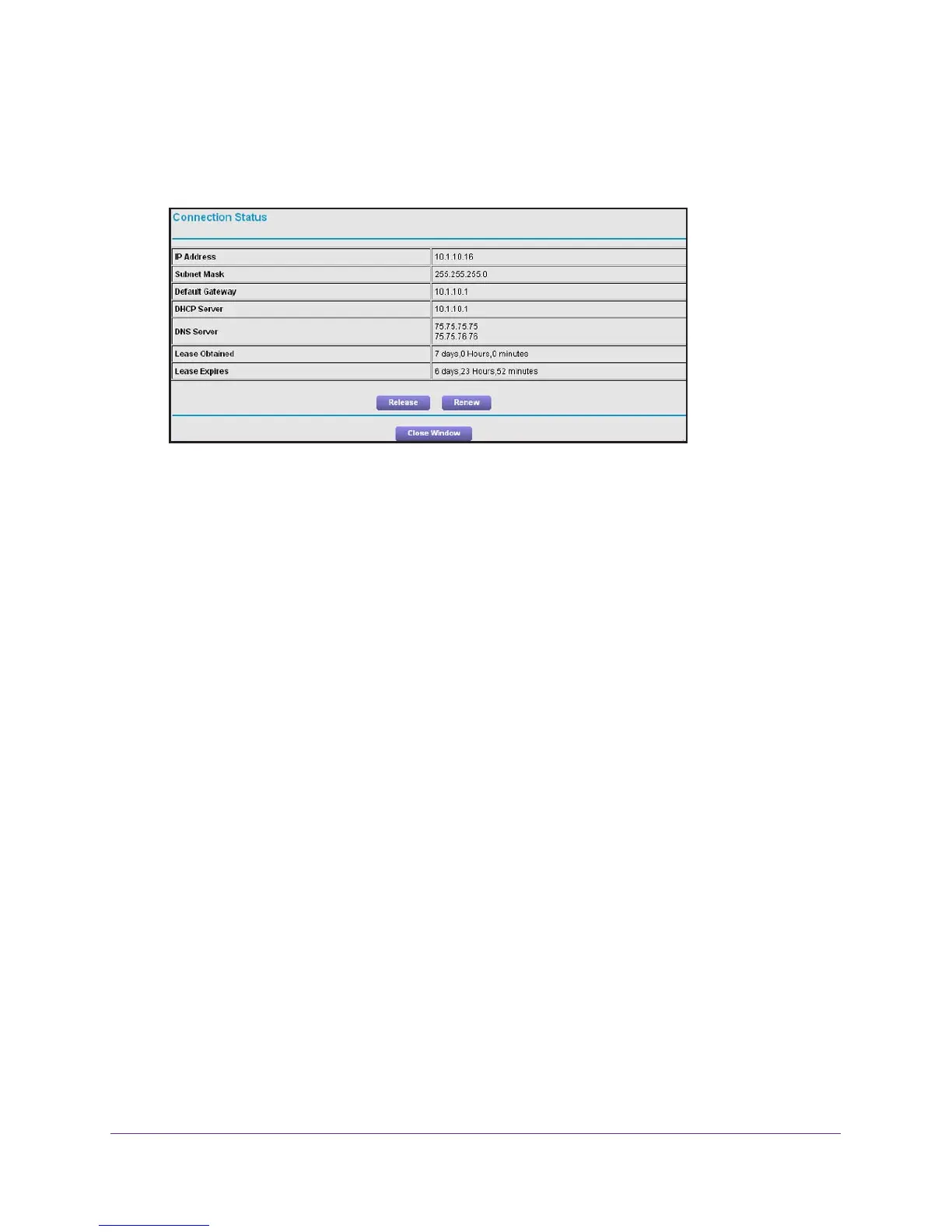

5. In the Internet Port pane, click the Connection Status button.
The following information displays:
• IP Address.
The IP address that is assigned to the router.
• Subnet Mask.
The subnet mask that is assigned to the router.
• Default Gateway.
The IP address for the default gateway that the router
communicates with.
• DHCP Server.
The IP address for the Dynamic Host Configuration Protocol server
that provides the TCP/IP configuration for all the computers that are connected to the
router.
• DNS Server.
The IP address of the Domain Name Service server that provides
translation of network names to IP addresses.
• Lease Obtained.
The date and time when the lease was obtained.
• Lease Expires.
The date and time that the lease expires.
6. T
o return the status of all items to 0, click the Release button.
7. T
o refresh the screen, click the Renew button.
8. T
o exit the screen, click the Close Window button.
View Logs of Router Activity
The log is a detailed record of the websites you have accessed or attempted to access and
other router actions. Up to 256 entries are stored in the log. Log entries display only when
keyword blocking is enabled and no log entries are made for the trusted user
.
To view logs:
1. Launch an Internet browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
