NETGEAR NIGHTHAWK R7000 User Manual

Use the Router as a Media Server
83
Nighthawk AC1900 Smart WiFi Router Model R7000
iPhone or iPad to play music on any AirPlay devices, such as Apple TV or AirPlay-supported
receivers.

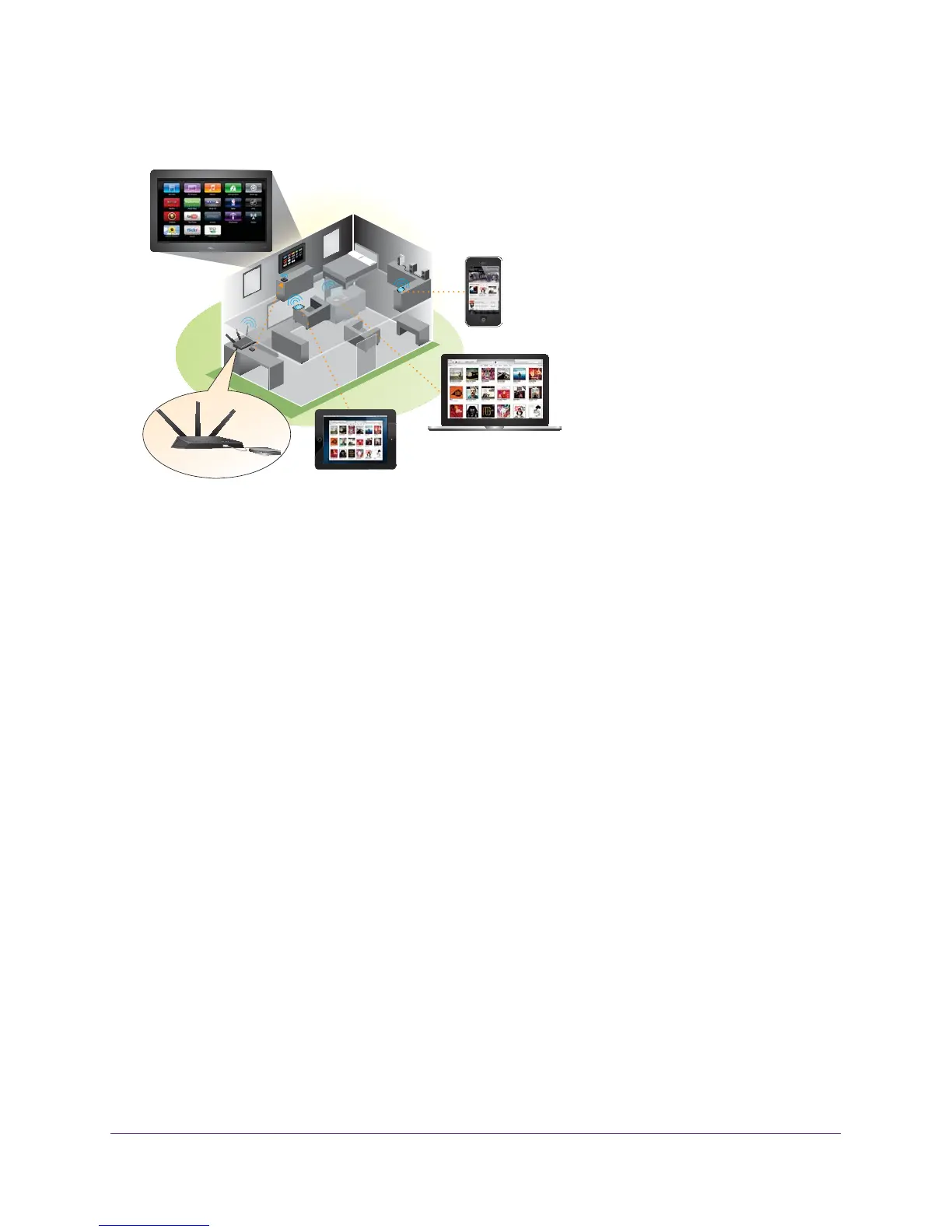

Figure 11. Play music on a USB drive with iTunes
Supported music file formats are MP3, AAC, FLAC, The maximum number of music file
supported is10,000 WAV and WMA3
 To specify iTunes server settings:
1. On your iPhone or iPad, find and connect to the WiFi network.
2. Launch the Remote
App.
3. Click the Add an iT
unes Library button.
A passcode displays.
4. Specify the passcode in the router
.
a. Launch an Internet browser from a computer or wireless device that is connected to
the network.
b. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
c. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.

NETGEAR NIGHTHAWK R7000 Specifications

General

WiFi Technology	802.11ac
WiFi Performance	AC1900 (600 + 1300 Mbps)
WiFi Range	Very large homes
Processor	1GHz Dual Core
Antenna	3 external antennas
Beamforming	Yes
RAM	256MB
Flash Memory	128MB
Dimensions	11.22 x 7.26 x 1.97 in (285 x 184.5 x 50 mm)
Ethernet Ports	5 x 10/100/1000 Mbps Gigabit Ethernet ports (1 WAN & 4 LAN)
USB Ports	1 x USB 3.0, 1 x USB 2.0
Security	WPA2
Weight	1.65 lb (0.75 kg)
