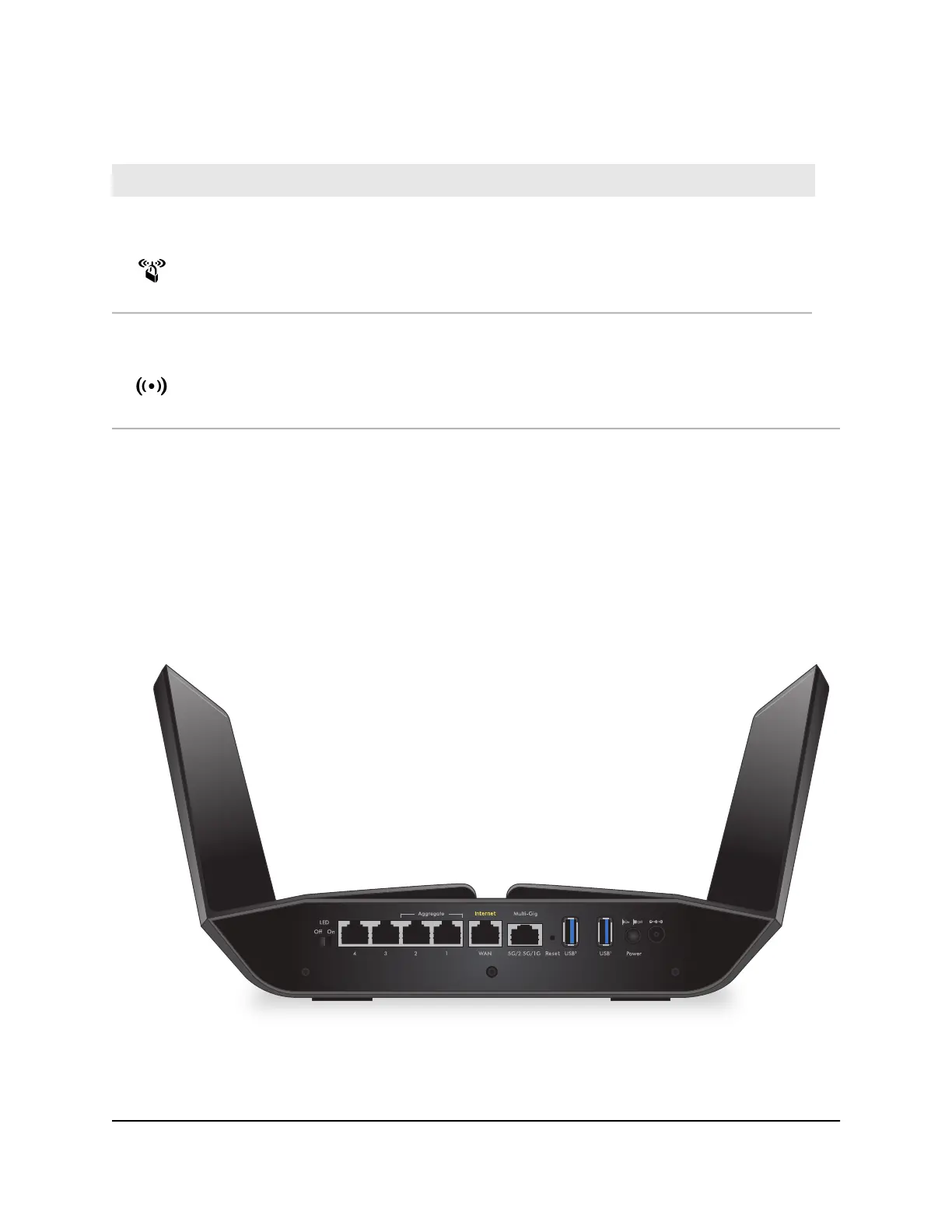

Table 1. LED descriptions (Continued)
DescriptionLED and Button
Pressing the WPS button lets your WPS-enabled device join your router's WiFi
network without typing the WiFi password. The WPS LED blinks white during
the WPS process and then lights solid white when the WPS-enabled device
connects to your router's WiFi network.
WPS LED
Pressing the WiFi button for two seconds turns the 2.4 Ghz and 5 GHz WiFi LEDs
and WiFi radios on and off.
If this LED is lit, the WiFi radios are on. If this LED is off, the WiFi radios are turned
off and you cannot use WiFi to connect to the router.
WiFi LED
Note: If the LED On/Off switch on the rear panel is moved to the Off position, all the
LEDs except the Power LED are turned off.
Rear Panel
The following figure shows the rear panel connectors and buttons.
Figure 3. Rear panel
User Manual13Hardware Setup
