NETGEAR WGT624 User Manual

Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
C-12 Preparing Your Network
202-10090-01, April 2005

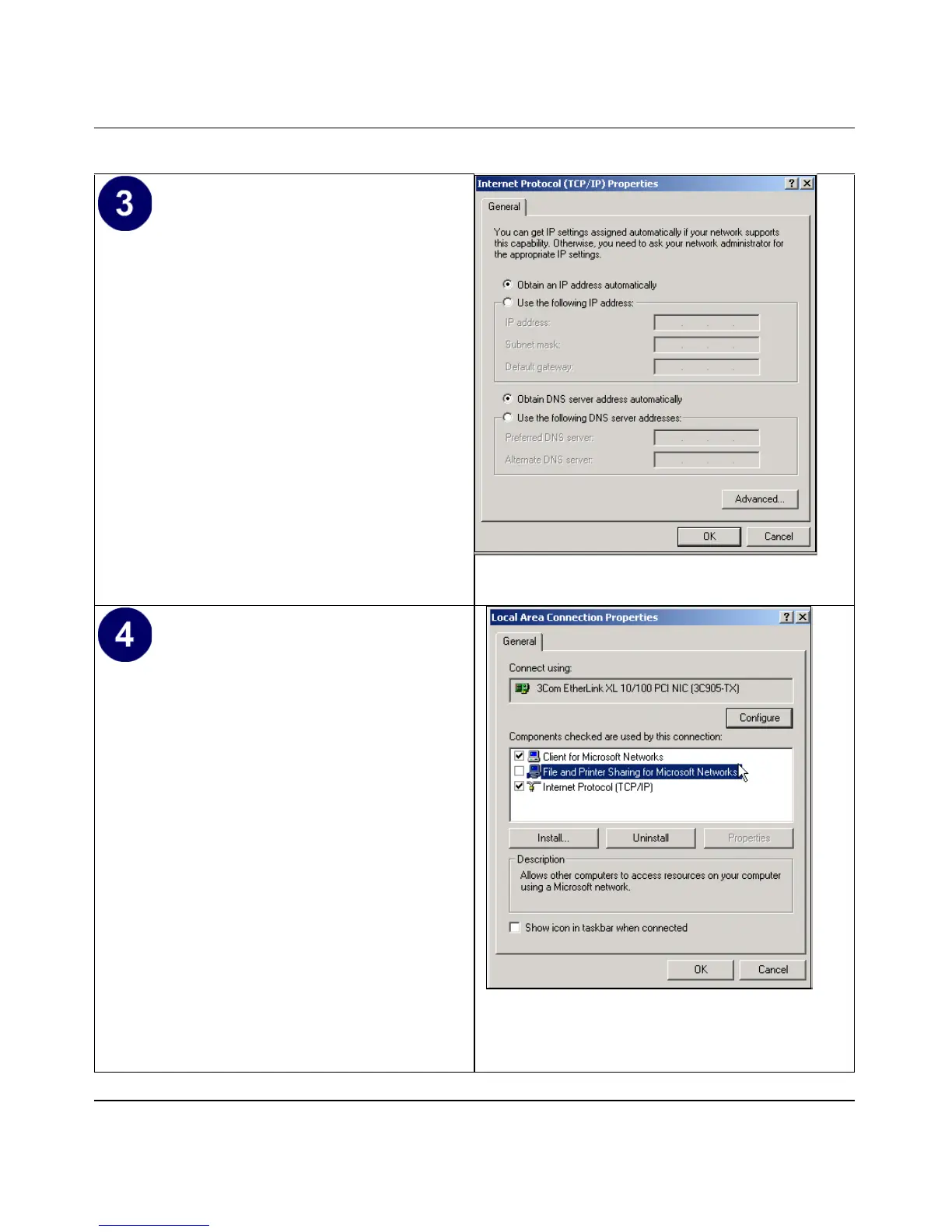

• With Internet Protocol (TCP/IP) selected,
click on Properties to open the Internet
Protocol (TCP/IP) Properties dialogue box.
• Verify that
• Obtain an IP address automatically is
selected.
• Obtain DNS server address
automatically is selected.
• Click OK to return to Local Area
Connection Properties.
• Click OK again to complete the
configuration process for Windows 2000.
Restart the PC.
Repeat these steps for each PC with this version
of Windows on your network.

NETGEAR WGT624 Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x 10/100 Mbps
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Wireless Data Rates	Up to 54 Mbps
Security	WPA, WEP
Firewall	SPI Firewall
Weight	270 g
