Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
Introduction 2-7
202-10090-01, April 2005
The Router’s Rear Panel
The rear panel of the WGT624 v3 wireless router contains the port connections listed below.

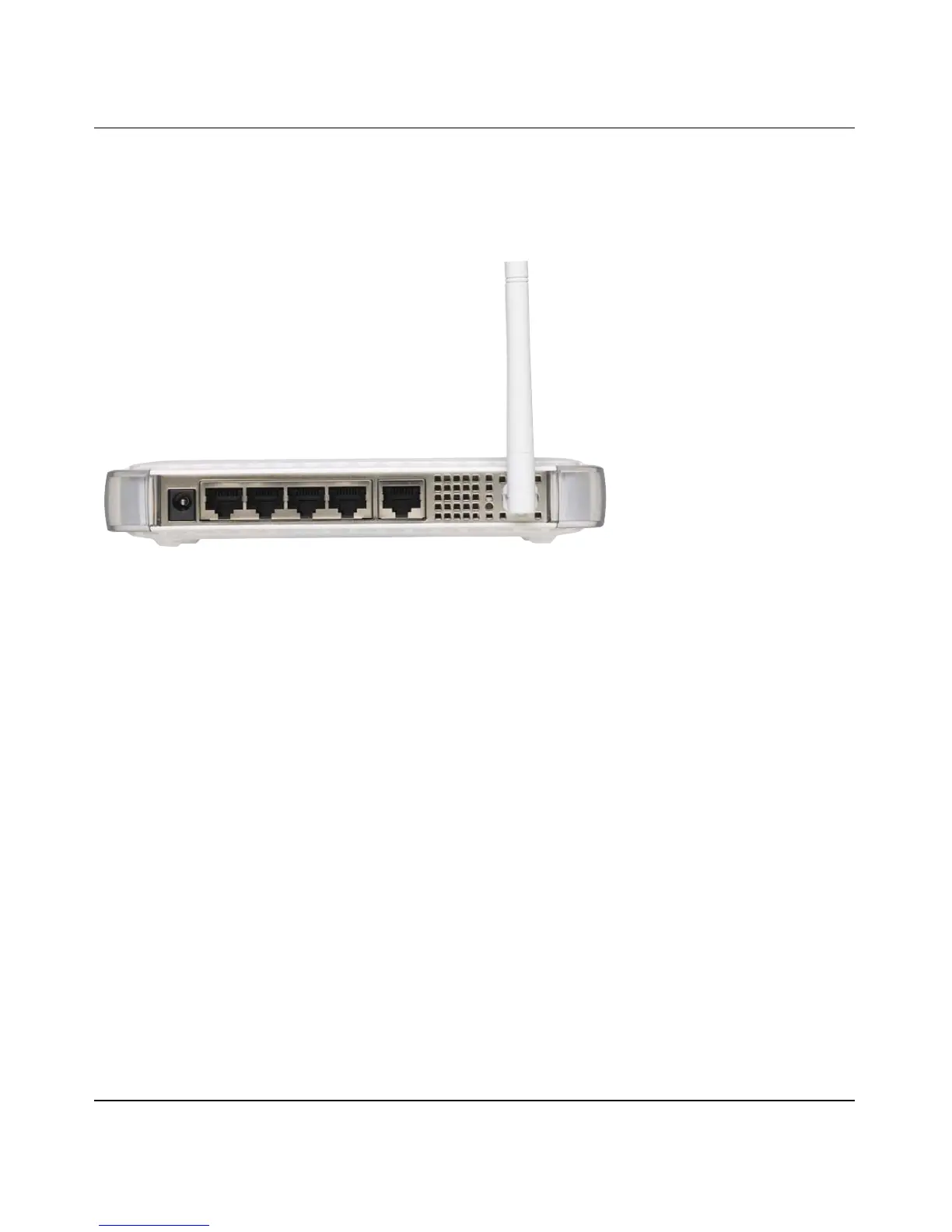

Figure 1-2: WGT624 v3 Rear Panel
Viewed from left to right, the rear panel contains the following features:
• AC power adapter outlet
• Four Local (LAN) 10/100 Mbps Ethernet ports for connecting the router to the local PCs
• Internet (WAN) Ethernet port for connecting the router to a cable or DSL modem
• Factory Default Reset push button
• Wireless antenna
