Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
Preparing Your Network C-17
202-10090-01, April 2005
2. If not already selected, select Built-in Ethernet in the Configure list.
3. If not already selected, Select Using DHCP in the TCP/IP tab.
4. Click Save.
Verifying TCP/IP Properties for Macintosh Computers

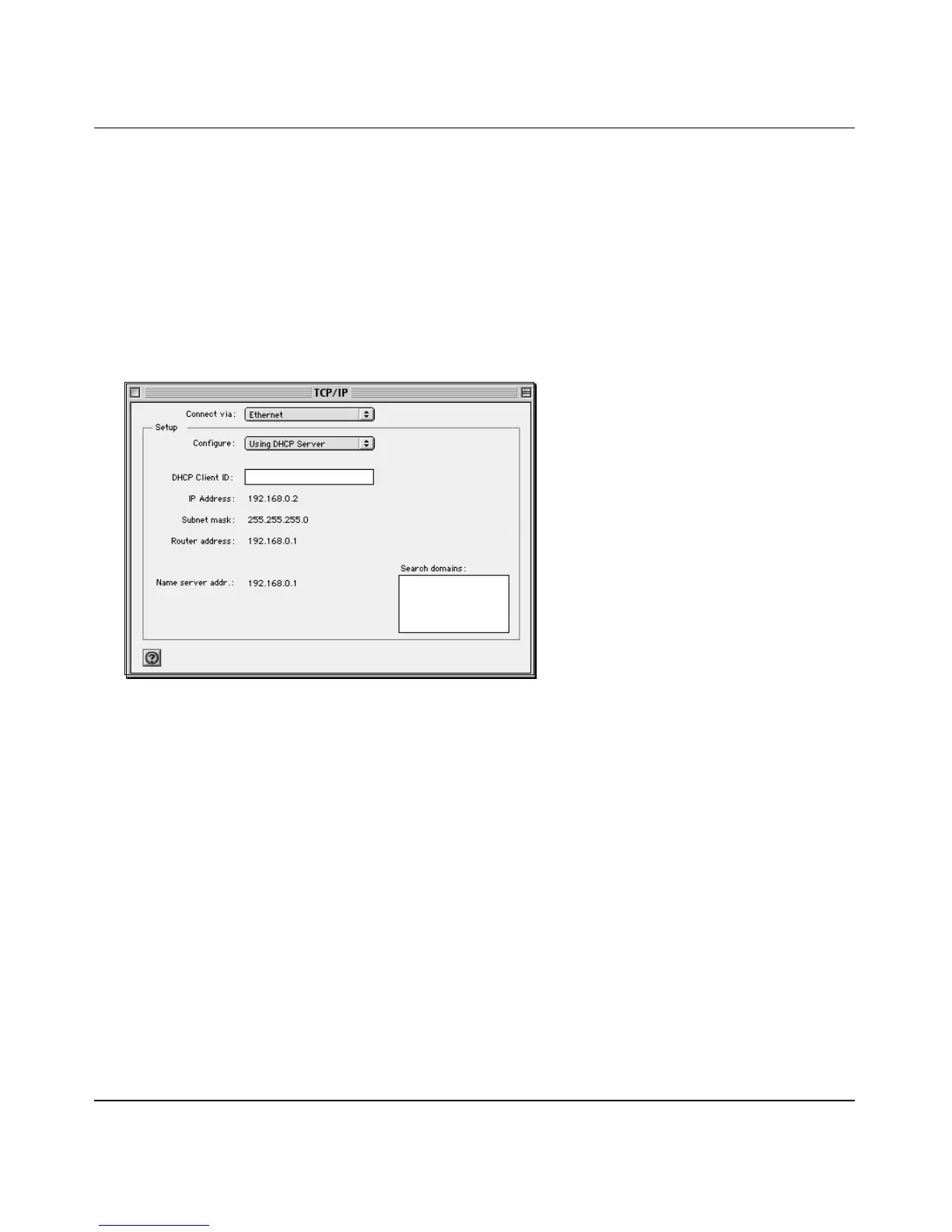

After your Macintosh is configured and has rebooted, you can check the TCP/IP configuration by
returning to the TCP/IP Control Panel. From the Apple menu, select Control Panels, then TCP/IP.
The panel is updated to show your settings, which should match the values below if you are using
the default TCP/IP settings that NETGEAR recommends:
The IP Address is between 192.168.1.2 and 192.168.1.254
The Subnet mask is 255.255.255.0
The Router address is 192.168.1.1
If you do not see these values, you may need to restart your Macintosh or you may need to switch
the “Configure” setting to a different option, then back again to “Using DHCP Server”.

Table of Contents

Other manuals for NETGEAR WGT624

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR WGT624 and is the answer not in the manual?

NETGEAR WGT624 Specifications

General IconGeneral
Wireless Standard802.11g
Frequency Band2.4 GHz
LAN Ports4 x 10/100 Mbps
WAN Port1 x 10/100 Mbps
StandardsIEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Wireless Data RatesUp to 54 Mbps
SecurityWPA, WEP
FirewallSPI Firewall
Weight270 g
